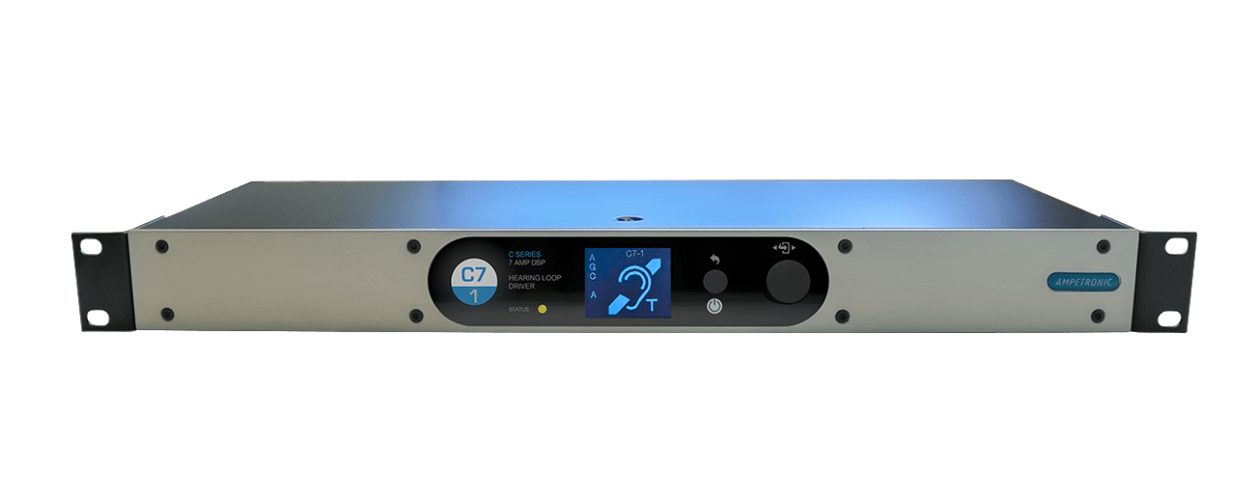

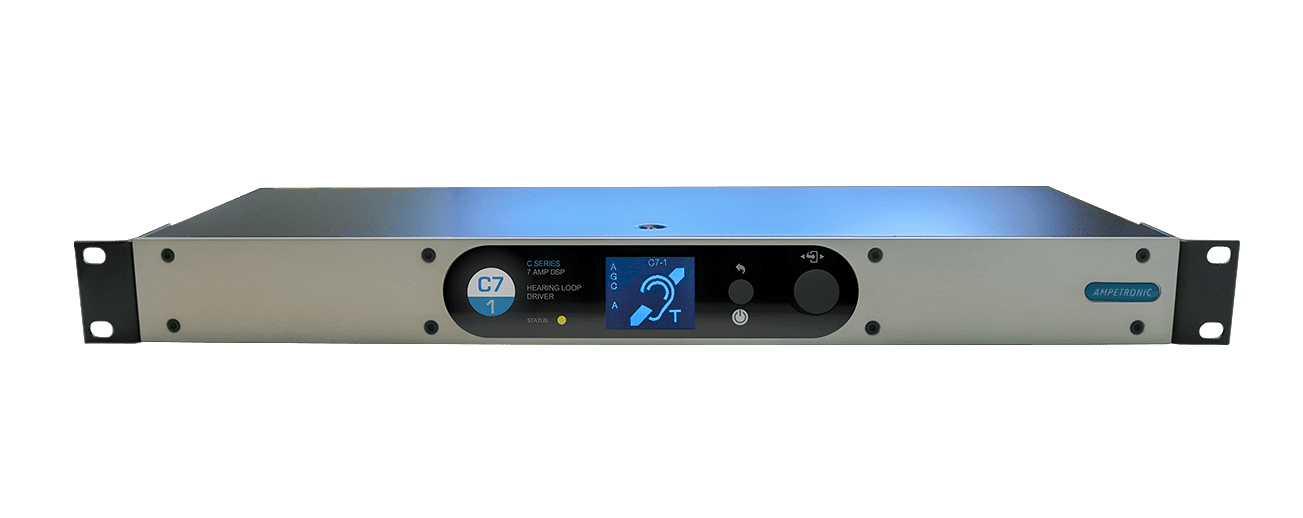

Ampetronic – C7-1 Dante


More details

Similar Products

CTD-4125
  • Crown Audio

CTD-4125

Crown ComTech D Series amplifiers are designed for versatility, flexibility, and ease of installation. With both Dante inputs and outputs, built-in DSP, power sharing, Lo-Z/Hi-Z switching, and a simple to use web configuration interface, ComTech D amplifiers are ideal for meeting the changing demands of diverse installed audio applications. The CTD-4125 delivers 125 watts per channel of legendary Crown amplification when all channels are driven equally. Asymmetrical power sharing enables the four channels to share the full 500W in any ratio, offering unparalleled flexibility. Built-in DSP allows outputs to be tuned specifically for every application and provides the ability to create custom speaker tunings. Factory JBL SpeakerTunings for select JBL models, including Control 400 Series ceiling speakers, are included to simplify the optimization of an all-HARMAN solution. The amplifier can be configured through the intuitive web interface with any computer or tablet and without the need to install proprietary software. It uses HARMAN's HControl protocol to communicate natively with BSS OMNI Processors or AMX MUSE Automation Controllers and includes an easy-to-use API for integration with 3rd-party control systems. This compact 1RU, ½ rack width device can be installed in a rack, under a table, or on a wall using the included mounting hardware.
    Amplifiers
virgilbc
  • Glensound

Glensound – Virgil BC

Virgil was the Roman poet who guided Dante through Hell and Purgatory, the Glensound Virgil is a clever little headphone amplifier for providing crystal clear audio into studio & broadcast headphones.

Packaged in a small & robust format and designed to be permanently mounted in studios wherever a headphone circuit is required, the Virgil provides a simple interface between Dante network audio systems and users headphones.

The Virgil encompasses our unique headphone amplifier circuit which automatically provides the correct output level to match the impedance of the attached headphones (to produce the same volume high impedance headphones require a much greater output level than low impedance).

Virgil receives 2 x audio circuits from a Dante network and routes one to the left and the other to the right channel of the headphone amplifier. A front panel volume control allows the user to adjust the output volume.

Three mounting holes are supplied to enable the Virgil to be mounted underneath a studio desk in a suitable location for the users headphones. Needing just 1 single network cable to carry both power & audio to the Virgil makes installation very simple.

As well as being suitable for low & high impedance headphones our unique headphone amplifier circuit can be connected to both stereo headphones & mono earpieces, making the Virgil suitable for driving television presenters ear pieces.

    Amplifiers
ampetronic-d7-2-dante_800px|ampetronic-d7-2-dante_800px
  • Ampetronic

Ampetronic – D7-2 Dante

The D7-2 Digital Hearing Loop Amplifier represents the global benchmark for digital audio induction loop systems. Featuring all the benefits of the Standard D14-2 driver with added Dante Input for additional Network Audio. The D7-2 Digital Hearing Loop Amplifier represents the global benchmark for digital audio induction loop systems. Featuring all the benefits of the Standard D14-2 driver with added Dante Input for additional Network Audio. The D Series range consists of 4 class 'D' drivers (3 dual loop output and 1 single output models); meaning a 60%+ increase in energy efficiency over existing solutions. Drivers feature capacitive touch front panels with intuitive menus, built in test signals, and are fully networkable with a Wi-Fi accessible standard browser based control panel for remote set-up, monitoring and email alerts. The D7-2 Dante features 7 Amps per loop output respectively plus ample voltage headroom, making it the most flexible solution on the market, suitable for a huge range of applications. In another first for high-power Class D Induction Loop drivers, installation can be performed with total confidence, as unique multi-stage filtering ensures compatibility with both other system equipment and global EMC regulations. The D Series also boasts Dual slope Metal Loss Control that caters for a wide range of metal loss frequency characteristics. Features
  • Dante Input for additional Network Audio
  • Single or dual output options. Dual outputs featuring accurate and stable 90° phase shift
  • Networkable with remote browser interface
  • Digital display & intuitive 'touch' menu system - 3 modes; Main, Status & Quick
  • Highly energy efficient Class-D amplifiers with low heat dissipation
  • Up to 2 x 650m2 Perimeter Loops area coverage
  • Up to 3,300m2 MultiLoop™ Low Loss area coverage
  • Compact 1U rack mount unit with internal transformer for simple rack installation
  • Optimised for speech frequencies with unmatched intelligibility & capable of high quality musical reproduction
  • AGC & Dual Slope MLC
  • Active status monitoring & remote fault reporting via email
  • Data compliant with: IEC 62489-1 Standard
Applications include
  • Lecture Theatres & Conference facilities
  • Stadia, Sports Halls, Cinemas & Theatres
  • Courts Rooms, Airports & Railway Stations
    Amplifiers
