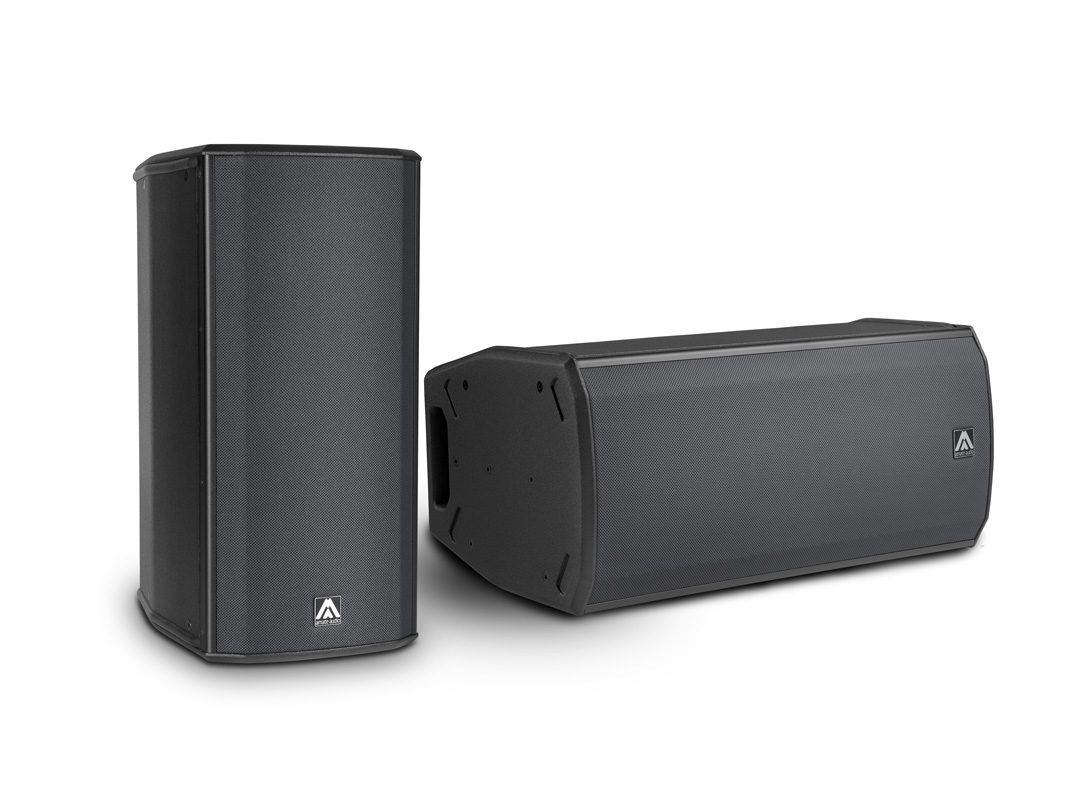

The X102FD has been developed to offer a powerful and highly efficient point source alternative to line arrays, in medium and smaller size application environments. Capable of power and performance far in excess of its compact form, the V-shaped geometry cabinet, features a symmetrical dual 10” LF driver arrangement with a 3″ titanium diaphragm, 1.4″neodymium HF driver and aluminium rotatable horn. With an Active+ integrated power and DSP control platform producing 3000 W of 2-way amplification, the X102FD is capable of 136 dB SPL continuous output.
The X102FD is able to be deployed in both vertically and horizontally, due to its rotatable horn with a simple ‘no tools required’ pull, turn and release mechanism. In vertical FOH applications the horn provides (HxV) 80 x 60 dispersion (in its default position). In the horizontal plane – for applications such as front-fills within a large-scale line array system, or close to ceiling hanging in an auditorium – quick rotation of the horn maintains (HxV) 80 x 60 dispersion. Likewise, (HxV) 60 x 80 coverage can be obtained in either plane.
Unique to Active+ is the rear-mounted rapid operation 3.5” TFT colour touchscreen GUI that provides for system configuration of individual cabinets prior to stacking or rigging. This combines user-configurable system management parameters and powerful R&D developed application-specific system pre-sets that provide for near-instantaneous setup of the most common cabinet configurations in the most regularly encountered applications. Remote Ethernet or wi-fi control is enabled via Amate Audio’s DSPStudio™ application. Active+ also provides Dante™ audio networking on the X102FD, via the two rear-panel Ethernet ports.
