The College of Music at University of North Texas, Large Installation
University of North Texas, Denton, TX United States

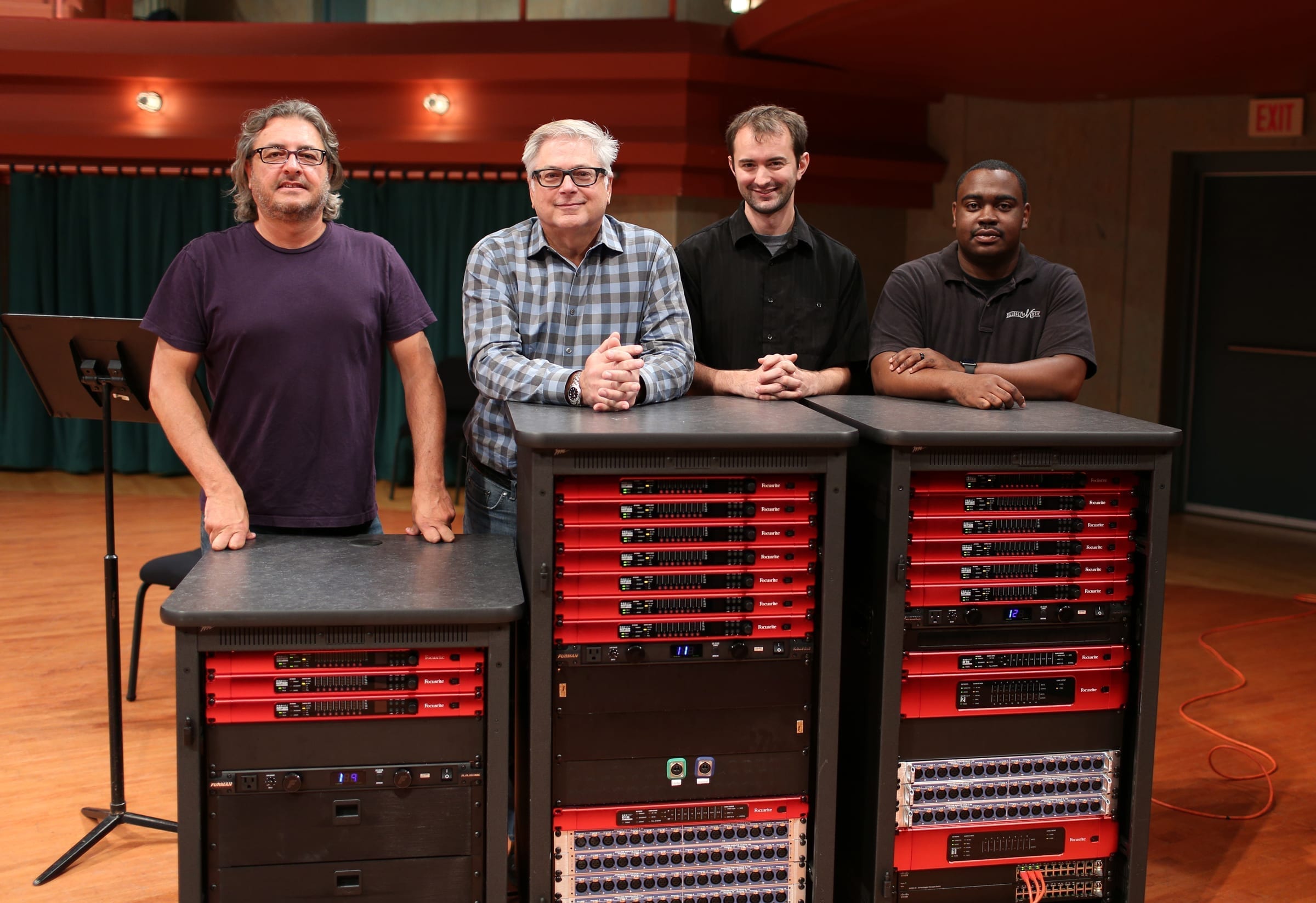

The College of Music at the University of North Texas recently completed a large installation of RedNet components from Focusrite. A total of 44 RedNet units, which act as interfaces for the Dante™ Ethernet-based audio-over-IP network infrastructure, now connect the school’s two main performance halls, each of which has its own recording control room, and a portable jazz workshop with a total of 64 I/O.
Seven RedNet 1 and seven RedNet 2 units provide the I/O interfaces; six RedNet D16 AES interfaces offer 16 channels of AES/EBU connectivity to and from a Dante audio network; a pair of RedNet D64Rs provides the link between the Dante network and any MADI / AES10 setup; four RedNet HD32R units are the interfaces that allow Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system; 17 RedNet MP8R units are 8-channel remote-controlled microphone preamplifiers and A/D-conversion for the Dante network; and a RedNet 3 connects the digital audio systems and components to the RedNet network, with up to 32 inputs and outputs and full software remote control. The system was sold and designed by A/V design and installation firmAudio DAWg (Spunky Brunone, owner) of Irving, Texas. The system installation at the University, located in Denton, Texas, took place in August of this year.
“We have two buildings and multiple spaces that have to be connected, as well as new equipment that was part of the upgrade, such as a Yamaha CL5 console for FOH in one of the halls,” he explains. “The jazz program has been bringing in more and bigger-name guest artists, and that’s been driving up our channel count. So we needed a good connectivity solution that would encompass the entire facility, in two buildings, and increase the number of channels we had available. The combination of RedNet and Dante did exactly that.”
Spunky Brunone says he’s been increasingly seeing the RedNet/Dante combination as the perfect solution for exactly this kind of complex, multi-space situation. “Dante offers schools like the University of North Texas a way to move audio around a big campus efficiently and cost-effectively, and RedNet has the interfaces for any type of connectivity they need. It’s a great combination.”
