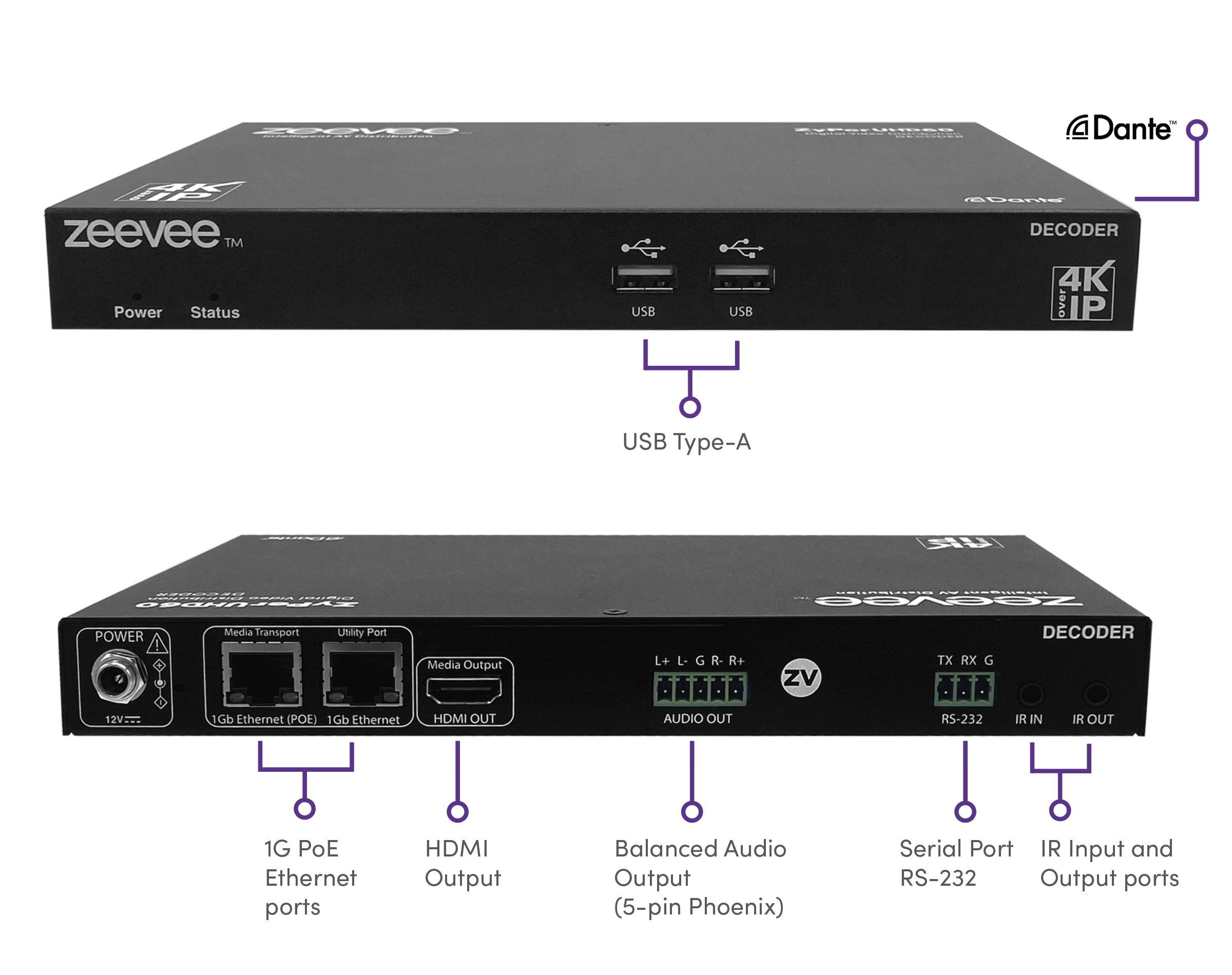

ZUHD60-2DA is an HDMI 2.0a Dante-enabled AVoIP Decoder that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded audio and HDCP 2.3 encryption. This AVoIP decoder has dual 1G LAN ports and a 5-pin Phoenix/Euroblock connector for analog audio out. Other features include USB, IR, and RS-232 (via 3-pin Phoenix/Euroblock).
You can add a wide variety of optional I/O cards to the modular Penta 721s and Penta 720. Once you start mixing and matching up to 8 card slots, you will find that the system is extremely flexible and therefore may be tailored to fit any audio-routing and/or conversion task imaginable.
ModularDual MADI Module
2 x MADI I/O
2 x 64 channels
Choice of physical interface
Select type of SFP module
Optical, MM or SM
Coax
Redundant mode
Auto switch-over in case of signal loss
Can operate as dual HotLink
2 x 128 ch.
