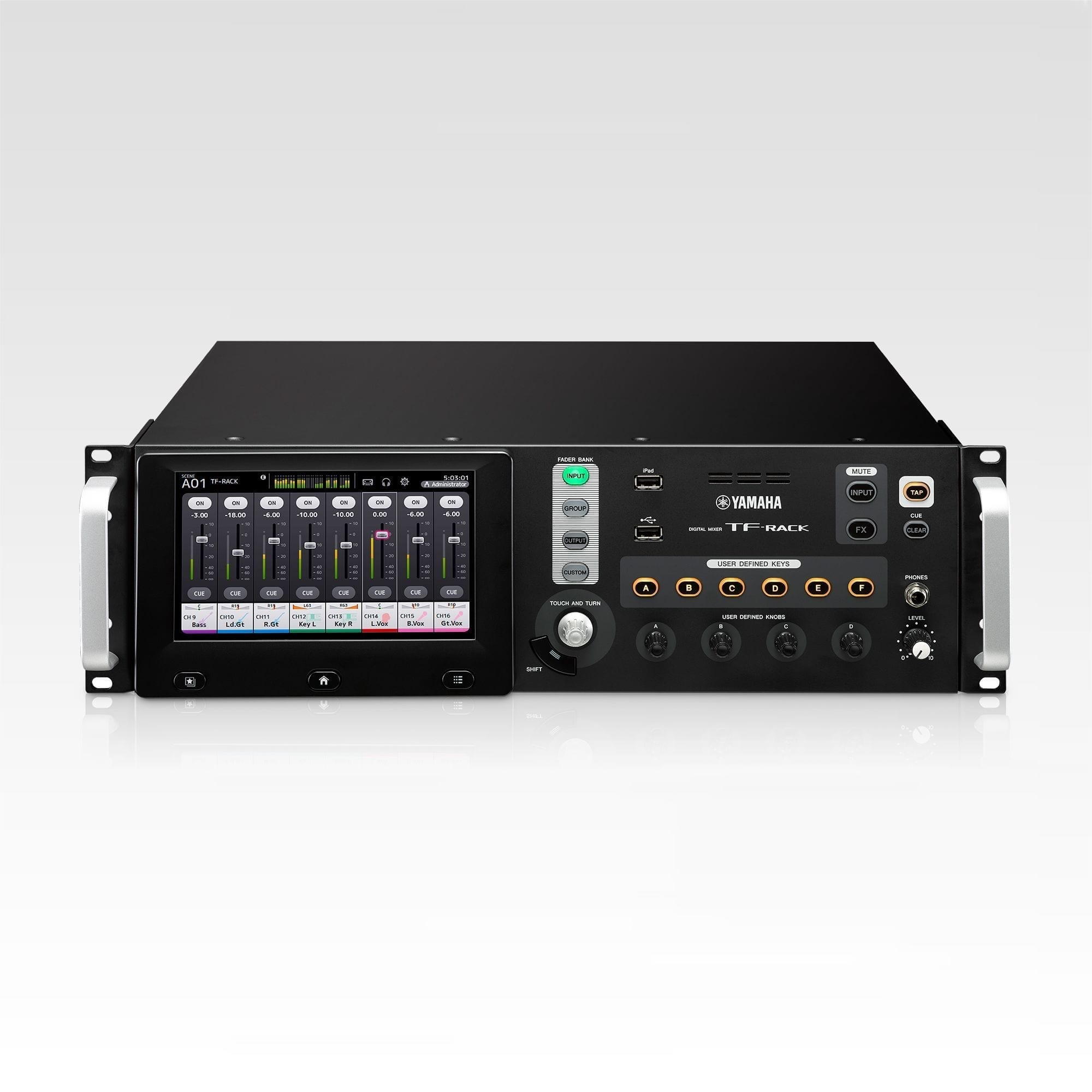

Yamaha – TF-RACK

I/O Interfaces

More details

Similar Products

musicrown-df16-16mne|musicrown-df16-16mne
  • Musicrown

Musicrown – DF16.16MNE

Musicrown's DF16.16MNE is a network digital matrix processor. Musicrown's DF16.16MNE is a network digital matrix processor.
  • 32 bit SHARC DSP, 96kHz sampling rate, 24 bit AD/DA convert.
  • 48x48 channels core matrix design, including 16 local analog input channels, 16 local analog output channels, 32 Dante network input channels and 32 Dante network output channels.
  • Fully supports scalable DANTE digital network audio card and AEC automatic echo noise cancellation card, the users can freely configure and choose according to their requirements.
  • Dante digital network audio card configuration is a double standard network interface, which fully supports the function of unite switching and hot backup, hardware system can distinguish automatically, can use immediately when it inserts. Software internal and local analog signal can realize fully sound mixing matrix processing. Each channel has independent DSP processing function.
  • Optional AEC automatic echo cancellation card has powerful automatic echo cancellation function, automatic feedback cancellation and system environmental noise filtering. Effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminate environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan. Making sure any environment have a noise-free, high definition audio and video system for many conference applications.
  • Each analog input channels with +48V phantom power, MIC/LINK input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, L-SHELF, H-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All high cut, low cut type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all output channels.
  • Pre settings can copy for every single channel, every channel can do link adjust.
  • Inside single generator(pink, white noise and 20-20K sine wave, amplitude adjustable).
  • Front panel has level indicator for input/output, USB port, standard Ethernet remote control RJ45 port and RS232&485 at rear panel. IP and ID address can set, network and unite management can realize maximal 255 units link control, but also has remote visit password protected function, make the system more stable and safe.
  • Design has thorough control code, fully support the third-party centre control and management, including all volume control, preset scene recall, parameter inquire and return code, current level return display, every input and output channels control. Etc.
  • 12 user presets, device and each preset can be save and recall alone. System can chose work at immediate storage status, adjusted parameter can store at preset immediately.
    I/O Interfaces
See the product
DigiIP 5100 Series Wall Plate AV over IP Encoder w/ PoE
  • Liberty Cable

DigiIP 5100 Series Wall Plate

  • Fully routable 2 Gang 2 input Wall Plate Format encoder over 1Gbps network
  • Primary inputs include HDMI & USB-C. Input labeled "USB-C" is a full featured input supporting video via ALT-DP, USB data, and power when optional power supply is used. The USB-C port labeled "USB Host" is for USB data only and is to be used with the HDMI input
  • Simple configuration using Arranger software
  • Supports 4K60 4:4:4 and 7.1 Audio
  • HDCP 2.2 Compliant
  • USB C port supports 2 lane ALT-DP Audio/Video w/USB data simultaneously, and can offer device charging when using optional power supply PS-20V-6A
  • Dual Power, PoE or DC power input. Optional second power supply PS-20V-6A can be used to inject device charging power to the USB-C port
  • Fully routable/switchable USB Supports Isochronous data up to 190Mbps
  • Dante audio support
  • TAA Compliant
    I/O Interfaces
See the product
redx-poe60dd
  • Redx

Redx – PoE25DD

The PoE25DD is a 20w/8 ohm output audio power module. It adopts the latest PoE technology standard and can solve power supply and Dante digital audio signal transmission and control with only one network cable. The PoE25DD is a 20w/8 ohm output audio power module. It adopts the latest PoE technology standard and can solve power supply and Dante digital audio signal transmission and control with only one network cable.
  • Integration of network PoE power supply and Dante audio data transmission, simplifying cable layout and compliance with Ethernet engineering specifications;
  • Audio transmission realizes digitization, networking, and system expansion;
  • distributed digital audio systems: In large audio systems with multiple input and output devices, the audio devices are connected decentralized, routing and signal distribution through software;
  • Through the Dante interface, it is ensured that the network audio data has excellent delay indicators, and the number of audio channels carried by a single network cable terminal reaches 64 channels of input and 64 channels of output;
  • Dante Controller software allows easy network-wide Dante device discovery and full network audio routing configuration.
  • The PoE network cabling uses an Ethernet cable to carry 48V DC power. It has no restrictions on high-voltage AC wiring and better meets site safety and fire protection specifications. It can be widely used in ballrooms/function rooms, bars/restaurants, classrooms, conference rooms, chapels, theme parks, and shopping malls.
