Product Information

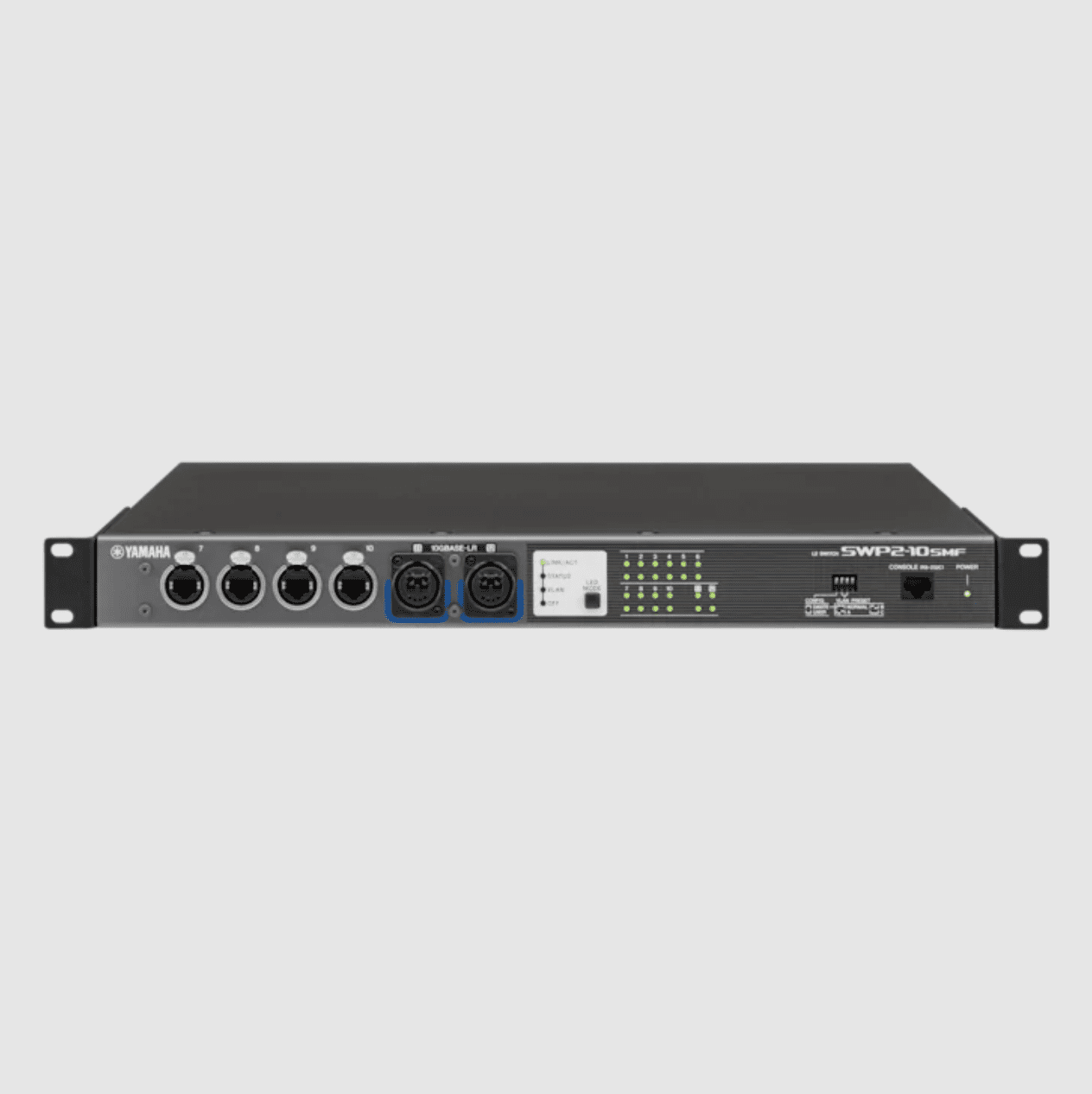

The SWP2 series L2 switch is ideal for Dante 96kHz network systems. It features 10 etherCON ports and two single mode fiber opticalCON ports.
Specifications
- Dante Ch: 0x0
Similar Products
- Neutrik
Neutrik – XIRIUM PRO TX
This product has reached end of line and is discontinued.
This XIRIUM PRO NXPTX2 transmitter and the NXPRX2 receiver work together to provide digital transmission facilitating the highest possible sound quality, reliability, and outstanding performance in one unique solution.
With XIRIUM PRO Neutrik introduces a new, innovative product, allowing for easy adoption of DiWA technology. With just two devices, namely this transmitter (TX) and a receiver (RX), audio transmission can be established quickly, and more cost effectively then using traditional audio cables or other wireless systems. Engineers, artists, and project designers can now think beyond the physical limitations of the traditional audio cable. Equipment such as loudspeakers, amplifiers, and mixing consoles can now be positioned for optimal audio performance and what makes the most acoustic sense allowing artistry and sonic performance to take priority over venue logistics.
- I/O Interfaces
- Neutrik
Neutrik – NXP-TM-DANTE
This product has reached End of Line and is discontinued.
The NXP-TM-DANTE module allows the XIRIUM PRO NXP2TX base to send the signal from a Dante network wirelessly to an RX base, providing the highest possible sound quality, reliability, and outstanding performance in one unique solution.
With XIRIUM PRO Neutrik introduces a new, innovative product, allowing for easy adoption of DiWA technology. With just two devices, namely the transmitter (TX) and the receiver (RX), audio transmission can be established quickly, and more cost effectively then using traditional audio cables or other wireless systems. Engineers, artists, and project designers can now think beyond the physical limitations of the traditional audio cable. Equipment such as loudspeakers, amplifiers, and mixing consoles can now be positioned for optimal audio performance and what makes the most acoustic sense allowing artistry and sonic performance to take priority over venue logistics.
XIRIUM PRO system offers a combination of 7 different input and output audio modules and 2 base stations, including this Dante transmitter module and a Dante receiver module. All the modules contain a rechargeable lithiumIon battery and can be operated either on battery power or on direct mains power.
- I/O Interfaces
- Focusrite
Focusrite – RedNet A16R
RedNet A16R expands Focusrite’s range of 1U Dante interfaces with network and power supply redundancy, providing 16 channels of analogue input and output with high quality A-D and D-A digital conversion at up to 119dB dynamic range, plus two channels of AES/EBU digital I/O, to and from the Dante network.
RedNet A16R expands Focusrite’s range of 1U Dante interfaces with network and power supply redundancy, providing 16 channels of analogue input and output with high quality A-D and D-A digital conversion at up to 119dB dynamic range, plus two channels of AES/EBU digital I/O, to and from the Dante network.
RedNet A16R provides conversion at standard rates – 44.1, 48, 88.2, 96, 176.4 and 192kHz at 24-bit resolution – with pull-up/down capability. Electronically-balanced analogue audio I/O is provided on DB25 connectors wired to AES59 specifications, and internal signals are balanced throughout. Inputs and outputs may be configured for either +18dBu or +24dBu = 0dBFS signal levels. Two additional channels of AES/EBU I/O with sample rate conversion are provided on XLR connectors. Sample rates and operating levels are selected remotely from software on the host computer. The clock source for the unit may be internal, or external via Word Clock or DARS (the latter via the XLR input). RedNet A16R also outputs Word Clock.
RedNet A16R features power and network redundancy, with two separate universal (100–240V) PSUs including IEC connectors with retaining clips, plus dual network interfaces on locking etherCON connectors, which can be set remotely to Redundant or Switched (daisy-chain) mode.
- 16 channels of high-quality line-level analogue I/O
- 24-bit precision Focusrite conversion up to 192kHz
- 119dB dynamic range, flat from 20Hz – 20kHz, +/-0.15dB
- Internally balanced throughout
- Dante-based remote-controlled audio-over-IP connectivity
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock I/O and DARS for increased flexibility plus an additional two channels of AES/EBU I/O
- Analogue I/O to AES59 standard on DB25 connectors
- Comprehensive front-panel indicators
- Software-based routing and control – no hardware patching required
- I/O Interfaces
- Dante Ch: 18x18
- 24-bit
