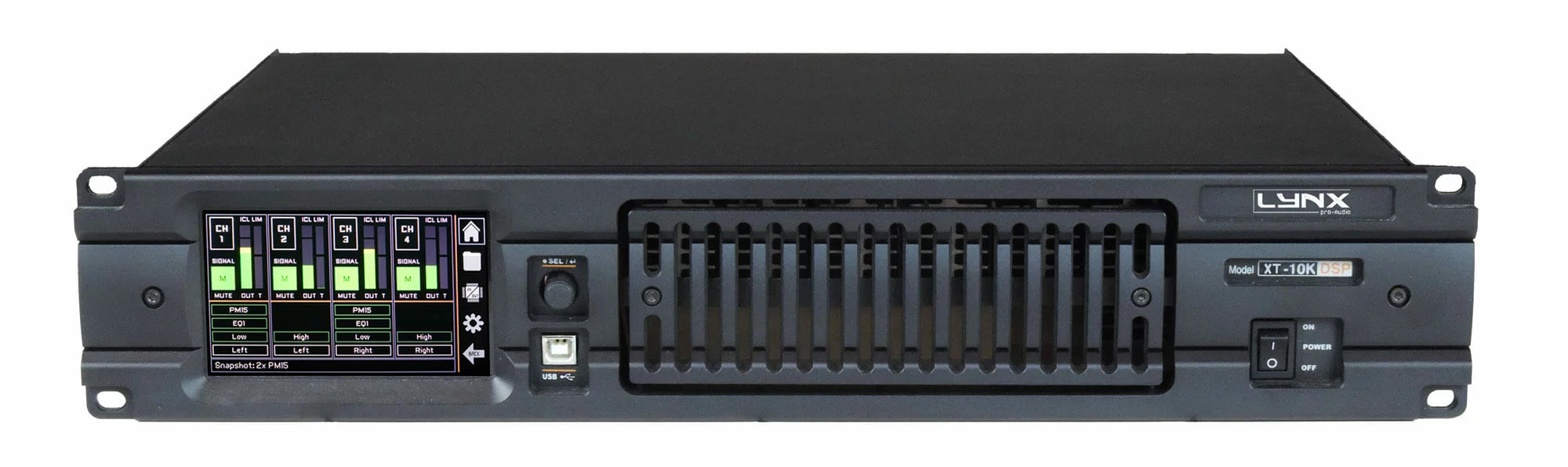

XT-10K

Amplifiers

More Details

Similar Products

ampetronic-d10-2-dante_800px
  • Ampetronic

Ampetronic – D10-2 Dante

The D10-2 Dante digital amplifier is a 10 Amp dual output class 'D' driver; meaning a 60%+ increase in energy efficiency over existing solutions.  The D Series represents the global benchmark for digital audio hearing loop systems. The compact, elegant and sturdy units not only feature digital signal processing and networking functionality, but are also the most versatile and powerful solution available. The D10-2 Dante digital amplifier is a 10 Amp dual output class 'D' driver; meaning a 60%+ increase in energy efficiency over existing solutions. D Series drivers feature capacitive touch front panels with intuitive menus, built in test signals, and are fully networkable with a Wi-Fi accessible standard browser based control panel for remote set-up, monitoring and email alerts. Dante versions also feature a Dante specific RJ45 input for plug and play Dante network audio. The D10-2 Dante features 10 Amps per loop output plus ample voltage headroom, making it the most flexible solution on the market, suitable for a huge range of applications. The added power of the D10-2 Dante provides a solution for installations in environments containing very high levels of metal, previously not possible without the use of combiners. In another first for high-power Class D Induction Loop drivers, installation can be performed with total confidence, as unique multi-stage filtering ensures compatibility with both other system equipment and global EMC regulations. The D10-2 Dante also boasts Dual slope Metal Loss Control that caters for a wide range of metal loss frequency characteristics. Features
  • Dante input for network audio
  • Drives 2 output channels at 10ARMS each, featuring accurate and stable 90° phase shift
  • Networkable with remote browser interface
  • Digital display & intuitive 'touch' menu system
  • 3 modes; Main, Status & Quick
  • Highly energy efficient Class-D amplifier with low heat dissipation
  • Up to 2 x 1,000m2 Perimeter Loops area coverage
  • Up to 3,300m2 MultiLoop™ Low Loss area coverage
  • Compact 1U rack mount unit with internal transformer for simple rack installation
  • Optimised for speech frequencies with unmatched intelligibility & capable of high quality musical reproduction
  • AGC & Dual Slope MLC
  • Active status monitoring & remote fault reporting via email
  • Data compliant with: IEC 62489-1 Standard
Applications include
  • Lecture Theatres & Conference facilities
  • Stadia, Sports Halls, Cinemas & Theatres
  • Courts Rooms, Airports & Railway Stations
    Amplifiers
See the product
bose-powershare-404d
  • Bose Professional

Bose – PowerShare PS404D

PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven PowerMatch line — now with added flexibility. Using innovative PowerShare technology, the amp shares power across all output channels and delivers 400 watts for installed applications.  Put the power where you need it. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven PowerMatch line — now with added flexibility. Using innovative PowerShare technology, the amp shares power across all output channels and delivers 400 watts for installed applications. This means you can distribute the total 400 watts asymmetrically across all outputs or use any individual output to deliver full power. And with support for both low- and high-impedance loads up to 100V, it’s easy to adapt PowerShare amplifiers to a wide range of applications. ControlSpace Designer software allows for Ethernet-based configuration and quick setup of external control options. With onboard Dante® audio networking, you have the flexibility to place PowerShare amplifiers away from source locations and closer to loudspeakers. This unique set of features and technologies makes PowerShare one of the most versatile, high-performance amplifiers available today. Features
  • PowerShare Technology Distribute the total 400 watts asymmetrically across all outputs using patented PowerShare technology, which allows each output to deliver full power. Instead of selecting amplifier power based on the needs of the largest zone, you now have the freedom to use total amplifier power in any application. This enables more flexibility during the initial design, or later on-site when making unplanned changes that take advantage of surplus power.
  • Load-independent Outputs Configure any channel for low-impedance (4-8 Ω) or high-impedance (70/100V) applications without bridging or using jumpers.
  • Integrated Dante Audio Networking Support four audio input channels from a Dante network and mix onboard analog inputs with digital Dante inputs as selected in ControlSpace Designer software.
  • Dual Feedback Loop System Improve performance and reliability. The Dual Feedback Loop system, inherited from the field-proven Bose PowerMatch amplifier line, allows for continuous monitoring and control of both the current and voltage delivered to each output load. This combination provides improved linearity and lower distortion while protecting loudspeakers.
  • ControlSpace Networking Configure using ControlSpace Designer software for inclusion into larger networked audio systems where end-user controllers and scheduling events can control amplifier parameters.
  • Integrated Loudspeaker Processing Adjust various parameters using ControlSpace Designer software: nine-band PEQs, matrix mixing, crossover, limiters, delay, mute/output polarity, and more.
  • Auto-standby Save power — PowerShare amplifiers can be configured to automatically enter standby mode when the audio signal falls below a set threshold, then wake when audio returns.
Applications
  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues
    Amplifiers
See the product
ashly-nXe-4004_600px
  • Ashly Audio

Ashly – nXe4004bd

The nXe4004bd unit is a 4 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 400W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors is Neutrik® XLR/TRS combo jack and Euroblock, while output connectors is Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
See the product
