Product Information
DANTE-EQUIPPED 4-CHANNEL DSP POWER AMPLIFIER
- 16000 W Total Continuous Power
- Dante Audio Network
- On-board Speaker Presets Library
- RDNet Networked Management
Specifications
- Dante Ch: 32x32
- Bit Depth: 32-bit
- Sample Rate: 96kHz

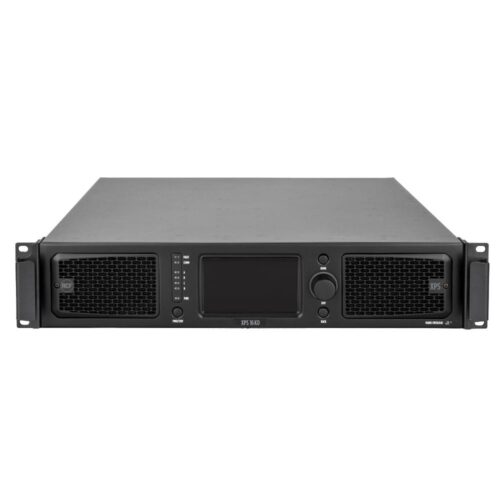

XPS 16KD
Similar Products
- Marani
Marani – MDA4-1000M
MDA4-1000M is designed to meet the most demanding portable and fixed installation sound systems, providing a full set of value added features such as efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software.
MDA4-1000M is designed to meet the most demanding portable and fixed installation sound systems, providing a full set of value added features such as efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software. The 4 output stages use the well-proven Pascal Class D SA-2 module, obtaining ultra low distortion, high efficiency and also equipped with a full set of circuit protections. MDA4-1000M is also a capable and sophisticated loudspeaker processor, with powerful M716 DSP running 96 kHz / 24 bit and high performance 24bit AD/DA Converters. It offers 4 channels of slope up to 48dB/Oct IIR HP/LP crossover filters, or up to 512 taps FIR filters[FIR coefficients can be imported as .txt file from external application] , RMS compressor, parametric Eqs , alignment delay and white/pink noise internal generator, everything needed to optimize a loudspeaker system. A 12dB headroom process is available.
- Amplifiers
- Dante Ch: 4x4
- 24-bit
- Glensound
Glensound – VIRGIL
Packaged in a small & robust format and designed to be permanently mounted in studios wherever a headphone circuit is required, the Virgil provides a simple interface between Dante network audio systems and users headphones.
Virgil was the Roman poet who guided Dante through Hell and Purgatory, the Glensound Virgil is a clever little headphone amplifier for providing crystal clear audio into studio & broadcast headphones.
Packaged in a small & robust format and designed to be permanently mounted in studios wherever a headphone circuit is required, the Virgil provides a simple interface between Dante network audio systems and users headphones.
The Virgil encompasses our unique headphone amplifier circuit which automatically provides the correct output level to match the impedance of the attached headphones (to produce the same volume high impedance headphones require a much greater output level than low impedance).
Virgil receives 2 x audio circuits from a Dante network and routes one to the left and the other to the right channel of the headphone amplifier. A front panel volume control allows the user to adjust the output volume.
Three mounting holes are supplied to enable the Virgil to be mounted underneath a studio desk in a suitable location for the users headphones. Needing just 1 single network cable to carry both power & audio to the Virgil makes installation very simple.
As well as being suitable for low & high impedance headphones our unique headphone amplifier circuit can be connected to both stereo headphones & mono earpieces, making the Virgil suitable for driving television presenters ear pieces.
Features
- Dante audio input
- Stereo headphone amplifier
- Can be used with mono earpieces
- Under desk mounting
- Small & robust
- Powered by PoE
- 6.35 & 3.5mm headphone outputs
- Up to 96K/ 24 bit audio
- Amplifiers
- Dante Ch: 2x0
- 24-bit
- Marani
Marani – MDA4-750PS
MDA4-750PS is a highly flexible, powerful and intelligent 4-Channel power amplifier delivering up to a total of 4x750W @ 4 ohms and 4x870W @ 2 ohms, or able to drive 70V/100v Constant Voltage Lines
MDA4-750PS is a highly flexible, powerful and intelligent 4-Channel power amplifier delivering up to a total of 4x750W @ 4 ohms and 4x870W @ 2 ohms, or able to drive 70V/100v Constant Voltage Lines. The 4 output channels can be bridged into 2, and provide 1500W@8ohms power output. Designed to meet the most demanding portable and fixed installation sound systems, it provides a full set of value added features such as high output power, efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software.
MDA4-750PS includes a highly efficient Switch Mode Power Supply, which provides power to the output stages. The 4 output stages use the well-proven Class D module-full bandwith PWM modulator obtaining ultra low distortion, high efficiency and also equipped with a full set of circuit protections. Furthermore the Clip/Limiter function provides output monitoring to prevent speaker damage with gentle gain reduction at clip threshold, in addition to the efficient heat dissipation system and Over-Heat protection which themselves ensure uncompromised reliability.
MDA4-750PS is more than just an amplifier. It is also a capable and sophisticated loudspeaker processor, thanks to its powerful MARANI® DSP running 96 kHz / 24 bit [ 96 bits precision for the internal intermediate processes] and high performance 24bit AD/DA Converters. It offers 4 channels of slope up to 48dB/Oct IIR HP/LP crossover filters, or up to 512 taps FIR filters[FIR coefficients can be imported as .txt/.csv file from external application] , RMS compressor, parametric Eqs , alignment delay and white/pink noise internal generator, everything needed to optimize a loudspeaker system.
- Amplifiers
- Dante Ch: 4x0
- 24-bit
