Product Information

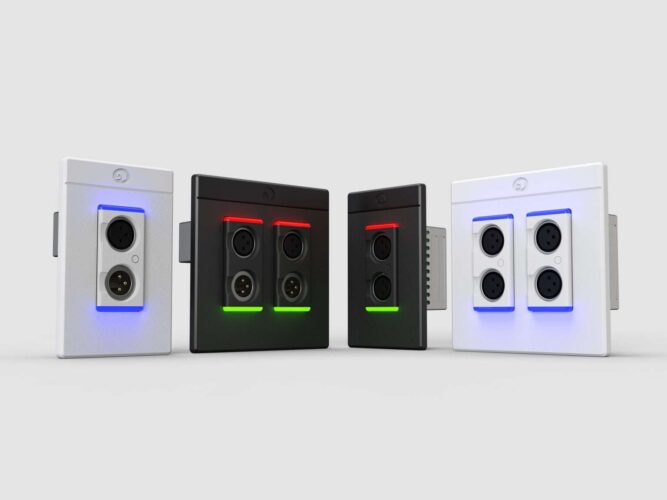

The xIO XLR-Series sets a new standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.
Similar Products
- DiGiCo
DiGiCo – A164D Wall LCD
The A164D Wall LCD is a 16 input 4 output I/O Expander that uses the Dante network protocol to provide fixed, additional I/O anywhere on a network and is designed for wall or floor mounting. It comes with 16 Mic Preamps on XLR inputs with Phantom Power status LEDs and four XLR Line Outs with direct preamp control from the 4REA4 controller software. It can run at both 48K and 96k sample rates and it is AES67 compatible. Primary and secondary Dante ports come with locking EtherCON connectors and can run in both redundant and switched mode. All LCD labels are dimmable and can be customised using Dante controller software.
- Wall Plates
- RDL
RDL – DD-RN40
The DD-RN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front panels and two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN40 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN40 is PoE powered, and is available in multiple finishes with optional customized graphics.
Mic/Line to network section
The four XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled when an input is set for mic level.
Network to line section
Two Dante audio channels are converted to balanced line level. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 62 dB then OFF. The outputs are connected through a detachable terminal block.
The outputs are intended for connection to RDL AMS connectors mounted in Decora®-style plates that match the DD-RN40. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-RN40 in a triple gang box or may be mounted remotely in a single box.
Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.
The DD-RN40 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.
The DD-RN40’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
- Wall Plates
- promedias
promedias – proDT XI UP
Flush-mounted connection with XLR Input female to Dante, EDIZIOdue
- AES67 & DDM ready!
- 1x0 LINE IN (XLR female)
- PoE / 5VDC Input DANTE® Broadway
- Sample Rate: max. 192kHz | Latency: min. 0.25ms
- Network Speed: 1Gb/s / 100Mb/s
- Dimensions: Gr. I (1x1) - 88x88x72mm bzw. 67mm
- Installation dimensions: Ø64x60mm bzw. Ø60x60mm (cutout x depth)
- Color: white (Feller 61), similar to RAL 9010 (also available as standard, e.g. black 60 or option RAL/NCS colour!)
