Product Information

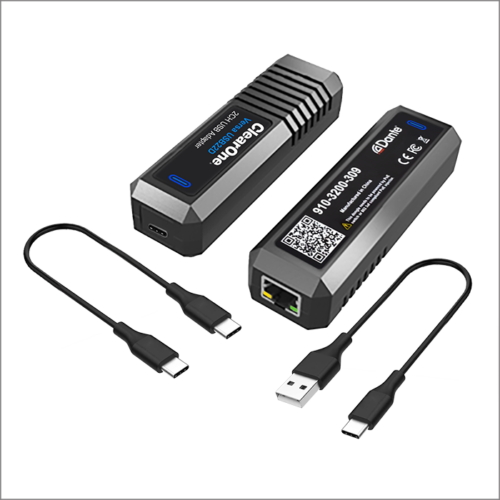

Versa USB22D lets you connect any computer to a Dante network with no software installation and can be used with any audio application for playback or capture, making it ideal for conference rooms, classrooms, and lecture halls.
