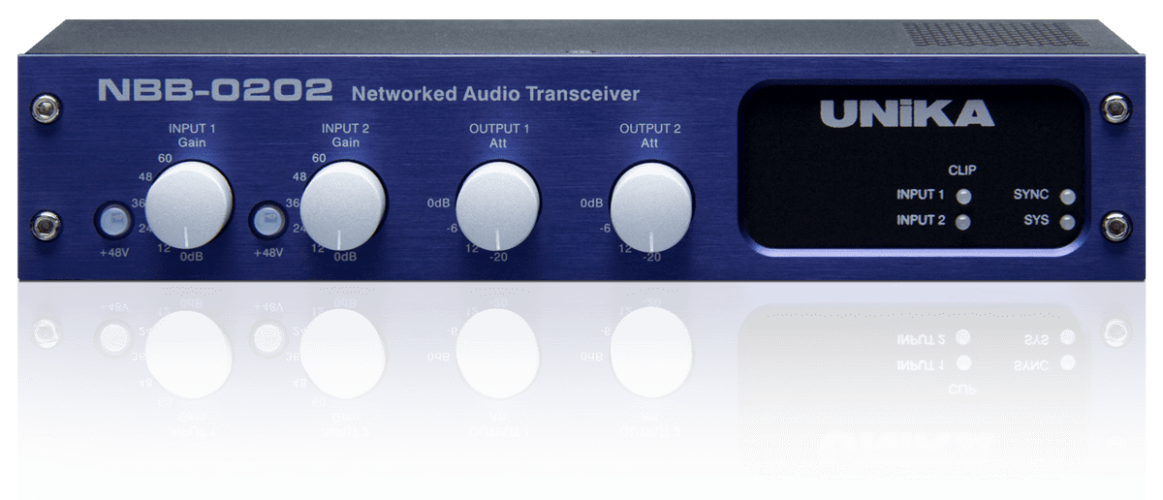

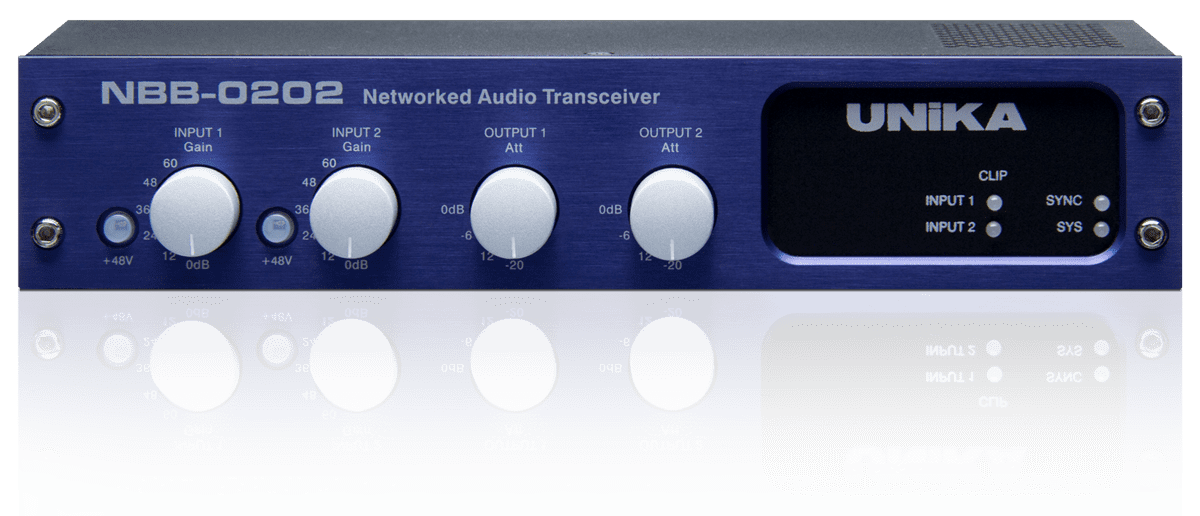

Unika – NBB-0202

I/O Interfaces

More details

Similar Products

unito-NIO-1212_600px
  • DELEC

DELEC – unito NIO 1212

The unito NIO 1212 provides bidirectional format conversion of analog line signals and AES/EBU audio to and from Dante. The NIO 1212 offers 12 AES and 12 analog inputs and outputs and uses RJ45 for high density, easy to use connections. It also includes redundant power supplies. The unito NIO 1212 provides bidirectional format conversion of analog line signals and AES/EBU audio to and from Dante. The NIO 1212 offers 12 AES and 12 analog inputs and outputs and uses RJ45 for high density, easy to use connections. It also includes redundant power supplies. DELEC unito devices are easy to configure via a web browser and configurations may be stored, imported and exported—reducing setup time for large installations. All the unito products include two Ethernet ports to allow redundant network infrastructure or daisy-chain wiring to reduce the cost of installation while their compact design makes them equally space efficient.
    I/O Interfaces
See the product
aeq-netbox-4mh
  • AEQ

AEQ – NetBOX 4 MH

The NETBOX 4MH interface has been designed to cover the need for high quality microphone inputs and headphone outputs availability outputs, for example in radio and TV studios, stage or multimedia installations. The multichannel IP connectivity (Audinate DANTE™ protocol) makes the Inputs of the unit available at any point of the network. The NETBOX 4MH interface has been designed to cover the need for high quality microphone inputs and headphone outputs availability outputs, for example in radio and TV studios, stage or multimedia installations. The multichannel IP connectivity (Audinate DANTE™ protocol) makes the Inputs of the unit available at any point of the network. NETBOX 4MH interface also includes 4 General Purpose inputs and outputs (GPIO) as interfaces for signaling transport between the different devices in the IP network. As a complementary feature, the unit is soporting the same inputs and outputs as analogue balanced line Inputs and Outputs. Further, the new interface has additional GPIOs that can be used in for example a studio installation and as an interface to signaling terminals such as the AEQ SRC 03. This greatly facilitates the implementation of services such as remote CUE and Cough-cut, User keys, ON AIR and READY lights, etc. Technical specifications
  • Channels: 4 microphone-line input, 4 line outputs, in parallel with 4 stereo headphone outputs. Mute and gain control between +12 and -30 dB, individually or in stereo pairs.
  • 48V Phantom Power supply and electronic balancing for all microphone inputs.
  • Data format: DANTE Audio-over-IP technology.
  • Scalable and flexible network topology supporting a wide range of audio transmitters and receivers.
  • Supports 100Mbps, 1 Gbps and 10 Gbps network segments.
  • 2 x RJ45, 100 BASE-T Ethernet ports with galvanic isolation, usable as “daisy chain” connections.
    I/O Interfaces
See the product
joseph-electronics-dft-exp_1200px|joseph-electronics-dft-exp_1200px
  • Joseph Electronics

Joseph Electronics – DFT-EXP

The new DFT-EXP Series from Joseph Electronics provides for up to 12 channels of 3G/HD/SDI uncompressed video plus four additional slots that can be fitted with a selection of other convenient modules for audio, intercom, analog video, genlock, MADI, and even Dante. The new DFT-EXP Series from Joseph Electronics provides for up to 12 channels of 3G/HD/SDI uncompressed video plus four additional slots that can be fitted with a selection of other convenient modules for audio, intercom, analog video, genlock, MADI, and even Dante. All of this is transported on one or two singlemode fibers, depends on configuration) and can also be operated with optical redundancy. Housed in a compact 2RU fanless enclosure with redundant power supplies, up to six 2-channel modules can be fitted for signal counts from 4 to 12. The direction of each module is field reconfigurable to take care of last minute changes. Transmit modules are red and receive modules are blue. Red modules (TX) are slot specific and clearly labeled. The Blue modules (RX) are generic and can go in any slot.  Modules support SMPTE 424, SMPTE 292, SMPTE 259, SMPTE 297 and DVB-ASI. Units can be set to operate in non-reclocking mode to handle any signal from 50Mb/s all the way up to 3Gb/s. A Joseph’s exclusive is the Bypass Channel. This innovative feature allows you to add even more analog video, audio, or data. Units can be custom configured with fiber connections on the front or rear of the enclosure. Convenient LEDs indicate signal presence and link status. Trust Joseph Electronics to come up with innovative and flexible fiber transport solutions that allow broadcasters to make those last-minute changes quickly and easily.  The DFT-EXP Series is ideal for anyone who needs to move a variety of signals point-to-point. Whether for announce booths, host positions, stand-up postions, edit suites, or cross-campus feeds, The DFT-EXP takes advantage of the high bandwidth and dramatic weight savings offered by fiber to deliver pristine video signals and clean audio over far greater distances than copper. Custom features such as the placement of the fiber connectors; audio, Ethernet, data, and  intercom connectivity; optical redundancy; 1 or 2 fiber operation; and the By-Pass channel, ensure that customers get exactly wht they need and don’t pay for features that they don’t want or will never use. The ability to reconfigure your signals on-the-go has gone from being a convenience to being an absolute necessity. With nothing more than a basic screwdriver, users can quickly and easily make the last minute changes the inevitably come up on remote broadcasts.
    I/O Interfaces
See the product
