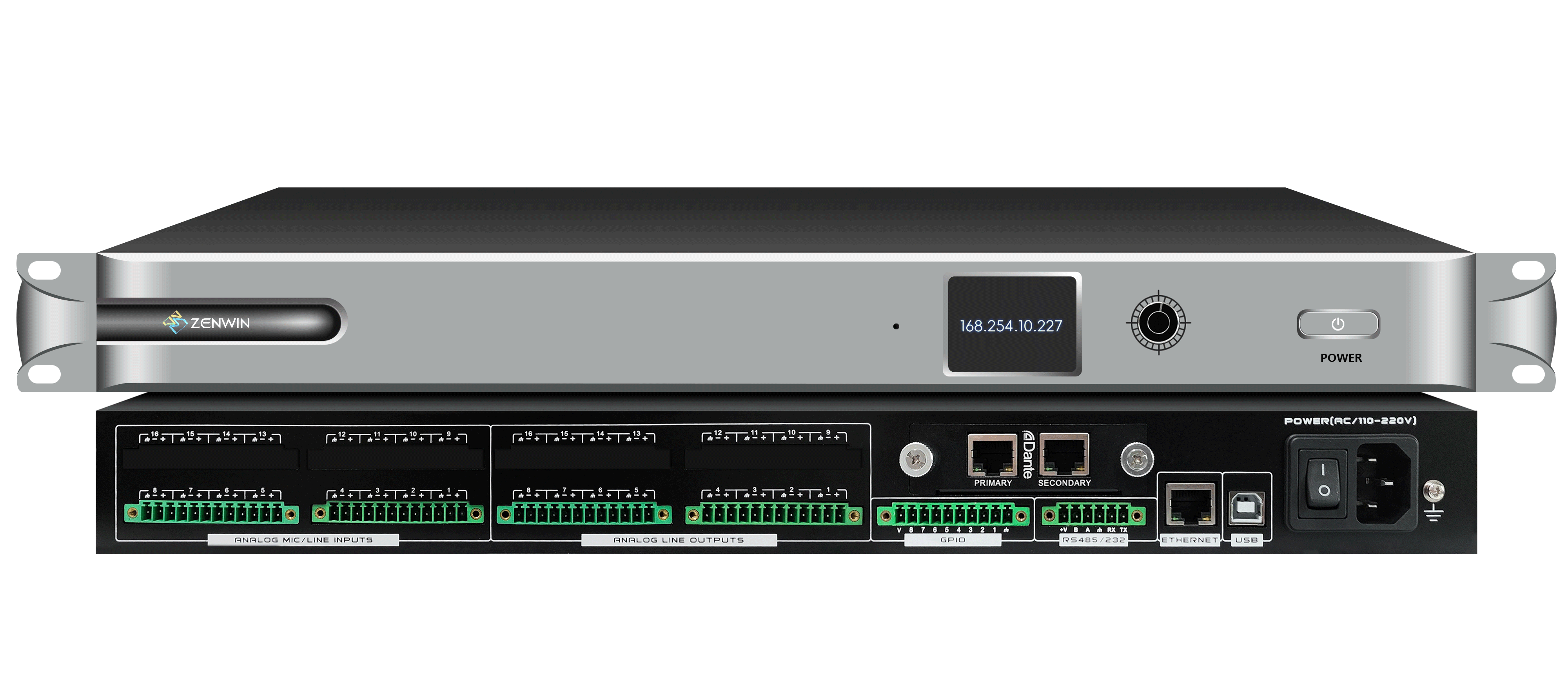

TD-0808D

Digital Matrix Systems

TD-0808D

Features:

  • 1.8 mic/line level analog audio input channels and 8 line level analog audio output channels;
  • 8 DANTE inputs, 8 DANTE outputs, using RJ45 network interface;
  • Customize operating software to make configuration changes more flexible and control DSP of different specifications;
  • The built-in USB sound card can be connected to the computer to achieve audio signal transmission, supporting recording and remote meetings
  • The software has built-in DanteController routing settings, which can be completed with just one software.
  • Provide customized user interface for terminal users to achieve centralized control of multiple devices, which can be controlled by third-party devices through UDP, RS232, RS485 of the local machine;
  • Equipped with AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, automatic mixing, dodger and other processing modules;
  • Each channel has independent adaptive feedback suppression, which automatically detects feedback points and suppresses them;
  • It has a 20 x 17 matrix; 10. Full function matrix mixing, adjustable input mixing level;
  • 32 sets of presets, each preset working independently;
  • It has permission setting function, which can set super administrator, general user, and guest permissions;
  • 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
  • The system supports channel, LINK, and grouping functions, providing the required DSP processing for automatic mixing, paging, routing and allocation, microphone/line processing, automatic gain control (AGC), and room linkage functions
  • Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
  • The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
  • Dante (redundant): 1000 Base-T Ethernet interface, suitable for redundant Dante network audio.
  • The digital network audio processor uses the DANTE network port to connect to the network switch for network digital audio
  • Intelligent automatic camera tracking function;
  • Fire linkage function; 21. Multiple control methods can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means.
  • The front panel has a high-resolution OLED display screen, which is used to display system status and audio settings, and can call the scene to switch volume levels
