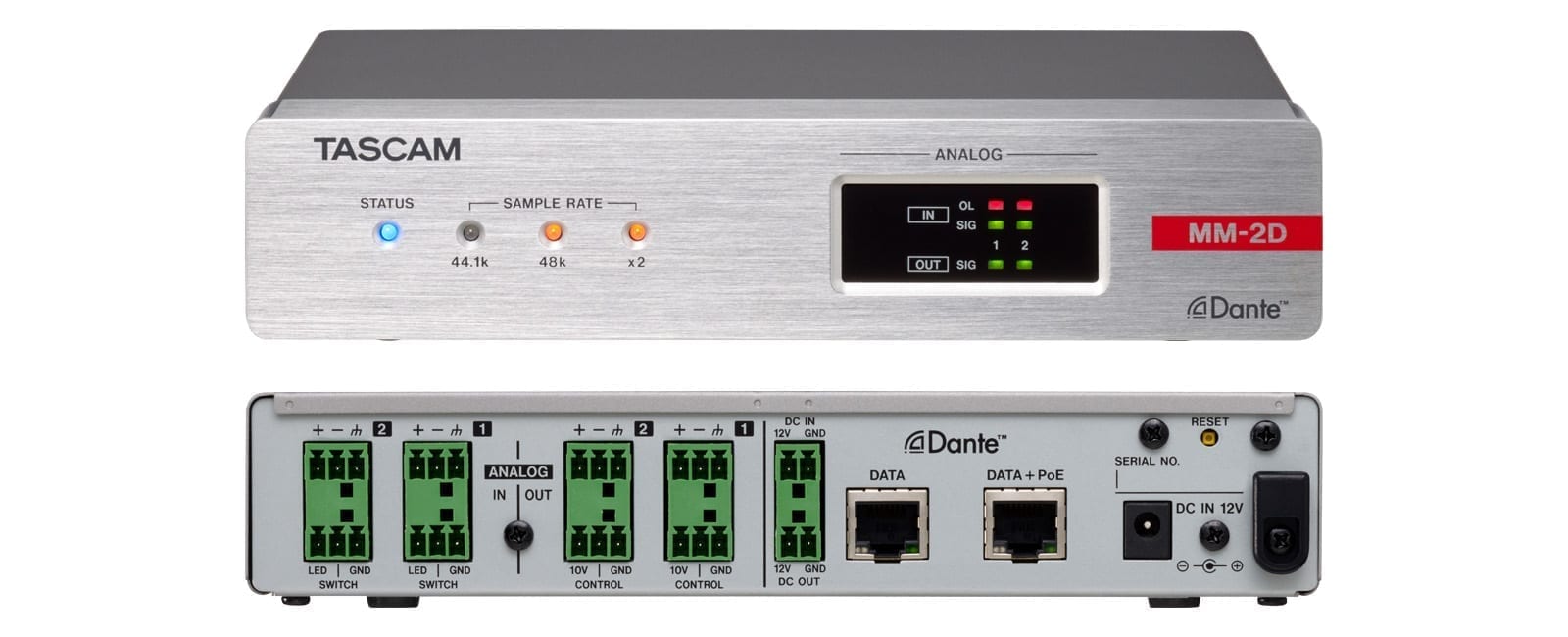

TASCAM – MM-2D/IN-E

I/O Interfaces

More details

Similar Products

qsc-q-sys-io
  • Q-SYS

Q-SYS I/O Frame

The Q-SYS I/O Frame is a network I/O interface for the Q-SYS Ecosystem.  It allows for up to four I/O cards, enabling up to 16 channels of input and/or output in a single unit.  Along with a range of analog and digital audio I/O cards, it supports the CDN64 DanteTM audio bridge card, which provides third-party Dante enabled digital audio products the ability to integrate into the Q-SYS Ecosystem.
    I/O Interfaces
See the product
AMX-DGX6400-ENC_1200px
  • AMX

AMX – DGX6400-ENC

The new Enova DGX 6400 Enclosure (DGX6400-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. The new Enova DGX 6400 Enclosure (DGX6400-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio -switching boards. There are four connections per video board, and each enclosure holds sixteen video input boards and sixteen video output boards for a maximum matrix of 64x64. The Enova DGX 6400 adds several new capabilities such as automatic setup of DXLink endpoints, single IP addressing for multiple endpoints, and a new web interface to greatly simplify installation and configuration. The new advanced Audio Switching Boards add audio breakaway capabilities and parametric EQ on each DGX output. The Enova DGX 6400 is far beyond a modular media switcher with built-in controller – it functions as the centerpiece of a complete integrated solution that manages and distributes analog and digital audio and video including HDMI/HDCP, control and Ethernet. Easily integrate HDCP into system designs and enjoy hassle-free plug-and-play operation. No tools, no delays and no key constraints – it just works with AMX's exclusive InstaGate Pro® Technology. Built for today's and tomorrow's needs, a comprehensive set of Enova DGX boards can be used in conjunction with DXLink and DGX Transmitters and Receivers to provide an end-to-end distribution system over twisted pair cable or fiber. An integrated NetLinx NX Controller and embedded Ethernet switch enables management of the entire solution including source equipment and display devices located throughout the environment – all from a single point of control. In addition to eliminating HDCP delays, InstaGate Pro allows traditionally key limited sources to be switched freely to all connected HDCP compliant displays – eliminating HDCP key limitations that plague large applications. Built-in SmartScale® Technology on every output provides video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different supported resolutions – making it easy to specify, easy to install and easy to use. With the powerful combination of analog-to-digital signal conversion, video scaling and high speed digital switching the system delivers perfect video every time – regardless of signal type. As part of a complete distribution system, easily send analog or digital audio and video including HDMI with HDCP signals, plus control 10 Km over single mode fiber or 300 meters over multimode fiber; send all this plus power up to 100 meters over standard twisted pair cable to and from the Enova DGX using the DXLink Twisted Pair and Fiber Transmitters/Receivers.
    I/O Interfaces
  • Dante Ch: 32x32
See the product
crestron-dmb-4k-o-hd-dnt|crestron-dmb-4k-o-hd-dnt
  • Crestron

Crestron – DMB-4K-O-HD-DNT

The DMB-4K-O-HD-DNT is an output blade designed for use with any blade-based Crestron® DigitalMedia™ Switcher. It provides eight independent HDMI® outputs with complementary analog audio outputs and Dante™ audio networking.  The DMB-4K-O-HD-DNT is an output blade designed for use with any blade-based Crestron® DigitalMedia™ Switcher. It provides eight independent HDMI® outputs with complementary analog audio outputs and Dante™ audio networking. The HDMI outputs are each capable of handling Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP 2.2, Deep Color, and high-bitrate 7.1 audio. Built-in 4K scaling enables the devices connected to each HDMI output to handle any video resolution from NTSC 480i to 4K DCI. DVI signals are also supported using HDMI-to-DVI adapters or interface cables. Support for Dante audio networking allows for routing of stereo audio output signals to other Dante enabled equipment over the local area network. The analog audio outputs are enabled using the optional Analog Audio Breakout Box (model AUD-BOB-1602), which provides support for balanced or unbalanced stereo line-level signals. 4K/60 Scalers An independent, high-performance 4K scaler is provided at each output to ensure that input sources of any resolution or frame rate can be routed and displayed reliably on virtually any display device without compromising the original input signal. As part of a DM® switcher with many outputs, this allows any video or computer source to be viewed simultaneously on multiple disparate displays, scaling the signal up or down to match the native resolution of each display. No matter what source is selected, or where it’s routed, the DMB-4K-O-HD-DNT helps to ensure an optimal image on every screen. It can take any input resolution from standard definition NTSC 480i to ultra high-definition 4K DCI, and scale it beautifully to any output resolution up to 4K DCI (4096 x 2160 @ 60 Hz). Interlaced sources are converted to progressive scan using motion-adaptive deinterlacing. Intelligent frame rate conversion enables support for 24p and PAL format sources. 3D signals are converted to 2D. Fully automatic operation eliminates any complicated setup by utilizing the displays’ EDID to configure each scaler. Video Wall Processing The DMB-4K-O-HD-DNT has another trick up its sleeve, providing zoom capability and bezel compensation on each output to display just a portion of the source image. Using this feature, up to eight output cards may be combined to provide processing for a video wall composed of up to 64 individual displays. Video wall configurations up to eight wide by up to eight high are supported. Analog Audio De-Embedding Each HDMI output on the DMB-4K-O-HD-DNT is accompanied by a balanced analog audio output, allowing stereo audio signals to be extracted from the digital output and fed to a sound system. The analog audio outputs are enabled using the optional Analog Audio Breakout Box (model AUD-BOB-1602). Dante™ Audio Networking Dante networking enables streamlined integration with Crestron Avia™ DSP products and other Dante enabled audio processors, amplifiers, mixers, and switchers. Dante allows stereo audio signals from any or all of the blade’s outputs to be routed to such equipment over an Ethernet network. Send/return loop capability is also supported, allowing audio from any input source to be externally processed, mixed, or switched via Dante, and then re-embedded with the video signal at any of the HDMI outputs. The Dante network interface is provided via the DM switcher’s LAN port, supporting up to 120 simultaneous stereo input and output signals. CEC Embedded Device Control DigitalMedia offers an alternative to conventional RS-232 and IR display control by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to a control system (via the DM switcher), the DMB-4K-O-HD-DNT provides a gateway for controlling display devices right through their HDMI connections, potentially eliminating the need for any dedicated control wires or IR emitters.
    I/O Interfaces
  • Dante Ch: 0x16
  • 24-bit
