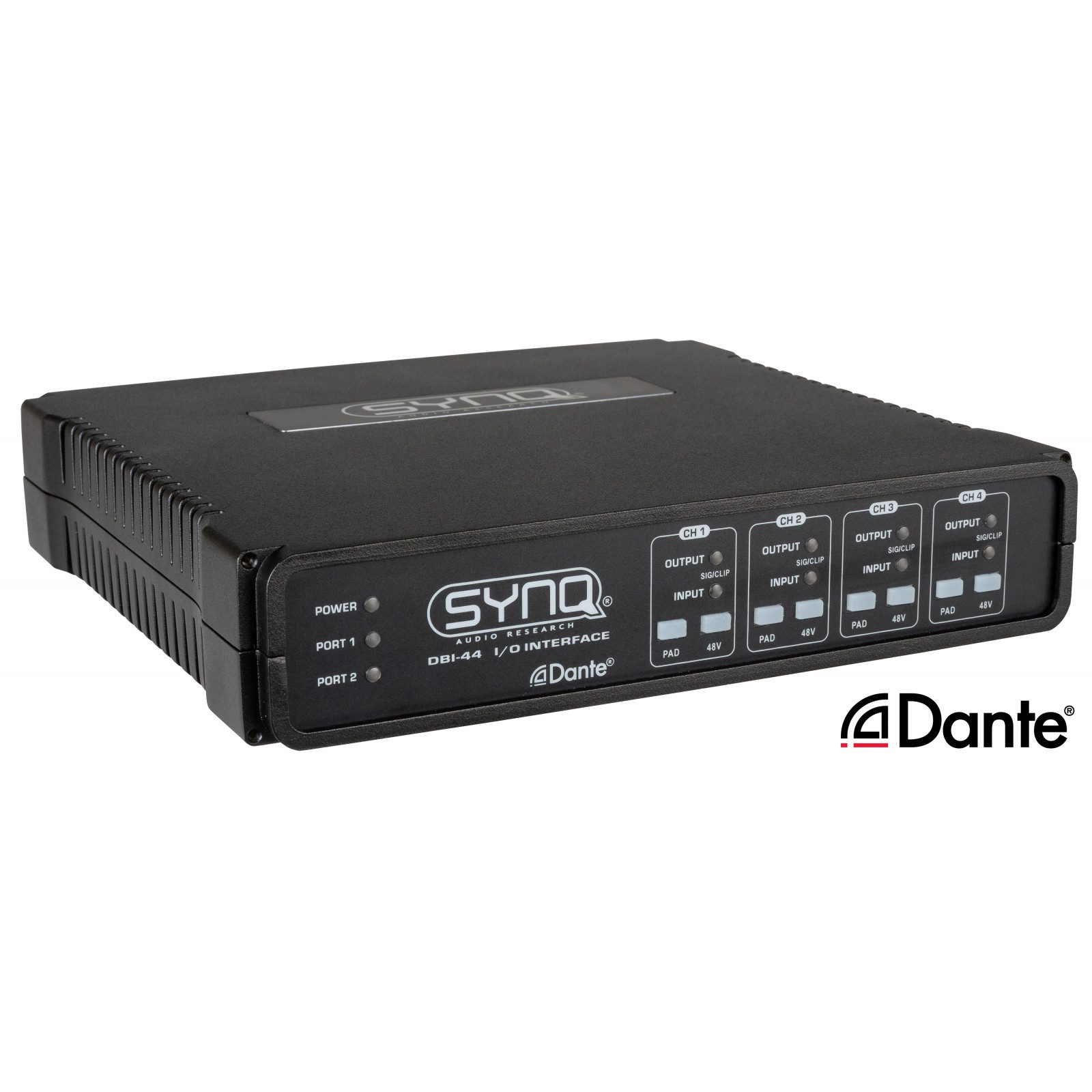

Synq – DBI-44

I/O Interfaces

More details

Similar Products

ssl-io-madi-bridge_1200px
  • Solid State Logic

SSL – Network I/O MADI-Bridge

The SSL Network I/O: MADI-Bridge is a broadcast specification bridge between the industry standard MADI audio format and IP audio networks using Dante. The MADI-Bridge enables any standard MADI device to connect to Dante based IP Audio networks with full redundancy maintained. Standard Broadcast Specification MADI to IP Audio Network Interface The SSL Network I/O: MADI-Bridge is a broadcast specification bridge between the industry standard MADI audio format and IP audio networks using Dante. MADI-Bridge can carry up to 64 channels per Bridge (@ 48kHz). Redundant PSU, MADI ports and IP Network ports mean the Bridge is built for uninterrupted operation. In addition to the inbuilt clock redundancy options in Dante controller, the MADI-Bridge also includes a pair of redundant sync inputs for use with black and burst video, tri-level and word clock sync sources. A front panel headphone socket (with rotary level control) provides inbuilt headphone monitor routing, to replace traditional patch bay fault finding functionality with equivalents in the IP Audio domain. 32bit MADI control tunnelling allows a pair of MADI-Bridges to be used to pass audio and user bits of a whole MADI stream across a network.
    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
See the product
dbi-04-front-5hr_1
  • Synq

Synq – DBI-04

Top quality bidirectional conversion between DANTE® and 4 hi-grade balanced analog outputs. GIGABIT Ethernet I/O, no linking delays. Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, ...) AUDIO MATRIX: flexible routing, ... WEB SERVER with graphical DSP user interface. Extremely high audio quality: S/N >120dB ~ THD: <0.003% GPI ports: connect switches, potentiometers, alarm systems, ... GPO ports: control external equipment, PowerPoint presentations, ... INSTALL version with EUROBLOCK connectors POWER: 24Vdc input or PoE class 0 2 units fit together in a 1U 19"rack
    I/O Interfaces
  • Dante Ch: 8x8
  • 24-bit
See the product
ssl-bl-II-bridge
  • Solid State Logic

SSL – BL II-Bridge

For fixed installations where ruggedised connections are not required, the BL II Bridge also offers 256 channels of 96 kHz audio between a Live console and a Dante network by utilising SSL’s proprietary high bandwidth Blacklight II protocol. For fixed installations where ruggedised connections are not required, the BL II Bridge also offers 256 channels of 96 kHz audio between a Live console and a Dante network by utilising SSL’s proprietary high bandwidth Blacklight II protocol.
    I/O Interfaces
  • Dante Ch: 256x256
  • 24-bit
See the product
