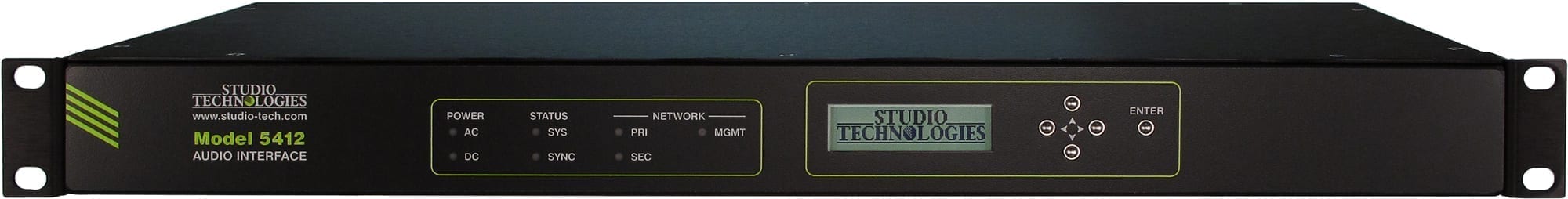

Studio Technologies – Model 5412 Audio Interface

I/O Interfaces

More details

Similar Products

RedNet-D16-AES|RedNet-D16-AES
  • Focusrite

Focusrite – RedNet D16 AES

RedNet D16 AES is a 1U 19in rack-mount interface featuring 16 channels of AES/EBU connectivity to and from a Dante audio network, with Ethernet redundancy for maximum network reliability.
    I/O Interfaces
See the product
rdl-dds-bn31_1200px|rdl-dds-bn31_1200px
  • RDL

RDL – DDS-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block.  The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels. Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo). The Mini-jack output is equipped with a selector to feed both output channels from Dante receive channel 3 (mono). This selector may be set from the front of the unit when the cover plate is not installed. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN31’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
mansionDIC2223A
  • Mansion

Mansion – DIC2223AU

DIC2223AU is a high quality Dante interface box for converting two Dante channels to Analogue Audio outputs, and two Analogue Audio inputs to Dante network. Features: *Two Mic/Line XLR Inputs and Output on Front Panel *Terminal Block for Two Audio Outputs on Rear Panel *Converts Mic or Line Audio Signals to Dante Network *Mic or Line is Selectable for XLR Input *Switchable 48V Phantom Power for Mic XLR Input *Adjustable Mic/LIne Gain from -20 dB to +20dB for Each Input Channel *Two Audio Signal Outputs from Dante Network *Balanced or Unbalanced Signal Outputs *High Resolution 24 Bit for DAC and ADC *Power over Ethernet (PoE) or 24VDC power supply *Provides High Quality of Preamplifier for Microphones *Dimension: 116mm x 114.5mm x 53.1mm (WHD)
    I/O Interfaces
See the product
