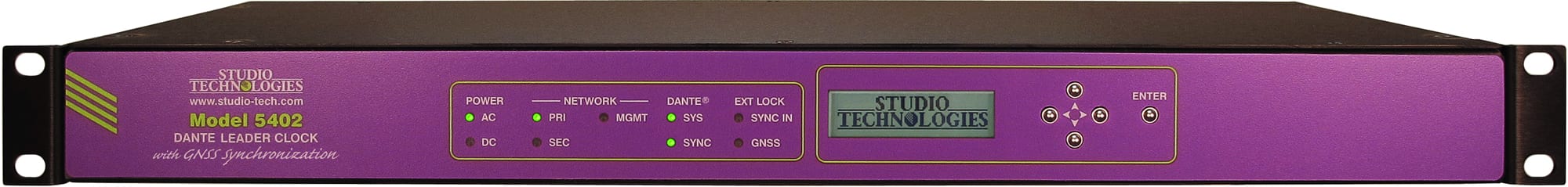

Studio Technologies – Model 5402 Dante Leader Clock with GNSS Synchronization
The Model 5402 provides the PTP v1 (IEEE 1588-2002) compatibility required by Dante. Supports PTP v2 (IEEE 1588-2008) for AES67 applications. Includes an integrated GNSS (satellite) receiver to allow a precise timing reference to be acquired from the four major constellations. A sync input connection allows the Model 5402’s internal oscillator to be synchronized with a variety of external timing and reference signals. A word clock output provides a general-purpose timing reference for use by external devices.
Key Features
• Integral GNSS (satellite) receiver for nanosecond-level timing accuracy
• Supports GPS (USA), Galileo (Europe), BeiDou (China), and GLONASS (Russia)
• Dedicated Leader clock for Dante audio-over-IP, AES67, ST 2110, and DDM applications
• High-performance IEEE 1588 PTP v1 and v2 servers
• Allows synchronization of audio between multiple sites
• Word clock output with selectable rates
• Eight configurable audio tone signals
• Three Gigabit Ethernet interfaces support independent redundant Dante and management networks
• Webpage management and USB flash drive software updating
