Product Information

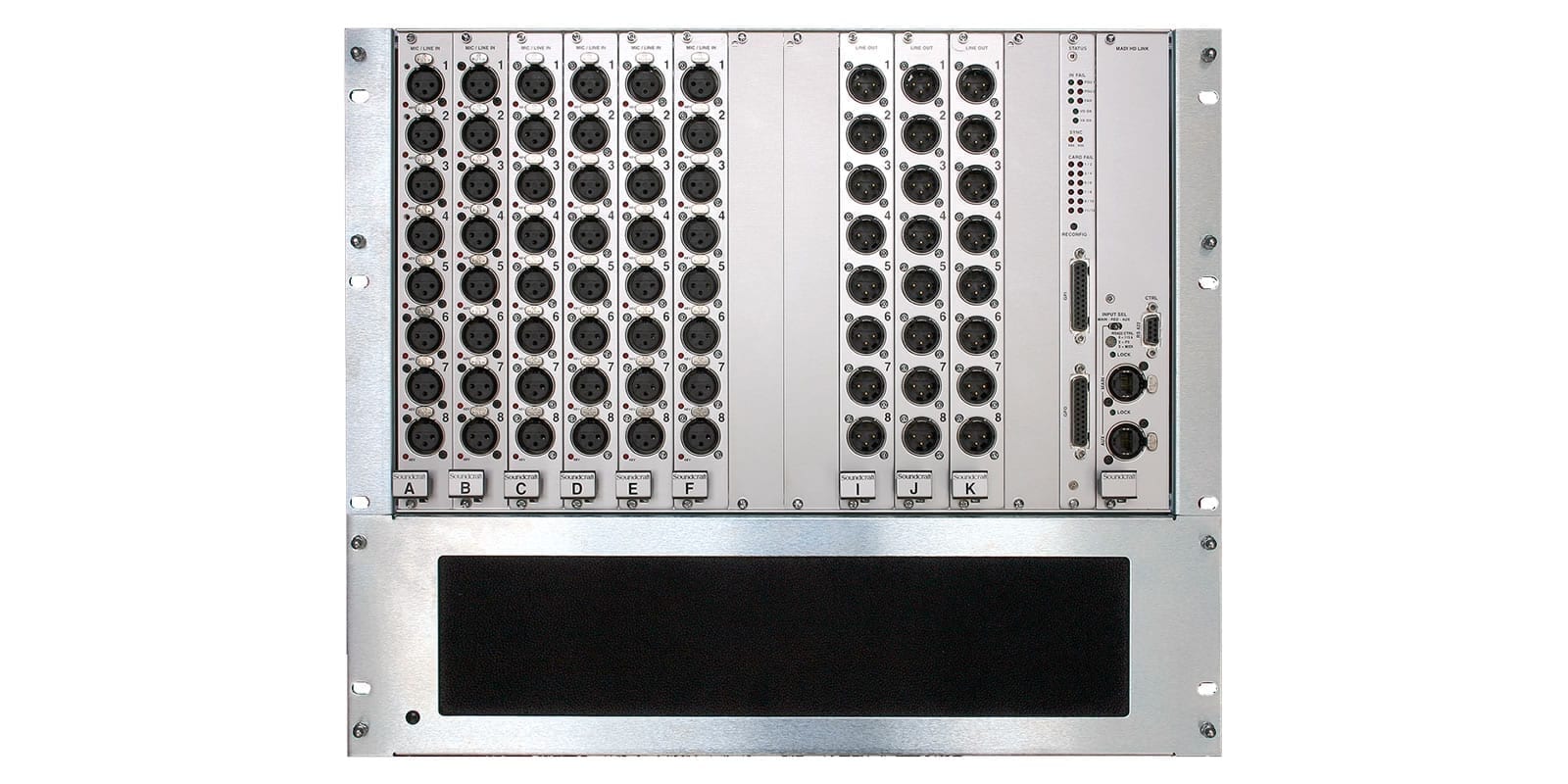

The 9U Vi Stagebox houses 64 mic/line inputs and 32 analogue line outputs. Mic/line amp gain, 48 V phantom power and 100 Hz lo-cut filter before the A-D converters can all be controlled remotely from the desk.
The 9U Vi Stagebox houses 64 mic/line inputs and 32 analogue line outputs. Mic/line amp gain, 48 V phantom power and 100 Hz lo-cut filter before the A-D converters can all be controlled remotely from the desk.
The Stagebox is available in Standard 64/32 configuration, or can be reconfigured as part-fitted or with alternative cards as required.
Optional AES/EBU, CobraNet®, Ethersound®, Aviom A-Net® 16, Blu Link or Dante cards are available, as well as transformer balanced options for the mic input cards.
Specifications
- Dante Ch: 64x64
- Bit Depth: 24-bit
- Sample Rate: 48kHz, 96kHz
- AES67 Enabled
