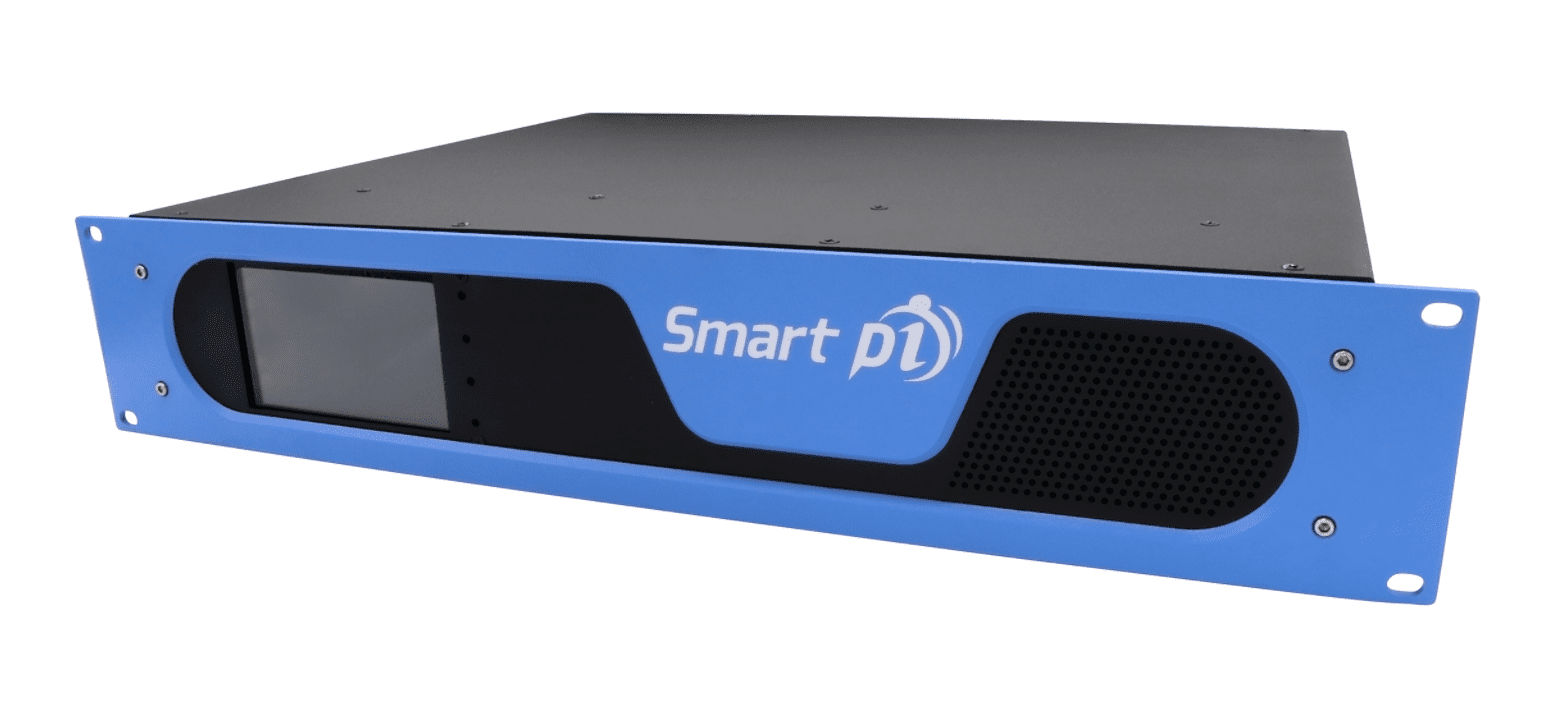

The Smart pi DSP (Digital Signal Processor) is the next generation of digital PA processor with massive audio processing ability that can support the smallest to the very largest of systems. The Smart pi DSP is completely modular and future upgradeable via simple firmware updates. It is based on industry standards including Dante and OCA/AES70. The hardware comes in a 1RU Node or 2RU SuperNode format being able to manage up to 384 zones in a single unit.
The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.
The BLU-100 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.
This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.
The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.
Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.
Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.
12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.
The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
• dynamic DanteTM routing
• DanteTM and network parameter monitoring and reporting
• easy configuration via web interface and integration via nexgentec super modules
• control API
