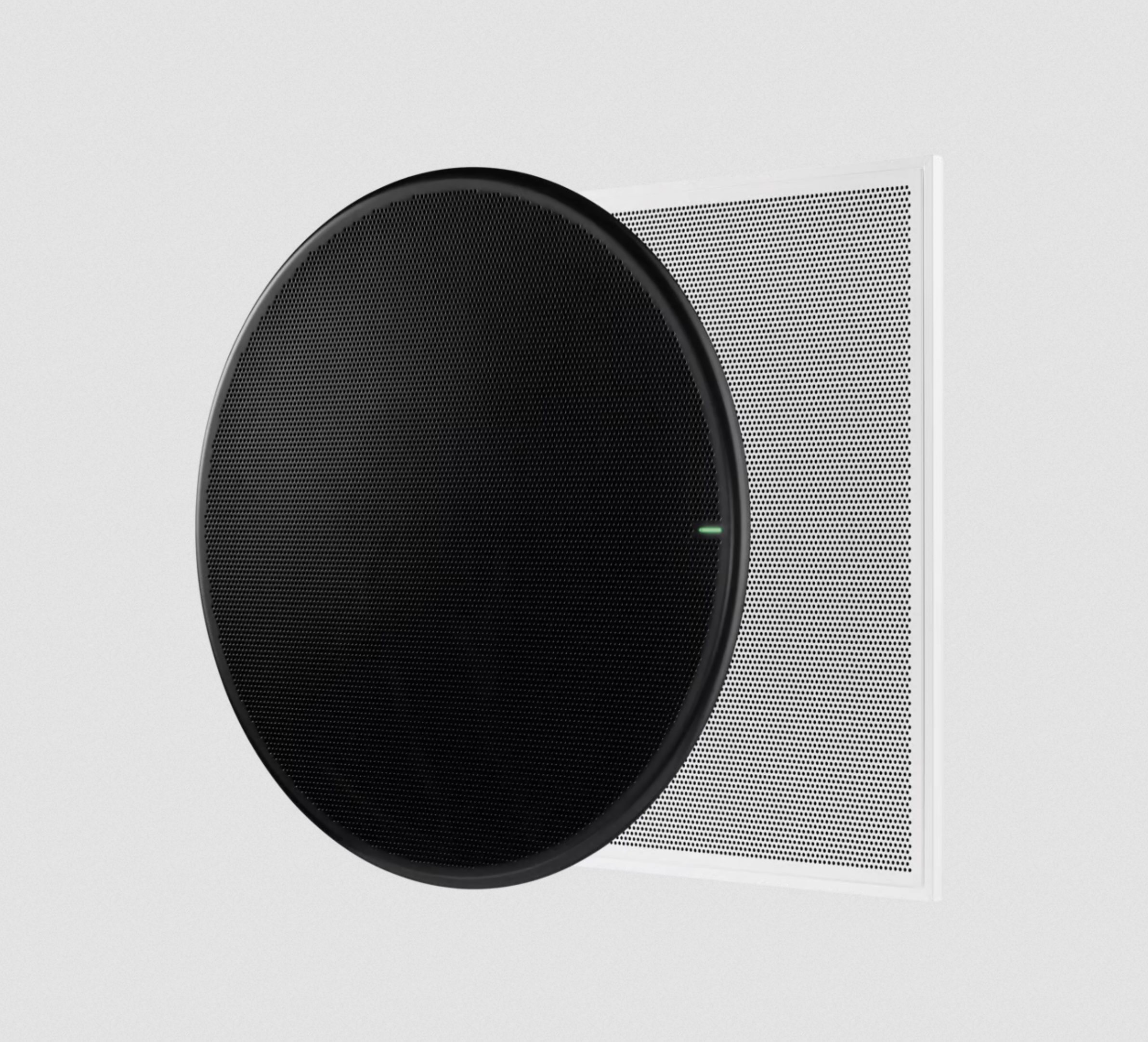

Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.
Dante Network Transmission
Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.
PoE power supply
Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.
Technical parameters：
Speaker model: CS-8D
Unit configuration: 8"(200mm) Speaker unit，1" Tweeter
Frequency range: 100Hz-18kHz
Rated power: 60W
Sound pressure level: 112dB
Sensitivity: 93dB
Coverage Angle: 100°×100°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Product size (mm) : 281×247(Ф×H)
Opening size (mm) : Ф245
The X606 beam forming array module combines a comprehensive package in all relevant disciplines without compromise. With the X606, even at most demanding and complex sound installations can be realized. The combination of mapping optimization and direct array definition is the most comprehensive and powerful loudspeaker management system on the market. The X606 is a self-powered 3-
way high-end beam forming array loudspeaker, which features 6 x 6.5" ported woofers for LF, 12 x 3.5" woofers for the MF and 24 x 1" dome tweeters for the HF. The X606 can be used as single cabinet with programmable vertical dispersion (point source functionality) and as beamforming array for fixed installation as well as for mobile applications. If one X606 is combined with one X606-CARDIOD cabinet, the system will have cardioid dispersion for the LF range. The array is used as straight line in most applications as the coverage on listener areas is adjusted by beamforming. Due to the fully integrated connection hardware, the column can be stacked to realize larger systems with up to 10 meters of acoustic length. With the small source distances, the beamforming capabilities of the column are excellent even at very high frequencies. Internally, one X606 has 42 amplifier and 42 DSP channels. The CADAC DSP-core module platform is integrated with the amplifier section into the loudspeaker. Cabinets are electrically connected by the CADAC C-Link audio and command interface. The CCP control and prediction software can connect to the array via LAN for command and control, Auto-EQ and to calculate sound prediction on listener areas. With the CMAP (mapping optimization mode), the vertical dispersion can be adjusted and optimized according to the listener area.
