Product Information

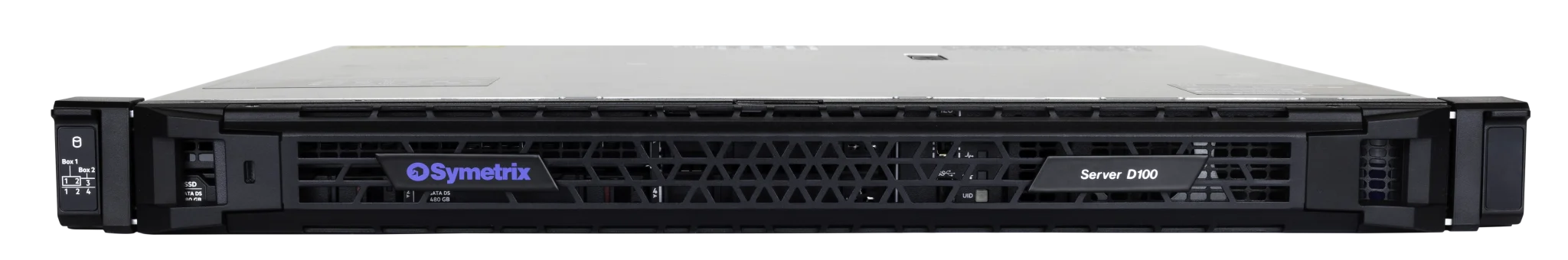

Server D100 is an enterprise-class rack component designed specifically for professional AVoIP installations with high node counts and for systems that require complex channel management.
Similar Products
- Magnetic
Magnetic – DH Series
The DH series contains four Dante-enabled models:
| Magnetic - DH-240+Dante |
| Magnetic - DH-260+Dante |
| Magnetic - DH-360+Dante |
| Magnetic - DH-480+Dante |
■ 4 signal inputs and 8 signal outputs (xlr, balanced)
■ Wifi control via usb or tcp/ip lan (ethernet)
■ 96khz sampling rate
■ 64 bit floating dsp
■ Dynamic range:>110db
■ Maximum input level at +23dbu
■ Maximum output level at +23dbu
■ Operational frequency range 20hz to 20khz
■ Processing delay:1000ms(input)1000ms(output）
■ latency：<0.2ms
■ 20x2 character blue crystal lcd display
■ 30 presets memory on hardware unit
■ 12 band fully parametric(frequency,q and gain)equalizer on each output channel and input channel
■ 180 phase inverter and mute button on each output
■ Limiter available on each output channel
■ For added safety of the speakers
■ USB interface for pc control
■ RS-485 interface
■ limiter:-20db`+20db
■ app for ios and android and ipad(new version)
■ all pass filter:adjustable frequency and q setting control
- DSPs (Digital Signal Processors)
- NST Audio
DM88
Equally suited to FOH duties as a highly capable system manager and console switcher, or as the hub of a complex installation system, the DM88 can control and process it all, simply and capably. The DM88 incorporates not only the best quality audio conversion and DSP, but also new levels of flexibility for routing and processing. Featuring 16 Dante, 8 analogue and 8 AES inputs, these are all available to be matrixed to one of 16 processing channels, optimised for either general input processing or for more specialised output speaker processing.
- DSPs (Digital Signal Processors)
- Outline
Outline – Newton 16+4
Outline's Newton is the next generation in audio system control and networking. Newton advances the management of sophisticated audio systems by combining new filter technology, multi-format audio signal routing, multi-format standards conversion and digital signal synchronisation in a single 1RU networkable chassis.
Outline's Newton is the next generation in audio system control and networking. Newton advances the management of sophisticated audio systems by combining new filter technology, multi-format audio signal routing, multi-format standards conversion and digital signal synchronisation in a single 1RU networkable chassis.
Each Newton processor combines powerful WFIR filters (unique to Outline), clock management and a very high number of input and output channels (216 x 216). Internal synchronous and asynchronous sample rate converters manage all I/O operations and Newton can be synchronised with any one of the 14 choices of clock sources. Mix and Match Matrix I/O routing allows translation and re-distribution of digital audio over multiple standards simultaneously.
Combining power and flexibility with an easy to use control interface, Newton forms the nucleus of next generation audio systems. Multiple Newton devices are easily interconnected to form a network that is scalable to meet all audio applications. Powerful processing features and multiple audio network standards combine to make Newton the ideal control core for any audio system from Touring to Live Broadcast Events and Fixed Installations.
While Newton 16 is an all-digital device, Newton 16+4 adds the useful capability of local analog inputs and outputs.
Newton 16+4 adds 4 auxiliary analog inputs and outputs. Each analog input is also provided with additional processing and matrix allowing inputs to be processed, routed and mixed into the main matrix. All three versions of Newton share the same motherboard and it is possible to upgrade from Newton 16 to Newton 16+4.
