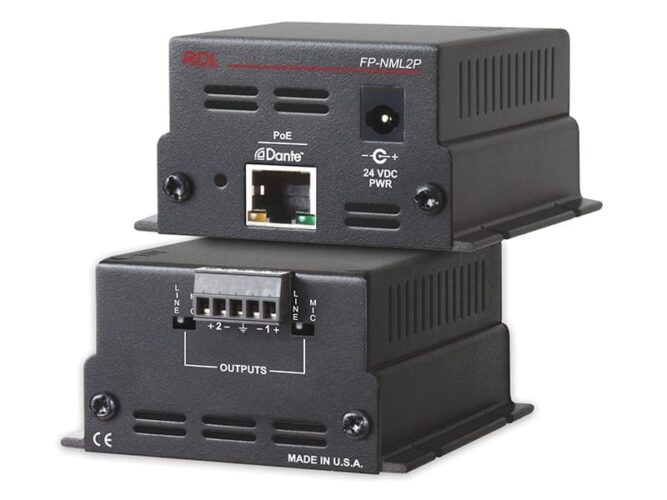

RDL – FP-NML2P
The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio amplifiers or equipment to a Dante network. Model FP-NML2P operates from PoE.
The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio power amplifiers, or other audio equipment, to a Dante network.
Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom.
The FP-NML2 operates from 24 Vdc and is available in a PoE version: FP-NML2P. If PoE power and an external 24 Vdc supply are both feeding an FP-NML2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
