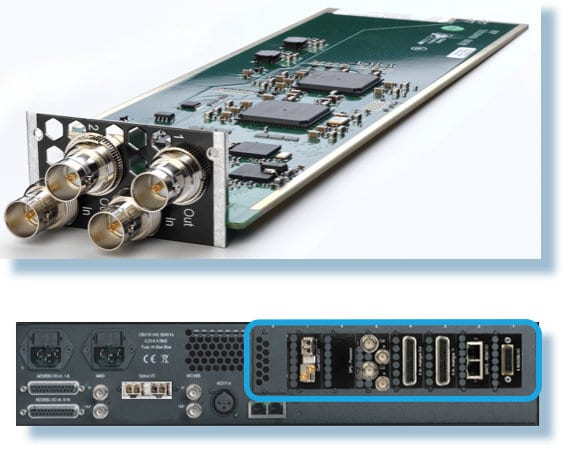

NTP Technology – SDI 3G embedding / De embedding Card

Audio Embedders & De-Embedders

More details

Similar Products
  • IDK

NJR-AB08DAN

The NJR-AB08DAN is an audio bridge interface that converts audio signal protocols between IP-NINJAR and Dante networks. The NJR-AB08DAN converts audio packet on the IP-NINJAR network into the suitable Dante packets and vice versa for routing signals efficiently to the correct destination. It supports up to 8×8 audio I/O channels.
  • Transcode Audio signal between IP- NINJAR (SDVoE) and Dante protocol
  • Receives up to four (4) audio streams from IP-NINJAR transmitters and output as Dante protocol up to eight (8) channels
  • Receives up to 8 channel Dante audio from Dante devices and output as IP-NINJAR (SDVoE) protocol up to four (4) audio streams
  • Dante audio embedded on HDMI signal at IP-NINJAR receiver
  • Dante audio de-embedded to analog audio signal at IP-NINJAR receiver
    Audio Embedders & De-Embedders
See the product
ZW-D1
  • ZenWin

ZW-D2

Features
  • It can display the current IP and other settings.
  • Gain and other parameters can be set in the software
  • Connect directly to the network using Ethernet cables
  • Dante devices can be controlled in remote mode
  • Dual port backup, PoE power supply, and independent external power supply
  • 4 microphone/line input with phantom power supply, 4 line outputs
  • The entire scalable Dante system has 512 bidirectional audio channels
Technical specifications:
  • Frequency response 20-20kHz
  • Input impedance of 2k ohms (microphone); 68 ohms (line)
  • Output impedance of 100 ohms (microphone); 100 ohms (line)
  • High pass filtering at 80 Hz, 18 dB/octave
  • Sampling rate 48K
  • Power consumption less than 5w
  • Total harmonic distortion<0.01%
Interface:
  • (Input) Balanced audio, quick connect to 4 header ports
  • (Output) Balanced audio, quick connect to 4 header ports
  • 1 independent power interface
  • 2 Dante network interfaces
  • Phantom power supply+48V
  • Power supply requirement+48V DC or IEEE802.3af PoE
  • Dimensions 44mm x 210mm x 166mm
    Audio Embedders & De-Embedders
  • Dante Ch: 2 Out
  • 24-bit
See the product
FDX-SAB64D
  • IDK

FDX-SAB64D

The FDX-SAB4A is an analog audio board with four unbalanced inputs and four balanced/unbalanced outputs. The FDX-SOA12A is an 12-output unbalanced audio board designed for FDX-S series Modular Matrix Switchers. The FDX-SAB64D is a Dante network audio board designed for FDX-S series Modular Matrix Switchers.
    Audio Embedders & De-Embedders
  • Dante Ch: 64x64
