NTP – Penta 721s-DNT
PENTA 721s-DNT is a Dante to Dante converter with built-in Samplerate Converter, MADI and AES, which provides a versatile and flexible solution for signal distribution of Dante audio between two different networks as well as routing via AES/EBU and MADI and optical fibre networks.

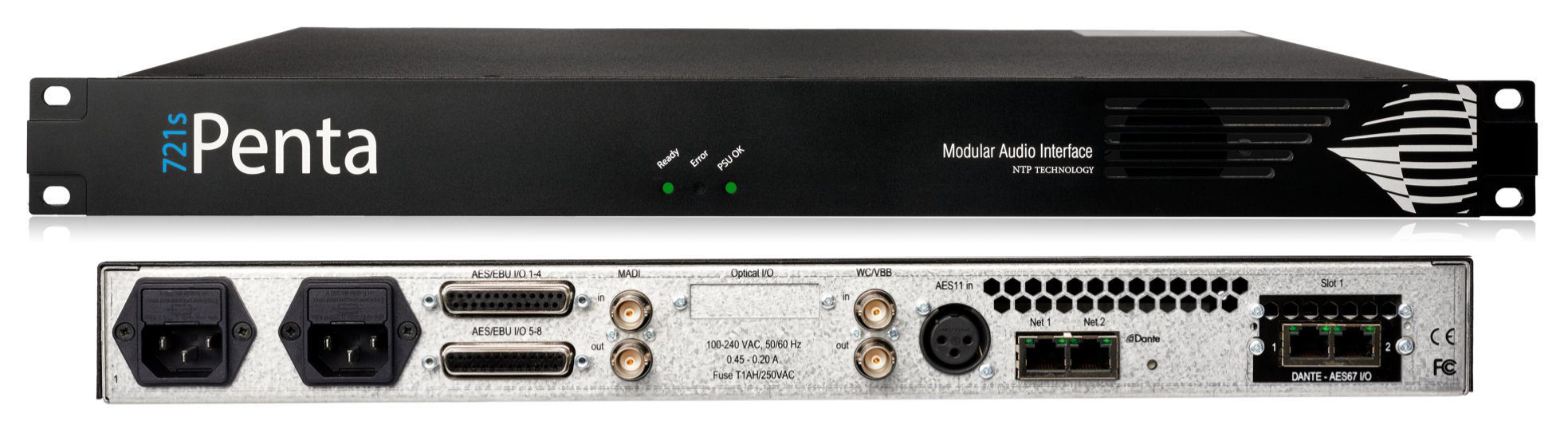

It is a compact 1U digital audio interface with a dual set of Dante IP Audio network ports, Pro|Mon and dual power supply, providing routing and selection of sample rate between two separated Dante networks and individual domains. One of the domains has a capacity of 128 Dante channels and 128 audio flows, and the other domain has a capacity of 64 Dante channels and 32 audio flows.
All Dante channels can be routed to and from any of the digital interfaces of the unit. It comes with eight channel AES/EBU input/output channels, MADI and two IP Audio Ethernet in/outs, as well as an optional mini-module slot with dual SFP MADI optical in/out connection.
