Nixer - RL64

Nixer – RL64

Product Information

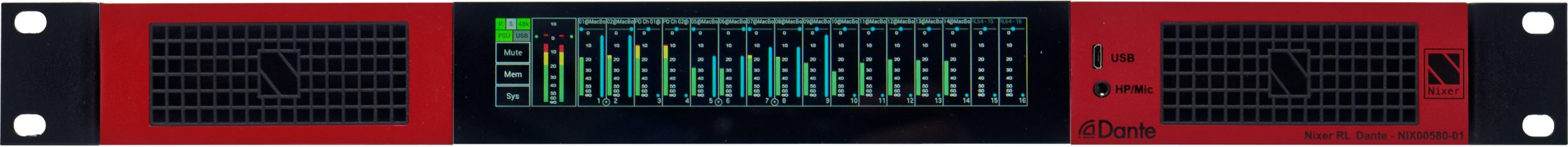

A 1U 19inch rack mounted Dante monitoring and mixing unit, which allows two modes of operation a mixing mode which can mix up to 64 Dante channels at 48kHz (32 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 67 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL64 Dante. The mix output is also routed to the Dante output. The RL64 Dante is operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel. A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL64 Dante very quickly.

The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

WL64-4

The WL64-4 rack mount Audio over IP (AoIP) audio monitoring unit operates in conjunction with the Nixer Remote iPad® App. The WL64-4 provides a “base unit” for the monitoring and mixing of AoIP sources from a Dante or Ravenna network. Each unit is configured at time of purchase to be Dante or Ravenna. The Nixer Remote App allows audio to be wirelessly streamed to an iPad® for local monitoring, freeing the Operator from a dedicated hardware front panel display and equipment rack. As standard, each WL64-4 can have four iPads connected wirelessly and each Operator can select and listen to sources independently as well as creating their own individual mixes. Each iPad is able to stream audio wirelessly to the internal speakers, headphone output or via Bluetooth. The audio can be selected in a simple “Listen” or “Mix” mode.

Audio Monitors

See the product

CTP Systems

CTP Systems – DDM888

The DDM888 is a 1RU Dante enabled stereo monitor unit with two high/midrange speakers and a single bass driver for quality monitoring. The unit can access sixteen stereo Dante inputs, eight stereo analogue inputs, eight balanced AES inputs and eight stereo SDI audio channels. There is also a programmable preset button for monitoring frequently used combinations. The unit includes a stereo meter which may be selected to analogue PPM style metering with phase indication or bargraph. There is an SDI output as well as a stereo analogue output for external monitoring or metering. The network connections include a selectable redundant or switch secondary.

All inputs include level controls for normalising the input levels if required. Additionally, inputs may be individually delayed by up to eight frames.

The DDM888 includes a webserver GUI for easy setup and selection.

Power may be PoE or Mains.

Audio Monitors

See the product

junger-dap8_map_1200px|junger-dap8_map_1200px

Jünger

Jünger – Monitoring Audio Processor D*AP8 MAP EDITION

The D*AP8 MAP EDITION is a multi-purpose audio device comprising of an 8 channel audio monitor, an optional comprehensive Dolby® toolkit including metadata emulation, along with loudness metering and logging capabilities. Supporting SDI, AES, MADI, Dante™ and analog I/O, the unit can handle all audio formats up to 7.1. The D*AP8 MAP EDITION is a multi-purpose audio device comprising of an 8 channel audio monitor, an optional comprehensive Dolby® toolkit including metadata emulation, along with full loudness metering and logging capabilities. Supporting 3G SDI, AES, MADI, Dante™ and analog I/O, the unit can handle all audio formats from mono up to 7.1 surround. Aimed at production, QC and live broadcast applications, Jünger Audio’s D*AP8 MAP EDITION is designed to serve as an ideal replacement and upgrade for the discontinued Dolby® DP570 Multi-Channel Audio Tool. Selectable Primary and Secondary inputs allow easy switching between source signals for monitoring and auditioning of either surround or stereo mixes. A fully featured downmix section, a speaker control section, matrix re-mapping and an output section with full bass management are part of the D*AP8 MAP EDITION’s comprehensive feature set. The D*AP8 MAP EDITION may be also equipped with optional Dolby® decoding and encoding.

Audio Monitors

See the product

Nixer – RL64

Product Information

Similar Products

WL64-4

CTP Systems – DDM888

Jünger – Monitoring Audio Processor D*AP8 MAP EDITION
