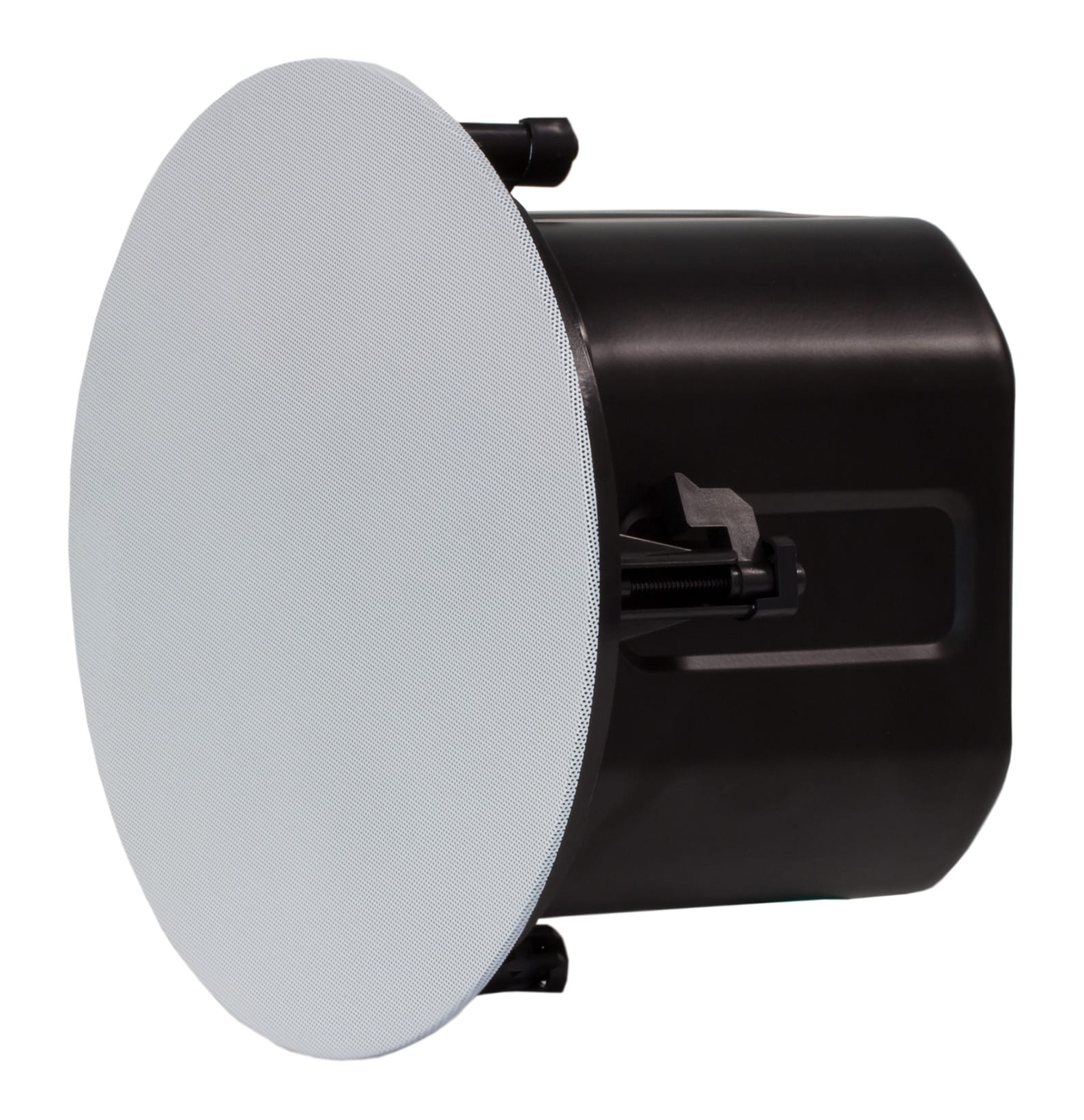

The MuxLab Dante Ceiling Speaker PoE, 40W comes with a 6.5” coaxial 40W loudspeaker driver that has excellent dispersion, wide bandwidth, and smooth frequency response which makes this the top choice for today’s overhead commercial and residential applications. To achieve the distribution of power supply, audio signal transmission, and control functions the Dante Ceiling Speaker PoE, 40W uses only a network cable, making it a very economical option with great energy savings.
Dante Network Transmission
Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.
PoE power supply
Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.
Technical parameters：
Speaker model: CS-6D
Unit configuration: 6.5"(165mm) Speaker unit，1" Tweeter
Frequency range: 95Hz-20kHz
Rated power: 50W
Sound pressure level: 112dB
Sensitivity: 93dB
Coverage Angle: 100°×100°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Product size (mm) : 264×210 (Ф×H)
Opening size (mm) : Ф221
The speaker is Power supply via POE+ (Power over Ethernet) . The speaker includes a Class-D audio power amplifier which provides effective use of power.
The audio network system is also compatible with AES67 which makes this speaker system to be flexible with other audio network systems.
The system comes with 4” 30W loudspeaker driver, MNS-4AXXOWS-1P that has excellent dispersion, wide bandwidth and smooth frequency response which makes this the top choice for today’s overhead commercial applications.
This assembly can be used in wide range of projects for paging and background music applications.
MNS-4AXXOWS-1P is powered by standard POE+ and has a MAX power of 30 watts.
[Model:MNS-4A11OWS-1P] 1 Channel, Only Master DANTE Speaker.
[Model:MNS-4A12OWS-1P] 1 Channel, Reserve Additional Passive Speaker Terminals.
[Model:MNS-4A22OWS-1P] 2 Channels [One Channel for Master Speaker, Another Channel for Passive Speaker], Reserve Additional Passive Speaker Terminals.
Dante Wall Mount Speaker System
| System Power Efficiency | > 85% |
| Frequency Range | ±3 dB (70 Hz to 18 kHz) |
| Maximum SPL | 115 dB (1 m) |
| Nominal Sensitivity | 98 dB (1 W, 1m) |
| Nominal Coverage Angles (Horizontal×Vertical) | 100°×60° |
| Nominal Impedance | 8 ohms |
| Drivers | Woofer: 1×10”; Tweeter: 1×1” |
| Interface | |
| Ethernet Port | 1 Dante Audio (RJ-45) |
| Cascade Port | 1 Analog Audio (speakON) |
| Power | |
| Power Consumption | 140 W, 8 ohms |
| PoE Standard | IEEE 802 3at (PoE+) |
| PoE Signaling | Powered Device (PD) |
| PoE Power | 85 W (peak power) |
| Enclosure | |
| Chassis Material | Wood |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 463×310×220 mm |
| Chassis Weight | 7 75 kg |
| Environment | |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance | |
| Regulatory Compliance | FCC, CCC, CE, RoHS |
