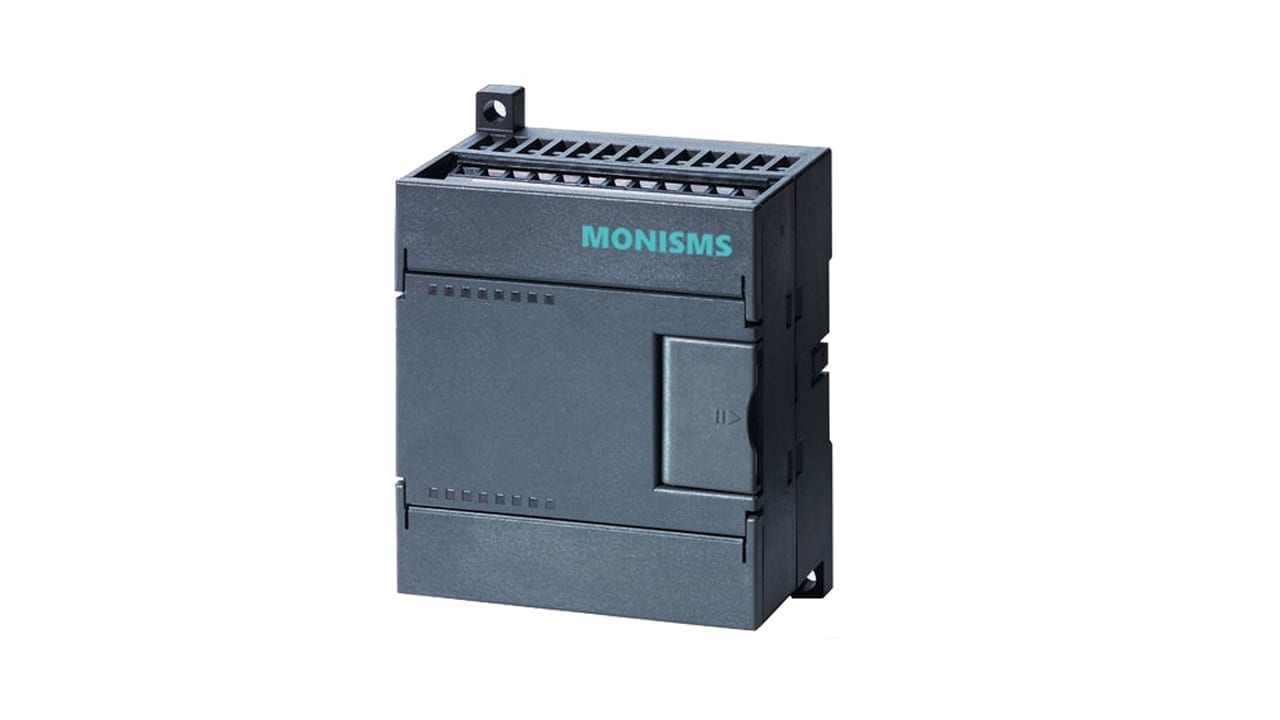

MONISMS – MNS-AMP230POE


More details

Similar Products

avn-ah8-iso-300dpi
  • Sonifex

Sonifex – AVN-AH8

The AVN-AH8 multi-channel headphone amplifier is a 1U rack-mount which distributes 2 sets of stereo audio to up to 8 different sets of headphones, fed from the Dante AoIP network. A typical application might be to provide common headphone feeds for guests in a radio studio, coming directly from the AoIP network.

Each output has front panel unbalanced 1/4” & 3.5mm jack sockets and a rotary level control. The front panel potentiometers adjust the headphone volumes from mute (fully anticlockwise) to 0dB of gain when fully clockwise. This is useful if the Dante stream level is low or high and requires adjusting.

There are 8 parallel 1/4” jacks on the rear panel, for ease of wiring if the unit is installed in an enclosed rack.

Each of the 8 professional headphone outputs can each select between 2 stereo Dante sources which are routed via Dante controller. The level of each stereo Dante stream can be adjusted ±12dB using one of the two front panel rotary controls. The unit supports AES67 operation and is Dante Domain Manager compliant.

The AVN-AH8 front panel contains a power (PoE) LED, a DC LED, a network link status LED, and a clock LED. A recessed reset switch is also provided.

The unit is powered via Power over Ethernet (PoE) or a 12VDC input via a locking 2.5mm DC Input, 2A minimum rating.

    Amplifiers
  • Dante Ch: 4x0
  • 16-bit, 24-bit, 32-bit
ashly-nXe-8002_600px|ashly-nXe-8002_600px
  • Ashly Audio

Ashly – nXe8002bd

The nXe8002bd is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
IS4120P-Front
  • Australian Monitor

Australian Monitor – IS4120P

The IS4120P is a Quad Channel 120W amplifier for low impedance and 70/100V Systems. Featuring ethernet control, DSP and ErP standby compliance. The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W. Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers. The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.
    Amplifiers
