Product Information
[Model:MNS-DANTE-I2S-TR-11-1P]: For networked audio transmitter / receiver products requiring 1×1 channels at 44.1 kHz, 48kHz, 88.2kHz and 96kHz [ 16, 24 or 32-bit ] sample rates.

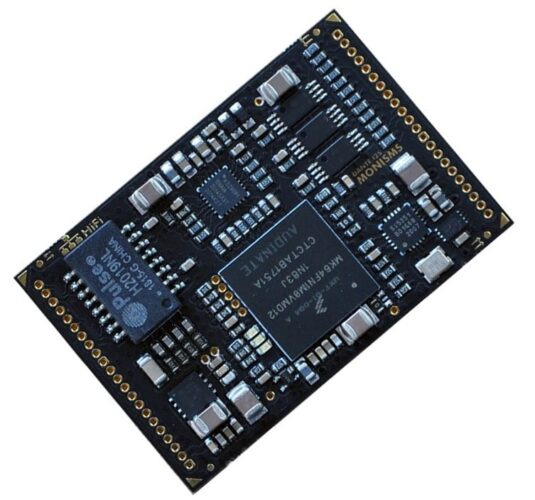

MONISMS – Dante I2S Module card MNS-DANTE-I2S-TR-11-1P
Similar Products
- Apogee
Apogee – Symphony I/O Mk II Connect 16 MP
The Symphony I/O Mk II 8×8 MP and Symphony I/O Mk II 16 MP Connect series audio interfaces deliver Symphony-quality sound with robust, high-performance AD/DA converters and Apogee’s Advanced Step Gain Architecture™ mic preamps at unprecedented prices. Using cutting edge components and a simplified, optimized analog circuit design, Apogee engineers are able to place more AD/DA converters and mic preamps on a single module board. The result is a single Symphony I/O Mk II with up 32 mic preamps at an unprecedented price for Symphony Quality and an extremely competitive price for the market. With industry leading sound quality and scalable, high density I/O configurations for Dante®, Pro Tools® HD and Thunderbolt® systems, the Symphony Connect series is the ideal choice for broadcast, live sound, education, post, house of worship and recording studio facilities.
- I/O Interfaces
- ProCo
ProCo – AoDiMX4
The AoDiMX4 provides one RJ45 Dante output and four Neutrik black XLR analog inputs.
The AoDiMX4 provides one RJ45 Dante output and four Neutrik black XLR analog inputs.
- I/O Interfaces
- ESI
ESI – planet 22x
planet 22x is a revolutionary new audio interface that combines the most modern networking audio technology based on the popular Dante protocol with the requirements of a professional high end desktop recording audio interface in studio and in mobile environments.
planet 22x is a revolutionary new audio interface that combines the most modern networking audio technology based on the popular Dante protocol with the requirements of a professional high end desktop recording audio interface in studio and in mobile environments.
The audio interface is equipped with ultra high quality 24-bit / 96kHz AD converters with 118dB(a) dynamic range and 24-bit / 96kHz DA converters with 123dB(a) dynamic range. The two balanced analog line inputs can also be used with the integrated ultra low noise and precise professional microphone preamplifiers and the special Hi-Z instrument input stages. The balanced master line output can be controlled with a high precission master level step-potentiometer, plus there is a high quality headphone amplifier on the unit.
planet 22x can be powered either via an included 12V DC power supply or via the network cable as a PoE (Power over Ethernet) device. This makes it possible to use the interface even when there is no power outlet close by.
By supporting Dante, planet 22x combines and works with any other Dante devices in an IP audio network, which makes it also a cost effective solution to extend any existing network with additional audio channels, yet it has also been designed to be a flexible professional audio interface using the Dante Virtual Soundcard for any modern recording applications on both Mac and PC - in any professional studio environment.
Features
- Dante network audio interface with 2 analog inputs and 2 analog outputs
- 2 balanced XLR / TRS combo inputs
- 2 balanced XLR outputs
- high end 24-bit / 96kHz AD converters with 118dB(a) dynamic range
- high end 24-bit / 96kHz DA converters with 123dB(a) dynamic range
- per channel professional low noise microphone preamplifiert with adjustable gain
- +48V phantom power for connected microphones
- per channel high quality Hi-Z instrument input stage
- precise step-potentiometer to control the master output level of the line outputs
- high quality adjustable headphone output
- 12V DC power supply included
- power supply via network cable possible (PoE / Power over Ethernet)
- license of the Dante Virtual Soundcard for Mac / PC included
- supports Windows 7, Windows 8.1 and Windows 10 with WDM and ASIO 2.0
- supports macOS via CoreAudio
- includes license of Deckadance LE from Stanton
- includes Bitwig Studio 8-Track digital audio workstation software
- dimensions roughly 17.5cm x 12.0cm x 4.5cm
- I/O Interfaces
