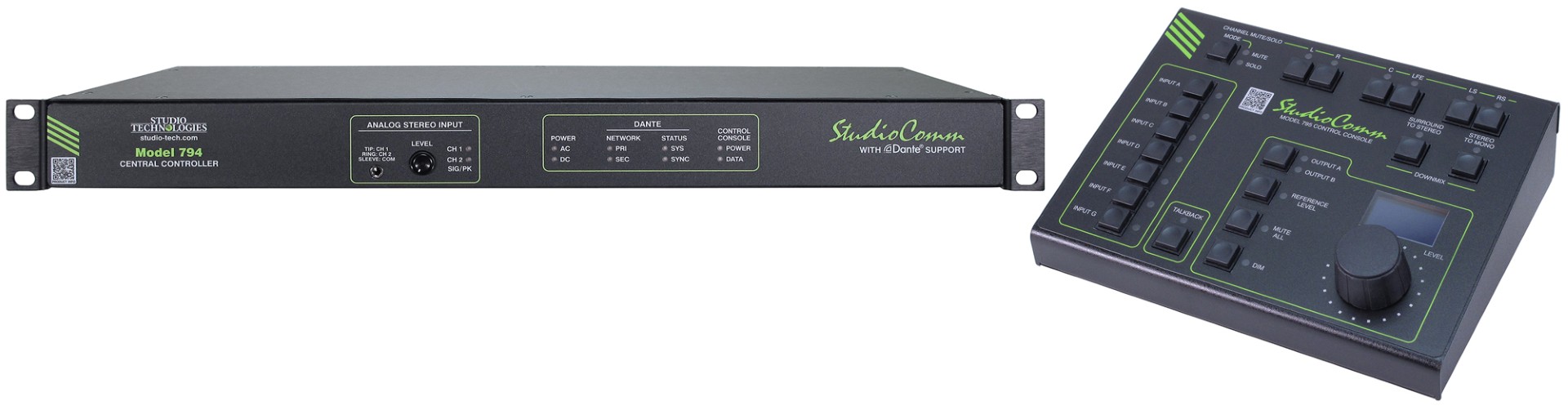

Model 794 Central Controller and Model 795 Control Console

A StudioComm for Dante system designed for supporting 5.1 and stereo monitoring applications. Dante and analog inputs and outputs. Features include two 5.1 Dante digital audio inputs, two stereo Dante digital audio inputs, one 5.1 analog audio input, and two stereo analog line inputs.

Also includes two 5.1 Dante digital audio outputs, two stereo Dante digital audio outputs, one 5.1 analog audio output, and one stereo analog audio output. Optional AES3 balanced (one 25-pin D-sub) or unbalanced (four BNCs) digital 5.1 surround and stereo inputs can be added. Includes bass management, downmix, and cue-mix capability.

Three configurable Ethernet network interfaces; two for transporting audio and the third for accessing the management menu system. Includes 9-pin D-sub cable for linking Model 794 with Model 795. Powered by 100-240 Vac . Can also be powered by an external source of 12 Vdc

• Dante Ch: 20x20
