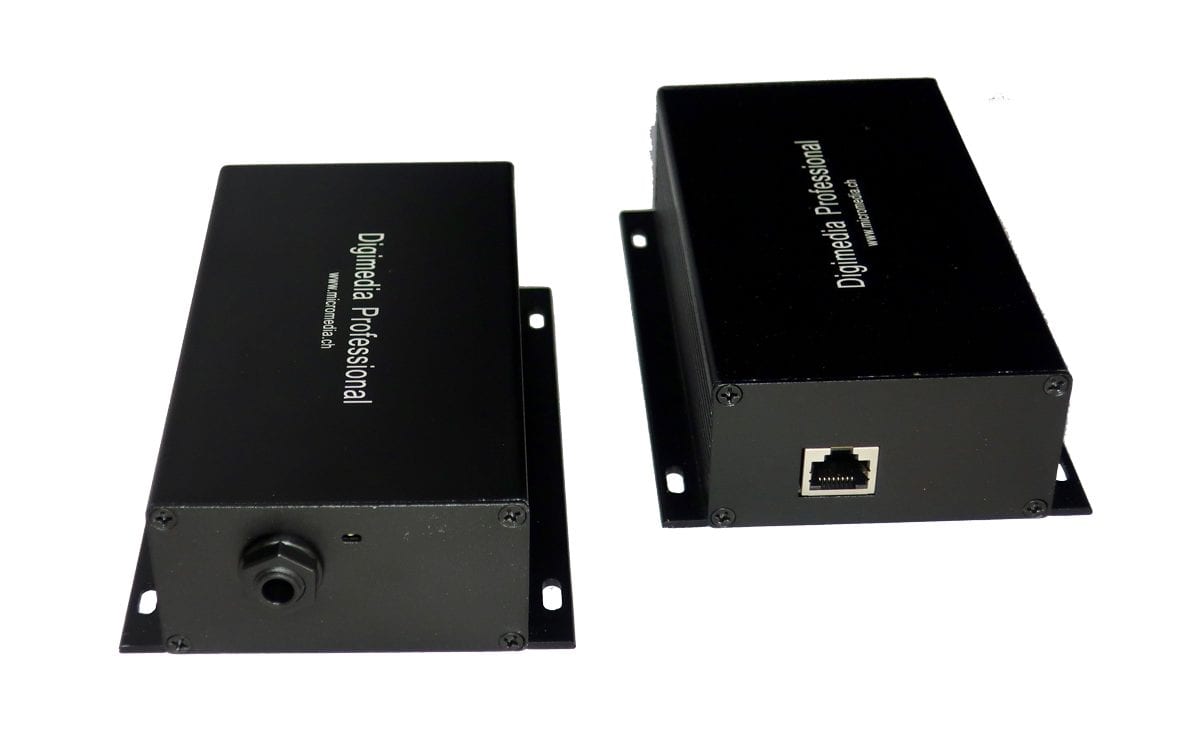

Micromedia – Digimedia HPA Pro

I/O Interfaces

More details

Similar Products

Yamaha_-_SWP1
  • Yamaha

Yamaha – SWP1 Series

SWP1 series network switches are a solution the pro audio market has been waiting for, offering an ideal balance of IT and pro audio know-how that only Yamaha can provide.The SWP1 series makes audio network setup, monitoring, and operation easier and more convenient than ever before. Complex network switch setup that was previously better left to an IT technician can now be easily accomplished by anyone. A simple switch setting is all it takes to optimize SWP1 series network switches for Dante operation, and a dedicated Windows application provides “network visibility” for comprehensive monitoring and control.Yamaha first entered the network device business in 1995, and has grown to hold a significant share of Japan’s small to medium enterprise and SOHO network market. Yamaha gigabit L2 switches that could be linked to Yamaha routers/firewalls were introduced in 2011, with features that significantly reduced the network setup, maintenance, and management workload.20 years later audio networking has become one of the fastest growing, most highly valued technologies in the live sound and pro audio fields. An expanding range of Dante capable Yamaha products, including the highly regarded CL series digital mixing consoles, continues to lead the way. SWP1 series network switches are a solution the pro audio market has been waiting for, offering an ideal balance of IT and pro audio know-how that only Yamaha can provide.The SWP1 series makes audio network setup, monitoring, and operation easier and more convenient than ever before. The SWP1 Series consists of the following:
    I/O Interfaces
See the product
AudioScience - Iyo Dante
  • AudioScience

AudioScience – Iyo Dante 16.0MD

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 16.0MD provides 16 balanced analog audio inputs and 0 outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. With DB-25/AES59 terminations.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in Livewire+ AES67 interoperability mode.

    I/O Interfaces
  • Dante Ch: 16x0
  • 24-bit
See the product
rdl-ddb-bn2m_1200px
  • RDL

RDL – DDB-BN2M

The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block.  The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2M. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN2M fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN2M is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN2M. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN2M in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN2M is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN2M’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
