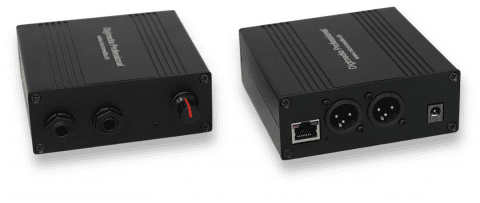

Micromedia – Digimedia DAC

I/O Interfaces

More details

Similar Products

proco-aodom-2
  • ProCo

ProCo – AoD-FAN3-2XM

The AoDoM 2 channel provides one RJ45 Dante input and two Neutrik NC3MXX-BAG series black XLR analog outputs. Using our rugged aluminum extrusion channels and hand soldered, 3 ft. analog audio tails, ProCo AoDoM modules provide simple connection of analog equipment to a Dante network and provide studio-quality, low-latency audio via the XLR connectors. Comaptible with any Dante ecosystem and provides line level analog audio signal to output devices.

  • Dante audio input
  • Two channels of analog output
  • Rugged aluminum extrusion housing
  • resilient cable strain relief
  • Neutrik black XLR connectors
  • 3 ft. ProCo MIC3 balanced cable with braises shielf
  • RJ45 metal connector with integrated LED's
  • 1 year limited warranty
    I/O Interfaces
See the product
musicrown-df16-8mne|musicrown-df16-8mne
  • Musicrown

Musicrown – DF16.8MNE

Musicrown's DF16.8MNE is a network digital matrix processor. Musicrown's DF16.8MNE is a network digital matrix processor.
  • 32 bit SHARC DSP, 96kHz sampling rate, 24 bit AD/DA convert.
  • 22x12 channels whole sound mixing matrix design, including 16 local analog input channels, 8 local analog output channels, 4 Dante network input channels and 4 Dante network output channels, 1 AUX internal sound mixing channel, 1 double effector internal marshaling channel.
  • Fully supports scalable DANTE digital network audio card and AEC automatic echo noise cancellation card, the users can freely configure and choose according to their requirements.
  • Dante digital network audio card configuration is a double standard network interface, which fully supports the function of unite switching and hot backup, hardware system can distinguish automatically, can use immediately when it inserts. Software internal and local analog signal can realize fully sound mixing matrix processing. Each channel has independent DSP processing function.
  •  AEC automatic echo cancellation card has powerful automatic echo cancellation function, automatic feedback cancellation and system environmental noise filtering. Effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminates environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan. Making sure any environment have a noise-free, high definition audio and video system for many conference applications.
  •  AUX channel has powerful mixing function, such as threshold, level, attack time, release time, continually, adjustment, also with the automatic function of camera-tracking, threshold, level, attack& release time. And has independent PEQ processing function.
  • Unique design for EFX channel, has professional ECHO&REVERB double engine multiple stereo effectors inside. Can realize the meeting according to different voices to beautify and modify personalized , and also perfectly support various performance and karaoke effector requirement, very suitable for conference rooms, multifunctional halls, hotels, private clubs and other complex, with multiple function demand for the occasion.
  • Each analog input channels with +48V phantom power, MIC/LINK input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • Front panel has level indicator for input/output, USB port, standard Ethernet remote control RJ45 port and RS232&485 at rear panel. IP and ID address can set, network and unite management can realize maximal 250 units link control, but also has remote visit password protected function, make the system more stable and safe.
  • Design has thorough control code, fully support the third-party centre control and management, including all volume control, preset scene recall, parameter inquire and return code, current level return display, every input and output channels control. Etc.
  • 12 user presets can be save and recall, system work in power-off memory status, ensure the date would not lose.
    I/O Interfaces
See the product
0114755_unterputzanschluss-mit-xlr-input-female-auf-d
  • promedias

promedias – proDT XI UP

Flush-mounted connection with XLR Input female to Dante, EDIZIOdue

  • AES67 & DDM ready!
  • 1x0 LINE IN (XLR female)
  • PoE / 5VDC Input DANTE® Broadway
  • Sample Rate: max. 192kHz | Latency: min. 0.25ms
  • Network Speed: 1Gb/s / 100Mb/s
  • Dimensions: Gr. I (1x1) - 88x88x72mm bzw. 67mm
  • Installation dimensions: Ø64x60mm bzw. Ø60x60mm (cutout x depth)
  • Color: white (Feller 61), similar to RAL 9010 (also available as standard, e.g. black 60 or option RAL/NCS colour!)
    I/O Interfaces
See the product
