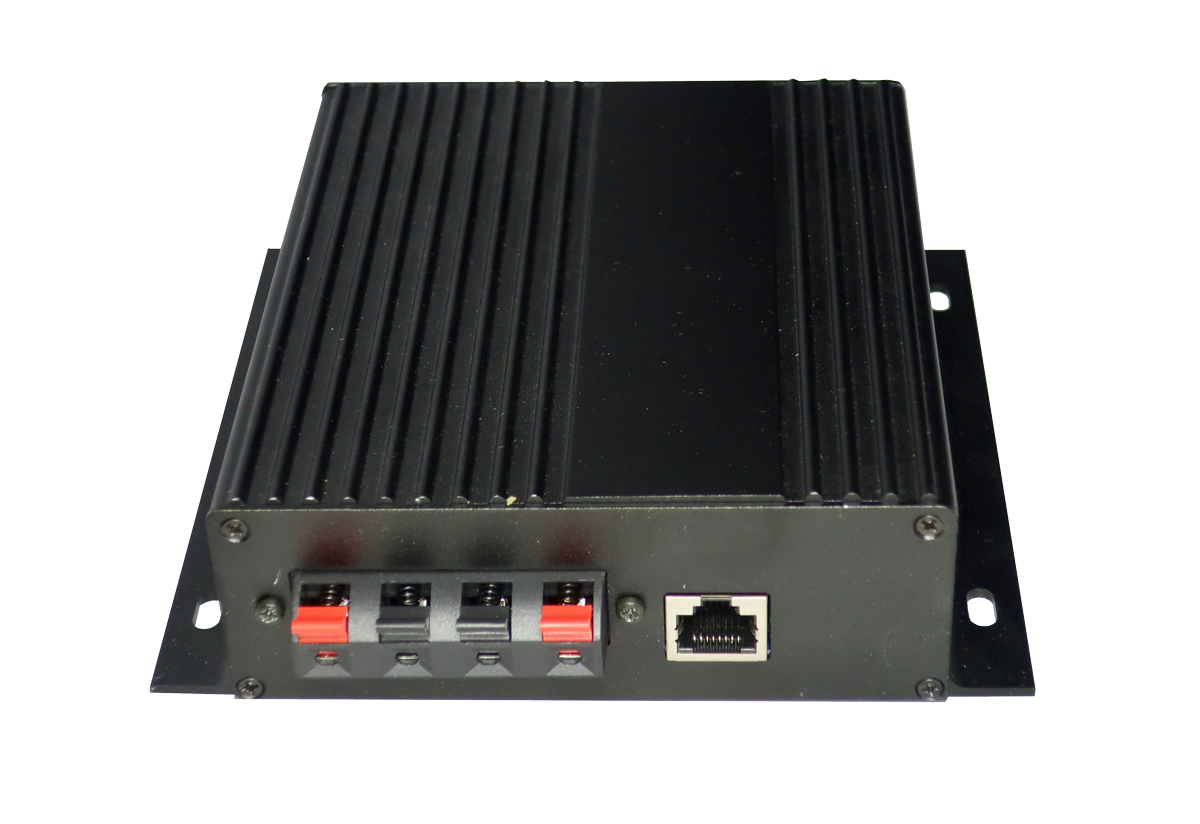

Micromedia – Digimedia AMP Pro

I/O Interfaces

More details

Similar Products

db-audiotechnik-ds10_600px|db-audiotechnik-ds10_600px
  • d&b audiotechnik

d&b audiotechnik – DS10

The DS10 Audio network bridge interfaces between Dante networks and AES3 digital audio signals, while also providing distribution of Ethernet control data The DS10 Audio network bridge interfaces between Dante networks and AES3 digital audio signals, while also providing distribution of Ethernet control data. Positioned within the signal chain in front of the amplifiers, this 1 RU device expands the d&b system approach in both mobile and installation environments. Each unit can deliver up to sixteen Dante network channels via AES3 digital signal outputs. The AES3 channel streams from the DS10 carry meta data with Dante channel labels and cabling information to the four channel d&b amplifiers. Additionally, four AES3 input channels provide access to the Dante audio network for applications such as a break-in from a Front of House console. The DS10 incorporates an integrated 5-port switch, offering a primary and redundant network for the Dante protocol, as well as advanced functions such as Multicast Filtering and VLAN modes. This extensive switch flexibility provides extended connectivity for a laptop to control the d&b amplifiers using the R1 Remote control software via the OCA (Open Control Architecture) protocol. Using the DS10 Audio network bridge, audio signals and remote control data can be combined using a single Ethernet cable. The front panel of the DS10 is designed to match the I/O panel of the D80 Touring rack assembly. This ensures a simple integration within existing system configurations. The DS10 features a power supply suitable for mains voltages 100 V – 240 V, 50 – 60 Hz, with Overvoltage protection of up to 400 V.
    I/O Interfaces
See the product
ALF-DAIO-USB
  • Alfatron Electronics

ALF-DAIO-USB

The ALF-DAIO-USB USB to Dante I/O adapter is a complete high-performance Dante device with the automation and ease-of-use features that make Dante the world's most popular audio networking solution. The Dante I/O Adapter is compatible with all Dante interfaces and provides all the features you would expect from a Dante audio network. Each adapter is capable of providing high-fidelity audio reproduction, ultra-low latency, and sample-accurate synchronization across the entire network.
    I/O Interfaces
  • Dante Ch: 2x2
  • 24-bit
See the product
madi-bridge
  • Solid State Logic

SSL – MADI-Bridge

The MADI-Bridge is a broadcast specification bridge between the MADI audio format and Dante. It is a bi-directional interface that can deliver 64 channels @ 48kHz (32 channels at 96kHz, 16 channels @ 192kHz). MADI-Bridge ‘Split Mode’ enables 2 x 32 channels @ 96kHz streams to be merged to form a single 64 channel @ 48kHz stream.

MADI-Bridge also features bidirectional sample rate conversion between any asynchronous sample rates, from 44.1kHz to 192kHz. MADI-Bridge features redundant PSU, MADI and IP Network ports and in addition to the inbuilt clock redundancy options in Dante Controller, the MADI-Bridge also includes a pair of redundant sync inputs for use as a self-redundant Dante Grand master clock. 32bit MADI control tunnelling allows a pair of MADI-Bridges to be used to pass audio and user bits (including control data) of a whole MADI stream across a network.

    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit, 32-bit
See the product
