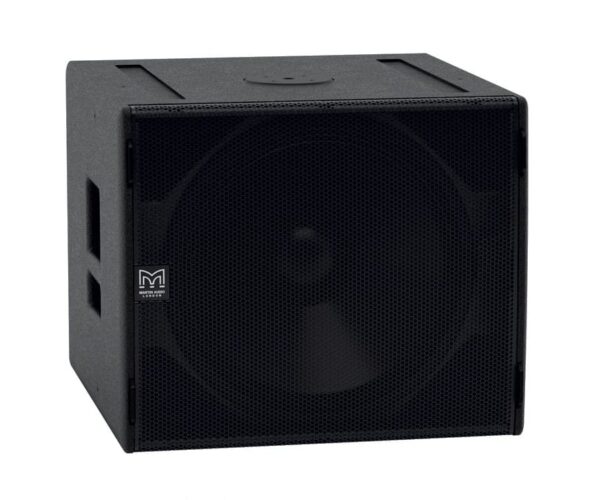

The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.
The SX118 is a compact, high performance subwoofer that extends the low frequency operating range of the system to 47Hz and provides exceptional low frequency output for such a compact enclosure.
The SX118 is Dante-enabled when paired with the iKon ik42 or iKon ik81 amplifers.
Upgrading arrayable loudspeaker concept to a brand-new level, dBTechnologies proudly presents VIO C, a complete series of 2-way active line-source speakers for the widest range of venues and applications, from installed PA systems to sound reinforcement for touring.
Designed to create horizontal or vertical line-source arrays and featuring a simple yet rapid rigging system, VIO C offers the most flexible coverage options as well as the powerful and pure acoustic performance that distinguishes all VIO cabinets. The series encompasses 3 enclosures housing premium neodymium components: VIO C12 (1x12”, 3.5” v.c. LF and 1x1.4”exit, 3” v.c. HF), VIO C15 (1x15”, 3.5” v.c. LF and 1x1.4” exit, 3” v.c. HF) and VIO C212 (2x12”, 3” v.c. LF and 1x 1.4”exit, 3” v.c. HF ). The whole series is equipped with latest generation 1600 W RMS Class D Amp module Digipro G4 driving a powerful DSP and allowing each system to deliver impressive SPL (139 dB for VIO C12, 140 dB for VIO C15, and 141 dB for VIO C212).
Speaker model: CX112P
Speaker type: 12”Active coaxial loudspeaker
Unit configuration: LF：12" unit 2.5"(65mm）Voice coil
HF：1.7"（44mm）Voice coil driver
Frequency response: 70Hz-17kHz(-10dB)
Rated power: LF：250W， HF：50W
Sensitivity: LF：101dB， HF：109dB
Sound pressure level： 131dB (peak)
Radiation Angle: 60°×60°
Crossover point: DSP control
Size (mm) : 583×376×377 (W×H×D)
Module amplifier power: HF：150W，LF：500W (Class D)
Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output
Module DSP control: RS485、USB or Dante
