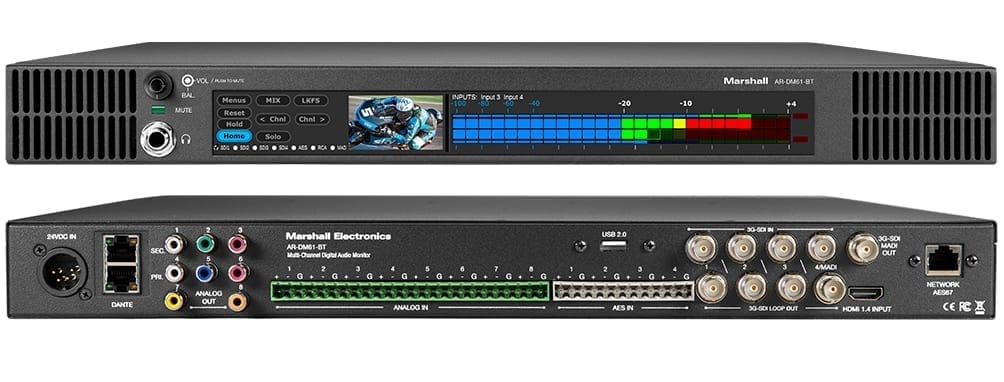

Marshall Electronics – AR-DM61-BT

Audio Monitors

More details

Similar Products

lectrosonics-duet-iem-system_750px
  • Lectrosonics

Lectrosonics – M2 Duet System

The Duet digital wireless monitor system represents a significant step forward for touring performers and other professionals requiring high definition audio in their ears. With 24 bit digital audio, low latency, Dante inputs and a compact, lightweight, diversity bodypack unit, the Duet system should please even the most demanding users, both on and behind the stage.

The new Duet digital wireless monitor system consists of the M2T dual-stereo half-rack transmitter and M2R diversity belt pack receiver. The Duet covers the UHF frequencies of 470-608 MHz (138 MHz) in a single range, uses digital modulation for transmission, and can accept analog or Dante™ digital inputs. The new system can be considered a "wireless IEM" or a deluxe IFB product, designed and developed with professional touring, installation, theater, filmmaking and broadcast customers in mind.

The M2T half-rack transmitter houses two independent stereo transmitters allowing for up to four stereo or dual-mono transmissions in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors are full size XLR/TRS combo types for balanced line level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. A Dante Ultimo™ interface via dual RJ45 connectors accepts Dante networked audio inputs and can cascade the digital stream to additional units via CAT6 cables. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer™ software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.

The M2R bodypack receiver employs advanced antenna diversity switching during digital packet headers for seamless audio. The 24 bit digital audio stream guarantees high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive headphones or earphones to sufficient levels for stage performance or other noisy environments. A high-resolution, color LCD allows for a wide range of menu options, including precise limiter settings, using detailed graphics. The M2R runs on two AA batteries for an operating time of over 4 hours with alkaline cells.

    Audio Monitors
See the product
rtw-tm9
  • RTW

RTW – TouchMonitor TM9

The TouchMonitor TM9 offers a new level of audio metering with a 9" touch screen. The TouchMonitor TM9 offers a new level of audio metering with a 9" touch screen. Now with Dante™ AoIP, including AES67 mode, up to 32 channels of audio and redundant network support.
  • TM7 and TM9 with Dante AoIP, including AES67 mode
  • Up to 32 channels of audio to be monitored
  • Redundant network support
The new level The all-new audio metering units of the TouchMonitor range is RTW‘s answer to growing requirements in today‘s production, post-production, and broadcast world. Equipped with high-grade 7“ or 9“ touch screens and an easy-to-use GUI, TouchMonitor enters a new level of professional audio metering in terms of precision, performance, efficiency and flexibility. Simple and flexible The graphical user interface used in the TouchMonitor TM9 is controlled simply by using your finger or a mouse. Instruments can be scaled, randomly positioned and combined in almost every way for optimized use of available screen space. Even multiple instruments of the same type, assigned to different input channels and configurations, can be displayed simultaneously. Plus, a context-sensitive, on-screen help feature supports the user, allowing him to make setup changes with ease.  Expanded basic software and instruments The latest firmware version expands the basic software to 4-channel display, 4 x Mono, 2 x Stereo, 2 x Mono and 1 x Stereo can be measured without the need of an activated Multichannel licence. RTA provides a 1/12-octave mode, Cinema Loudness standards (LEQ(M), TASA, SAWA) have been implemented, and the Audio Vectorscope instrument allows up to 4 instances. The output routing can individually be adjusted for each preset, all presets can be exported or imported at the same time. Further details can be found in the Release Notes (included in the update package), or in the data sheet.
    Audio Monitors
See the product
tsl-products-mpa1-dante_600px|tsl-products-mpa1-dante_600px
  • TSL Products

TSL Products – MPA1 Dante

Specifically designed for use where operators need to create a custom mix from a DANTE stream. With powerful user features accessible via the web UI, the MPA1 Dante is simple to use and flexible enough to meet specific and demanding workflow requirements. Specifically designed for use where operators need to create a custom mix from a DANTE stream. With powerful user features accessible via the web UI, the MPA1 Dante is simple to use and flexible enough to meet specific and demanding workflow requirements.
    Audio Monitors
See the product
