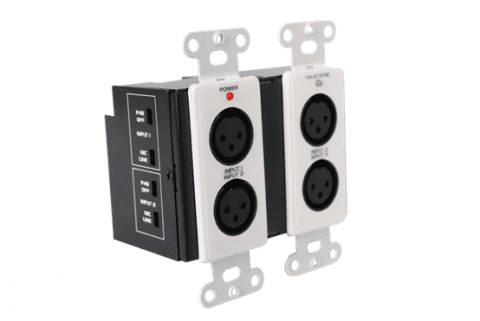

Mansion – DIC4323A

I/O Interfaces

More details

Similar Products

av-ln4
  • RDL

RDL – AV-LN4

The AV-LN4 is an interface that converts four line-level XLR inputs to Dante network audio channels. Special software is not required to configure the AV-LN4. A dual-LED VU meter displays the level for each. The AV-LN4 is a professional grade product for studio quality fidelity and low noise performance.

The AV-LN4 may be powered from an external 24 Vdc power supply, available separately. The AV-LN4 is equipped to operate from a PoE enabled network switch. The AV-LN4 will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an AV-LN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. Valid power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The AV-LN4 is constructed in a durable, professional all-metal enclosure suitable for use on stage or in studio, or mounted to any flat surface. For fixed installations, mounting brackets are included. The chassis is designed to protect the front panel slide switches from accidental damage. This full-featured AV-PAK product is engineered and manufactured in the U.S.A for continuous duty in demanding installations.

    I/O Interfaces
See the product
hugel-gpio
  • Hugel

Hugel – GPIO

With the GPIO module (GPM) GPIO signals can be attached to a Dante network. In potential free configuration 4 in and out can be used, in refrerence to a common potential up to 8 GPI / GPO's are available. The module is PoE powered (13W).

    I/O Interfaces
See the product
NetBox8_Front|NetBox8_Front
  • AEQ

AEQ – NetBOX 8 AD

NETBOX 8 AD inferface features 8 inputs and 8 outputs, organized in 4 mono analog and 2 digital stereo channels. Stereo digital ones can be configured as AES/EBU or SPDIF standards. The second digital stereo channel can also be switched to a USB connector to ease the connection to an audio workstation. It also provides 4 GPI and 4 GPO. The GPO port includes a power supply pin to feed the output circuitry. NETBOX 8 AD inferface features 8 inputs and 8 outputs, organized in 4 mono analog and 2 digital stereo channels. Stereo digital ones can be configured as AES/EBU or SPDIF standards. The second digital stereo channel can also be switched to a USB connector to ease the connection to an audio workstation. It also provides 4 GPI and 4 GPO. The GPO port includes a power supply pin to feed the output circuitry. Due to its small footprint, it can be useful to give IP access to analog or digital consoles that are not ready for this type of connectivity from factory, for recording rooms, talk-rooms or any other auxiliary location.
    I/O Interfaces
  • Dante Ch: 8x8
  • AES67 Enabled
See the product
