DSPs (Digital Signal Processors)

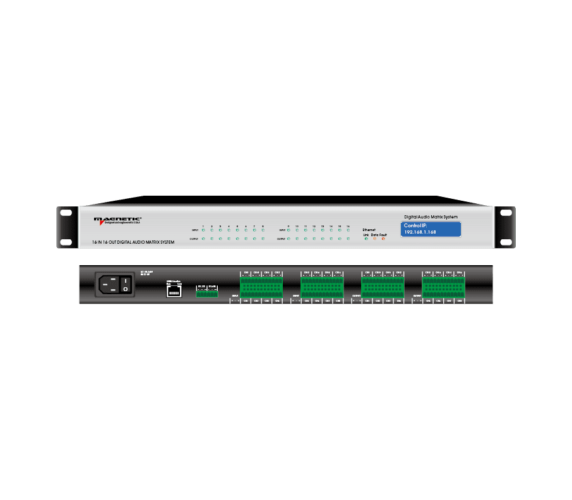

Magnetic – MA-1616Dante

Input Channels16
Output Channels16
Scenem anagement8 sets of pre -set scenes
Input channel featuresPre-amplification, signal generator, expander,compressor, automatic gain control, 5-section PE Q
Output channel features8-section PEQ, delayer, frequency divider, high – lowpass filter,lim iter
Sampling rate48kHz
Dynamic range from input tooutput>110dB
Phantom powerDC 48V
Input common-mode reject ion75dBu @ +20dBu,60Hz
Channel isolation105dB
Frequency response20~20kHz (±0.5dB )
Total harmonic distortion (THD+N )≤0.005% @1kHz,+4dBu
Max. input gain54dB
Input impedance2KΩbalance
Output impedance100 ohm
Max. output level20dBu
Power supplyAC 110V~230V AC, 50Hz /60 Hz
Working temperature0-40℃
