DSPs (Digital Signal Processors)

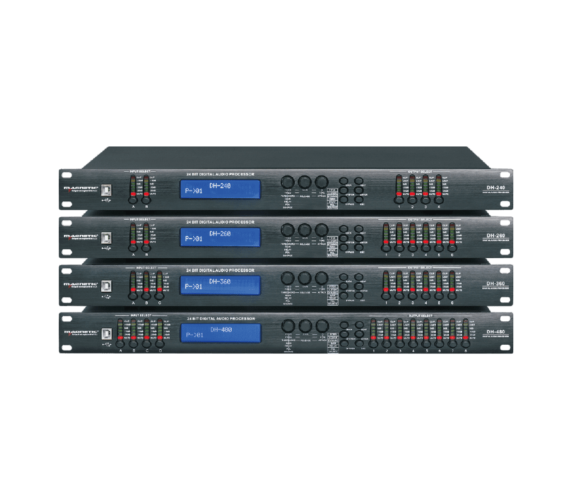

Magnetic – DH Series

The DH series contains four Dante-enabled models:

Magnetic – DH-240+Dante
Magnetic – DH-260+Dante
Magnetic – DH-360+Dante
Magnetic – DH-480+Dante

 ■ 4 signal inputs and 8 signal outputs (xlr, balanced)
■ Wifi control via usb or tcp/ip lan (ethernet)
■ 96khz sampling rate
■ 64 bit floating dsp
■ Dynamic range:>110db
■ Maximum input level at +23dbu
■ Maximum output level at +23dbu
■ Operational frequency range 20hz to 20khz
■ Processing delay:1000ms(input)1000ms(output)
■ latency:<0.2ms
■ 20×2 character blue crystal lcd display
■ 30 presets memory on hardware unit
■ 12 band fully parametric(frequency,q and gain)equalizer on each output channel and input channel
■ 180 phase inverter and mute button on each output
■ Limiter available on each output channel
■ For added safety of the speakers
■ USB interface for pc control
■ RS-485 interface
■ limiter:-20db`+20db
■ app for ios and android and ipad(new version)
■ all pass filter:adjustable frequency and q setting control
