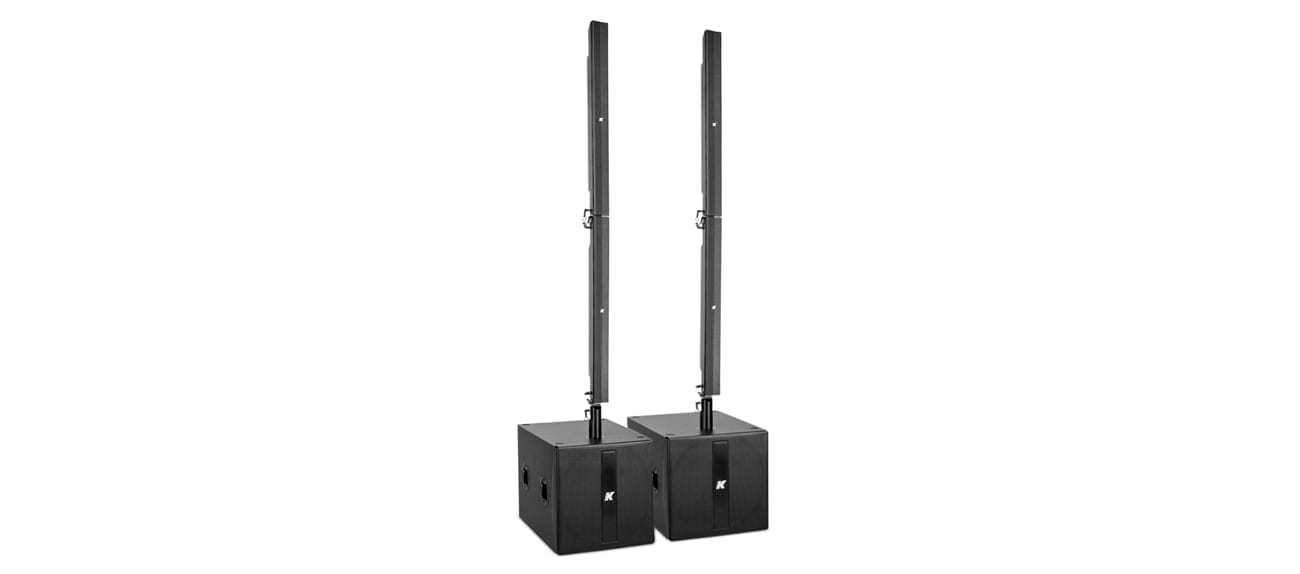

K-array – KR402 Mark I


More details

Similar Products

CNET6111
  • DMIX

DMIX – CNET12D

Technical parameters:

Speaker model: CNET12D

Speaker type: 12" Active two-division loudspeaker

Unit configuration: 12"(300mm) woofer 1.75"(44mm) Treble driver

Frequency response: 65Hz-19kHz

Rated power: 300W

Sound pressure level: 129dB

Sensitivity: 98dB

Rated impedance: 8Ω

Directivity (H×V) : 80°×50°

Dante Digital network interface: 2×RJ45 interface

Analog interface: 1×XLR Balanced input,1×XLR Balanced output

Active power amplifier module: 600W

Volume knob control: Yes

Central control interface: RS232

Size (mm) : 385×571×365 (W×H×D)

    Speakers
MLA208a
  • DMIX

DMIX – MLA 208a

Speaker model: MLA 208a

Speaker type: Dual 8 "dichotomous active line array loudspeakers

Unit configuration: LF: 2×8"woofer 2"(50mm) Voice coil

HF: 2×1.4"(34mm) Voice coil high frequency driver

Frequency response: 75Hz-19kHz (-10dB)

Rated power: LF: 300W , HF: 60W

Sensitivity: LF: 98dB , HF: 107dB

Sound pressure level: 130dB (peak)

Radiation Angle: 110°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×259×416 (W×H×D)

Module amplifier power: HF:300W,LF:1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante

    Speakers
  • K-array

Azimut-KAMUT2L II

The Aziumt-KAMUT2L is a complete system composed of two 10cm-long Lyzard-KZ14 I loudspeakers in Anticorodal aluminum, an ultra-compact stainless steel Rumble-KU44-2 subwoofer easy for hiding in plain sight and a 144x144x46cm (5.7x5.7x1.8in) Kommander-KA02 I amplifier with remote control.
    Speakers
  • Dante Ch: 2x2
