Just Add Power - VBS-HDIP-767DSS

Just Add Power – VBS-HDIP-767DSS

Product Information

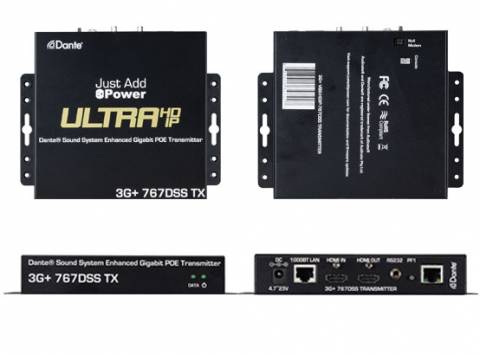

The Just Add Power 3G+ Dante® Sound System Transmitter adds compatibility with Dante® and AES67 audio networks to the UltraHD over IP system.

Input up to 8 channels into the Dante® network. Extract up to 8 channels from the Dante® network, embed onto the HD over IP signal, and distribute across the Just Add Power network. Mix-and-match! The 3G+ Dante® Sound System Transmitter is fully compatible with all 2GΩ/3G and 3G devices. Not just for Dante®. AES67 compatibility for interoperability with other leading audio-over-IP technologies.

Datasheet

Profitt – PEAI-9088

PEAI-9088 provides for analog or AES3 digital audio transmission over local network (AoIP) via Dante or AES67 protocol. 100/1000Mbps Ethernet supported. Up to sixteen analog (balanced) audio channels (8 in, 8 out) or eight AES3 signals (4 in, 4 out). Audio formats supported are denoted by the XXYY model index: XX designate the input format (A - analog stereo pair, E - two AES3 channels), YY designate the outputs formats in the same way. Auxiliary Ethernet port provides redundant network connectivity. Capability of Ethernet SFP provides an optical connectivity (SFP module sold separately). Configuration and monitoring is made with a dedicated Dante Controller software package over Ethernet. Separate mains connectors for the main and stand-by PSUs. Hot-swappable PSU.

I/O Interfaces

See the product

tm stagetec systems

tm stagetec systems – DIO

The tm stagetec systems DIO is the army knife for audio, with an impressive range of tools and converters. 2 port Ethernet switch (1x 1Gb Copper and 1x SFP cage), Dante™ audio, AES Input and Output, Mic Input, Line Input, Line Output, Headphone Output with external volume control and 2 x GPIO. The DIO is powered by PoE (Power over Ethernet) or runs via an external PSU. Redundancy is provided between both power sources!

1000 point FIR filters on outputs. (perfect for PA integration with existing 100/70V systems)
Customised DSP options
Native Delec communication panel integration

I/O Interfaces

See the product

BARE

BARE – TNT-1608D

The audio processing center is an audio processor with 24 inputs (16 analog and 8 digital) and 24 outputs (8 analog and 16 digital), using industry-leading ADI DSP SHARC21489, the highest operating frequency can reach 450MHz. The input and output modules of DSP can be customized according to the actual situation. At the same time, it has independent AFC, AEC, ANS, AGC, gain sharing automatic mixing, threshold automatic mixing and other processing modules to meet the audio processor and transmission needs of various places. Such as meeting rooms, multi-function halls, conference center auditoriums, administrative centers, etc.

I/O Interfaces

See the product

Just Add Power – VBS-HDIP-767DSS

Product Information

Similar Products

Profitt – PEAI-9088

tm stagetec systems – DIO

BARE – TNT-1608D
