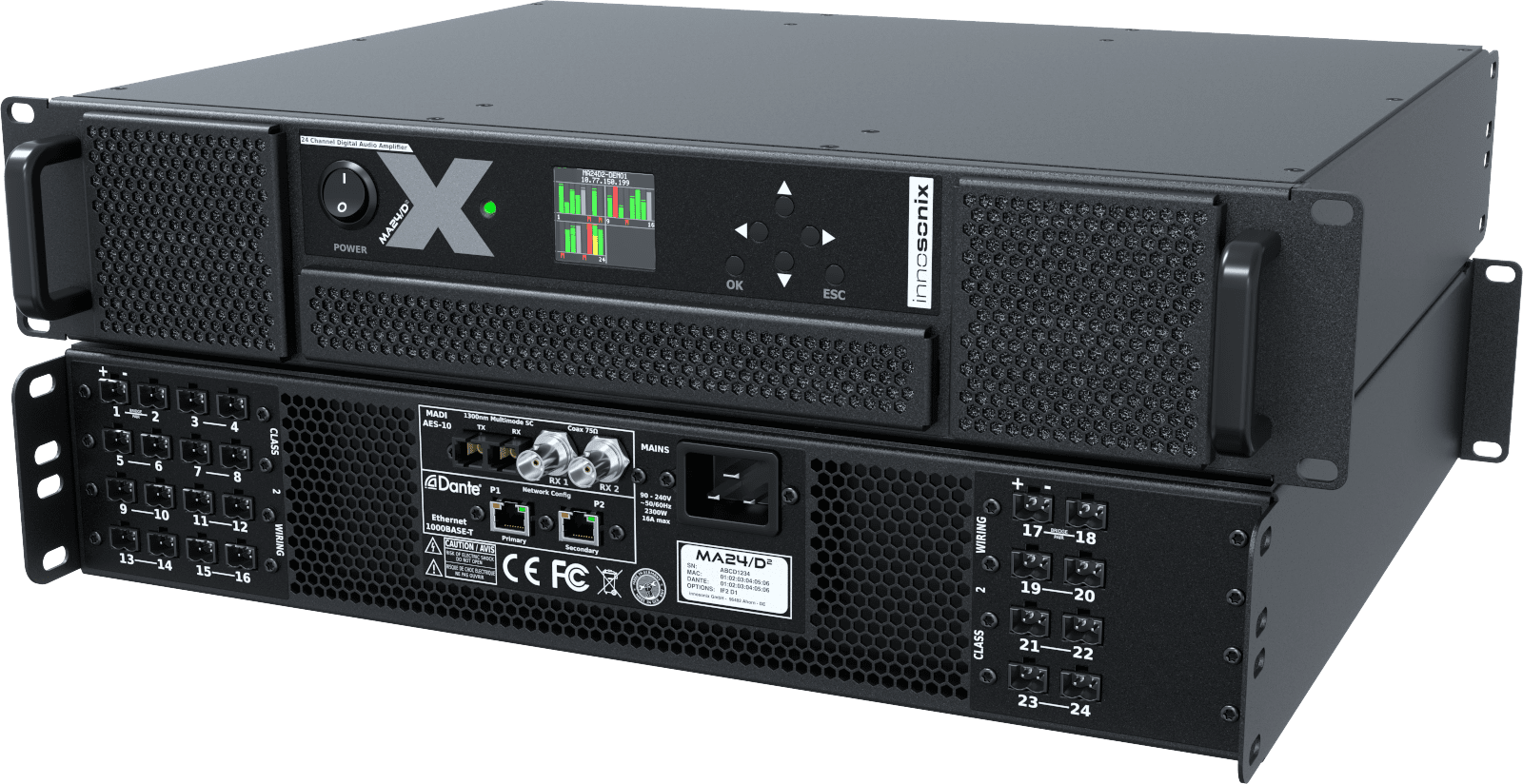

Innosonix – MA24/D²

Amplifiers

More details

Similar Products

GPA410_D4
  • Kingray

Kingray – GPA410_D4

GPA410_D4 is a 4-channel class-D amplifiers with DSP functions and touch screen display, Integrated with 4 analog and 4 channel AES3 digital input, optional 4 channel Dante input. Each channel can select the signal independently and set the priority to realize the signal redundancy backup function. Power, current, voltage, temperature and impedance of power amplifier can be monitored in real time, and power limit and current and voltage limit can be set freely. Application used in performance and conference.

*support 4 channel *8Ω1000W

*support constant voltage and constant resistance: 8Ω, 4Ω, 100V, 70V

*FIR function, 4*2048 TAPS

*4.3 inch IPS display, 2U size

*Voltage operation with support for 180/264VAC

*Mconsole software control by network with 2*RJ45

    Amplifiers
See the product
crown-audio-DCi-4-600da|crown-audio-DCi-4-600da
  • Crown Audio

Crown Audio – Dci 4|600DA

Crown Audio's DCi 4|600DA is a four-channel, 600W Power Amplifier with Dante™ / AES67 Networked Audio, 2/4/8Ω and 70V/100V. Crown Audio's DCi 4|600DA is a four-channel, 600W Power Amplifier with Dante™ / AES67 Networked Audio, 2/4/8Ω and 70V/100V. For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.
    Amplifiers
  • Dante Ch: 16x16
  • 24-bit
See the product
rdl-sf-np16e
  • RDL

RDL – SF-NP16E

The SF-NP16E is an audio power amplifier that converts one Dante network audio channel to a 70 V or 100 V constant voltage amplified output.  The SF-NP16E is an audio power amplifier that converts one Dante network audio channel to a 70 V or 100 V constant voltage amplified output. The output provides 16 watts for a network digital audio level of 0 dBFS. Special software is not required to configure the module. The SF-NP16E is equipped to operate from a PoE+ enabled network switch. The SF-NP16E may be powered from an external 24 Vdc power supply, available separately. If a PoE+ powered device instantaneously demands excessive power from a PoE+ port, that port can shut off its output voltage, causing a prolonged disruption of the device operation. The SF-NP16E monitors the amplifier power and limits the current to protect the PoE+ port against shutting down even during extreme feedback or square wave modulation conditions. A red rear-panel PORT PROTECT LED flashes when the SF-NP16E reduces power consumption to prevent shutdown of the PoE+ port voltage. The SF-NP16E is equipped with an internal VCA for setting the output level. A detachable terminal block provides for the connection of an external 10 KΩ potentiometer or a 0 to 10 Vdc control voltage. The amplifier gain remains at maximum when the VCA input terminal is not connected. RDL remote controls are available to provide single-turn, multi-turn (rotary encoder) or pushbutton (ramp or fixed level selection) user level control. VCA control insures long term noise-free level adjustment. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stage produces minimal heat for all levels of expected voice or music modulation. An LED MUTE indicator glows yellow when the output is muted. Valid synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-NP16E is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems. Features
  • 16 Watts RMS Constant Voltage Amplifier
  • 70 V or 100 V Output
  • Converts One Dante Network Audio Signal to a Mono Constant Voltage Output
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • 0 dBFS Input for 16 W Output
  • Automatically limits supply current to protect against PoE+ port shutdown
  • VCA Control on Detachable Terminal Block
  • External Control Using 10 KΩ Potentiometer or 0 to 10 Vdc
  • Compatible with RDL Remote Level Controls
  • Special Software Not Required for Module Setup
  • LED Indicator for Network Sync
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Plenum Rated per UL 2043 Standard
    Amplifiers
See the product
