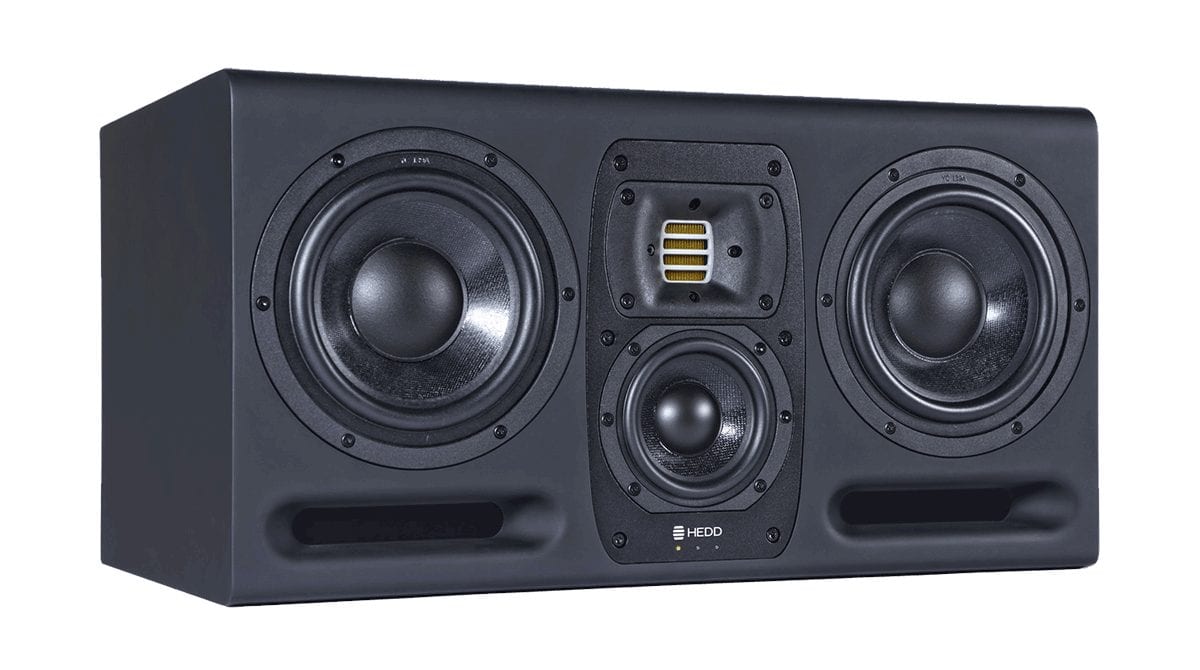

HEDD – Series ONE Type 30

Speakers

More details

Similar Products

SLB115a
  • DMIX

DMIX – SLB115a

The SLB 115A is a small active compact line array speaker system designed to achieve high fidelity and ultra high definition amplification in small and medium sized applications. Lightweight and flexible with excellent performance, compact box design and special mounting components make installation easy and quick.

The SLB 115A active Linear array ULTRA-low frequency speaker has a built-in three-channel power amplifier module with a high-performance digital signal processing system. Two full-frequency channels drive the system with three SLA 206, and the remaining channel drives the ULTRA-low frequency SLB 115A. With two balanced line input and one signal output port, plus one power input and output port, fully meet the use requirements, but also convenient system expansion. With the high performance 2 in 3 out DSP digital audio signal processor, various scene parameters can be set according to different application requirements and different number of speakers. Through the control software setting and quick key selection, greatly simplifies the system construction process, full frequency channel and ultra low frequency channel can be adjusted independently, can achieve the best effect in a very short time. The SLB 115A uses a high-efficiency class D power amplifier design, a patented L-shaped heat dissipation design combined with an integrated cast aluminum back plate for heat dissipation, resulting in a high energy conversion efficiency of up to 2x700W+1800W, while being compact and stable in performance.

    Speakers
See the product
2017225113044|2017225113044 (1)
  • BARE

BARE – BR-10E6

The speaker uses a patented design of a 4-inch bass + 3 0.5-inch tweeter coaxial unit. In terms of sound quality, it not only has the characteristics of high phase fidelity of the full-range speaker, but also realizes the output of a more natural sound in the form of a standard point source. At the same time, it also has the powerful expressive power of the crossover speakers in the high and low frequencies, making its sound level more distinct and the sense of detail more prominent. Three tweeters are arranged in a vertical line to form a linear array pattern, which makes the high-frequency horizontal pointing wider and can take care of more areas. The coaxial unit design can reduce the volume of the speaker as much as possible, and the appearance is more compact and elegant.

The speakers use Dante digital audio interface and POE network power supply to drive the power amplifier module. Only one network cable is needed to supply audio signals and power at the same time. In a digital audio system, our product is a terminal node that provides the terminal playback function of a digital audio system.

    Speakers
See the product
CgAGe1w-nQOANnFaAAUBUn_C5d0930
  • Soundking

Soundking – P14WA

Features

1). PoE-based active speaker P14WA is an audio power module with 60w/4Ω output, which adopts the latest PoE technical standard. With only one network cable can realize power supply and Dante digital audio signal transmission and control;

2). Integrate PoE power supply and Dante audio data transmission to simplify cable layout and conform to Ethernet engineering specifications;

3). Digital and networked audio transmission realizes, high expendable system;

4). Distributed digital audio system: a large audio system of multiple input and output devices, decentralized audio device connection,  software routing and signal distribution;

5). Using Dante Controller software can easily realize fully networked Dante device detection and audio routing configuration;

6). Power amplifier features single RJ-45, 100Mbps of Dante audio transmission rate, routing control via Dante Controller, parametric volume, mute, limit, EQ and noise gate(optional) control, over-current, high temperature, overload/short circuit protection, natural heat dissipation;

7). Digital EQ adjustment and crossover. User can easily set EQ points and crossover frequencies matching the speaker.

The parameters and data set by user can be saved to the computer, the data on the computer and the machine can be read and called from each other;

8). PoE network cabling adopts the 48V DC power supply carried by Ethernet cable, free from all restrictions of high-voltage AD cabling, better satisfying the safety and fire prevention regulations;

9). Can be widely used in banquet hall/function hall, classroom, conference room, theme park, etc.

    Speakers
See the product
