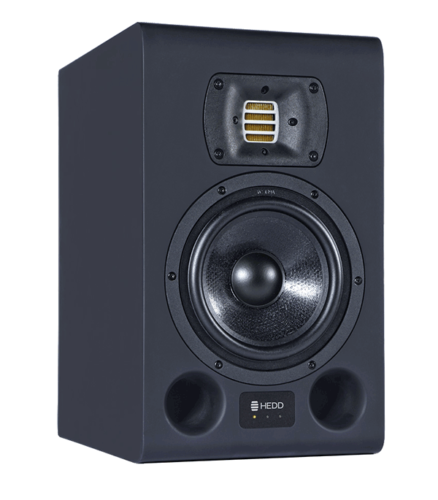

HEDD – Series ONE Type 07

Speakers

More details

Similar Products

harmonic-design-hd-beam-series
  • Harmonic Design

Harmonic Design – hd Beam-Series

Harmonic Design® beamforming loudspeakers offer great potential for improving sound distribution in complex architectures and highly reverberant rooms. The goal is to focus the sound only on the listener’s surfaces, while shading areas that create unwanted reflections and disturbing room resonances. This leads to a much better speech intelligibility and a first-class listening experience for speech and music performances down to the last rows. Furthermore, the Beamforming technology, which offers a wider range of functions than just Beam Steering, enables unobtrusive positioning of the speakers even in less ideal locations for flexible adaptation to the most diverse requirements.

Beamforming Technology

  • 2In/32Out High-End hd BeamDSP
  • redundant input section with fallback algorithm
  • analog & digital inputs with Dante®
  • AdvancedDirectivityOptimization Algorithmus
  • 384 Taps FIR filter per input/output
  • 16x IIR filter (double precision) per input/output
  • modular equipping in segments of 8
  • 75W Class-D amplifiers with digital input for best SNR
  • ImpedanceControl with fault detection
  • multistage Limiter-Architecture
  • hd LevelZ Remote control software via USB
  • standard colors: black RAL 9005 & white RAL 9010

Models:

  • hd ML8Beam
  • hd ML16Beam
  • hd ML24Beam
  • hd ML32Beam
  • hd PL8Beam
  • hd PL16Beam
  • hd PL24Beam
  • hd PL36Beam
    Speakers
See the product
CS8D
  • DMIX

DMIX – CS-8D

Dante Network Transmission

Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.

PoE power supply

Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.

Technical parameters：

Speaker model: CS-8D

Unit configuration: 8"(200mm) Speaker unit，1" Tweeter

Frequency range: 100Hz-18kHz

Rated power: 60W

Sound pressure level: 112dB

Sensitivity: 93dB

Coverage Angle: 100°×100°

DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment

Connection mode: RJ45 interface

Product size (mm) : 281×247(Ф×H)

Opening size (mm) : Ф245

    Speakers
See the product
alpoeset2
  • Aimline

AIMLINE – AL2.0PoE Set

The AIMLINE PoE series includes column loudspeaker with an integrated power amplifier that uses Power over Ethernet (PoE +). There is no need for any additional power supply. Thanks to highly efficient power electronics and a specially developed power amplifier an output of 30 W / 60 W peak (when using a PoE+ supply) can be achieved. The AL2.0PoE set consists of a pair of speakers. An active and a passive one. Each equipped with two 4 "drivers. Two DANTE channels are available with 10-Bd IIR filters, delay and the 24 internal presets offer all necessary configurations.
