Product Information

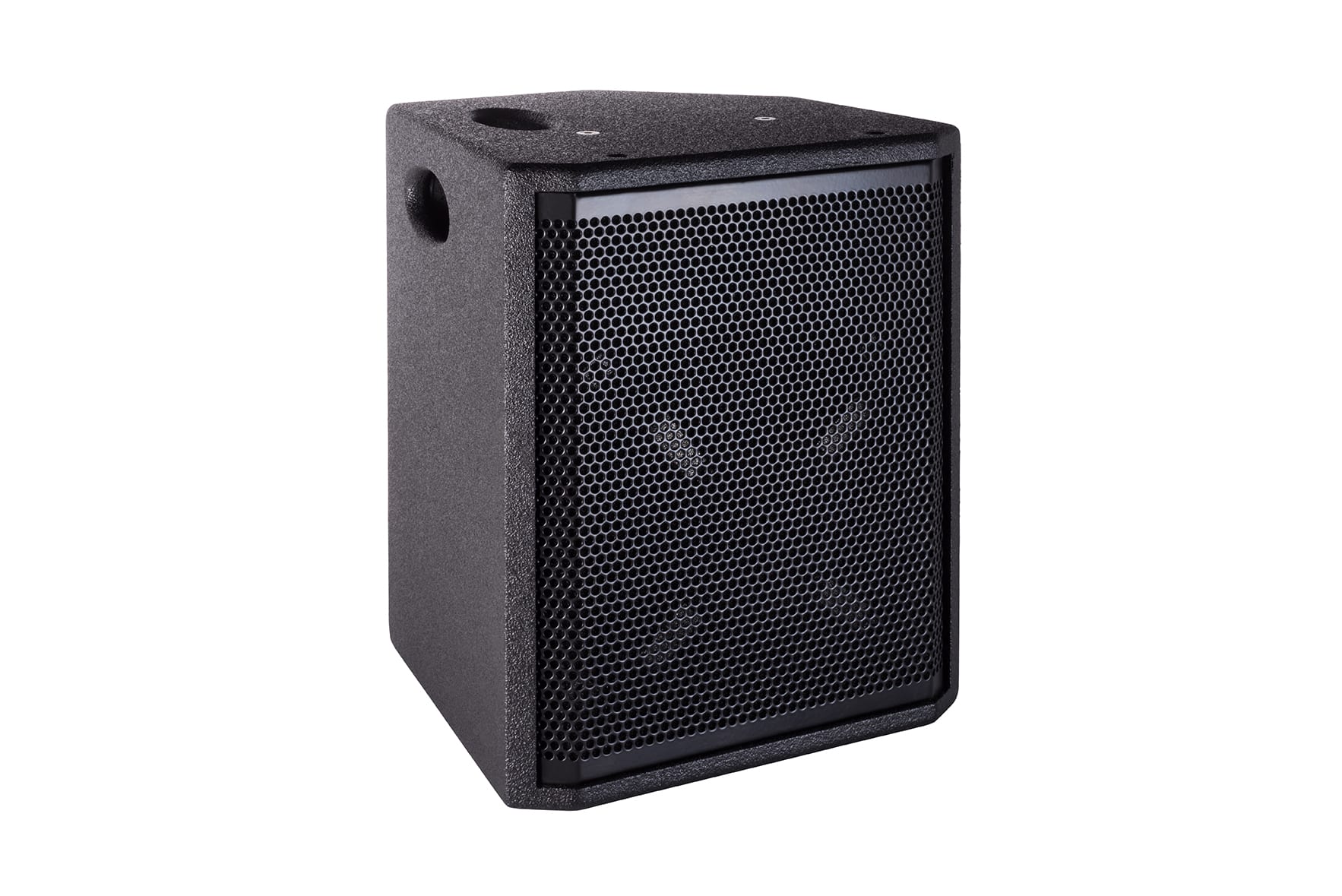

Compact coaxial wide-aperture speaker, Dante™ processed, PoE+ • Last generation 60W class D amplifier board with integrated DSP • Wide and homogeneous directivity 85° x 85° • Wooden cabinet • Euroblock connector for use with external amplification • Cut-out cabinet for wedge applications • Well for coupling with SPIK SUB ( with SMP tube) • Remote volume control, bass, treble via FRENETIK Adjust software • Board temperature monitoring • No logo on front panel
Technical data:
Type: Amplified 2-way coaxial loudspeaker,Dante™ PoE+
Power (passive mode): 100 W (8 ohms)
Amplification: 60 W (classe D)
Dante™ Receiver: 1 (16 / 24 / 32 bit – 44.1 à 96 kHz)
Transducers: 1 x 6″ woofer / 1 x 3″ tweeter
Peak SPL capacity (1 m): 114 dB
Bandwidth (-10 dB): 75 Hz – 18 kHz
Directivity (H x V): 85° x 85°
Input connectors: 1 x RJ45 (Dante™ active mode) + 1 Euroblock (passive mode)
Wedge applications: yes
Pole mount: 35 mm
Power supply: PoE+ (IEEE 802.3 at)
Dimensions: 304 x 248 x 236 mm
Weight: 6.00 kg
