Product Information

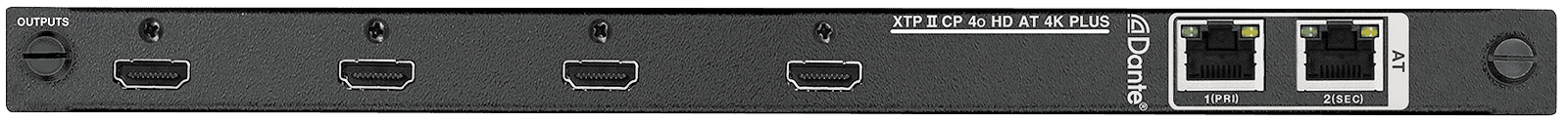

The XTP II CP 4o HD AT 4K PLUS is an XTP® output board with four HDMI and Dante digital audio outputs. Dante digital audio output enables audio transport of up to four stereo audio signals over a network using standard Internet protocols.
The XTP II CP 4o HD AT 4K PLUS is an XTP® output board with four HDMI and four Dante® digital audio outputs. It is HDCP 2.2-compliant and accommodates data rates up to 18 Gbps for support of video resolutions up to 4K/60 with 4:4:4 color. The Dante output adds the capability to take any four stereo audio signals that are routed through the XTP system and transport them as Dante audio over a network using standard Internet protocols. This XTP output board also supports AES67, along with Audinate® Dante Controller and Dante Domain Manager software. Paired with Extron’s many Dante-enabled audio processing products, the XTP II CP 4o HD AT 4K PLUS board facilitates convenient expansion of XTP Systems as part of a complete networked audio system solution.
Specifications
- Dante Ch: 0x32
- Bit Depth: 24-bit
- Sample Rate: 48kHz
- AES67 Enabled
