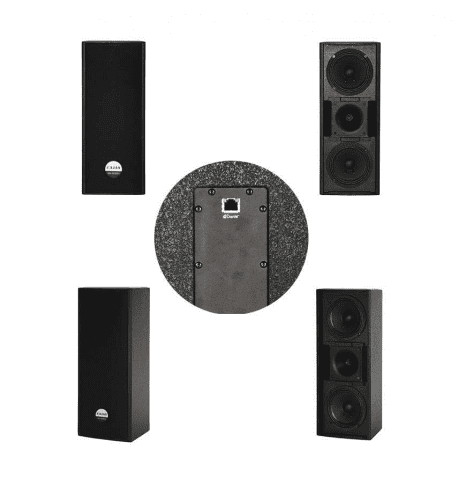

The MA602 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The MA602 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The speaker uses the Dante digital audio interface and the POE network to power the power amplifier module. Only one network cable is needed to supply the audio signal and power simultaneously.
Dante数字音频传输技术，无压缩、无损耗、极低延时；以网络IP化架构设计，实现网络化、数字化，具有传输距离远、无干扰及低损耗等特点；集网络传输、纯数字功放的全频音箱。以太网供电和音频数据传输整合，实现线缆布局简单化，且符合以太网工程规范；具有高效率高声能输出、出色的音质、完善的保护功能和良好的电磁兼容特性；自带DSP网络有源音箱可在PC端远程对有源音箱的EQ、喇叭两端电压、电流进行监测控制；具有完善的保护功能（短路保护、过流保护、过欠保护、直流保护、功率压限、温度压限、长期输出功率限制、削波限幅器；免去了AP插座和适配器，使工作环境更安全整洁；设备移动方便，可移到任何有局限网线的地方可使用；以网络IP化架构设计具有高扩展性和音频组网能力。
Speaker model: CX110P
Speaker type: 10”Active coaxial loudspeaker
Unit configuration: LF: 10" unit 2"(50mm）Voice coil
HF: 1.7"（44mm）Voice coil driver
Frequency response: 75Hz-17kHz(-10dB)
Rated power: LF: 160W， HF: 40W
Sensitivity: LF: 95dB， HF: 105dB
Sound pressure level： 124dB (peak)
Radiation Angle: 90°×90°
Crossover point: DSP control
Size (mm) : 480×332×340 (W×H×D)
Module amplifier power: HF：100W，LF：500W (Class D)
Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output
Module DSP control: RS485、USB 或 Dante
