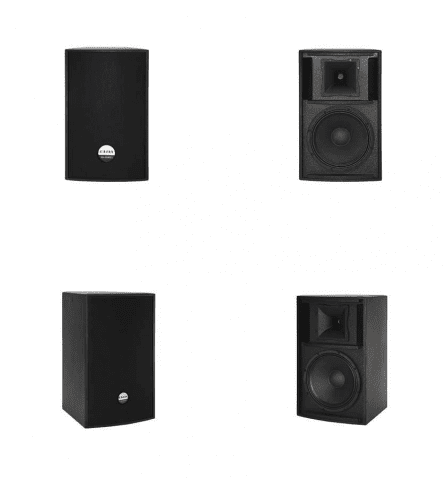

The MA1201 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The MA1201 is a coaxial full-range speaker with network transmission and a pure digital power amplifier.
The result of years of development, the MA1201 is a pioneer in speaker technology. Through the implentation of Dante technology, this speaker recieves both power and audio through a single cat 5e cable.
The FLEX6 loudspeaker is the only professional multipurpose audio product available worldwide on the market, useable for a variety of applications. Because of its multipurpose way of deployment, this 1.300W RMS powered speaker can be used in several ways. Put the FLEX6 on a pole, stack it and create a column array, fly it as a line array up to sixteen cabinets, put two horizontally on a pole in a sub-top combination, etc. Why would you buy different types of loudspeakers if you can do all the jobs with one multi-functional speaker? The FLEX6 is the most efficient and versatile product for all your future jobs!
Invest in AED Audio FLEX6 and you can create all these setups by using only one single type of speaker. Supply all your rental jobs from one to 5.000 people by only investing in one system. This is the future of efficiency. AED Audio will provide you with the maximum return on investment
The CA124 beam forming array module combines a comprehensive package in all relevant disciplines without compromise. With the CA124, even at most demanding and complex sound installations can be realized. The combination of mapping optimization and direct array definition is the most comprehensive and powerful loudspeaker management system on the market. The CA124 is a selfpowered 2-way high-end beam forming array loudspeaker, which features 12 x 4" wideband woofers and 36 x 1" dome tweeters. Due to the fully integrated connection hardware, the column can be stacked to realize larger systems with up to 14 meters of acoustic length. With the small source distances, the beamforming capabilities of the column are excellent even at very high frequencies. Internally, one CA124 has 48 amplifier and 48 DSP channels. The CADAC DSP-core module platform is integrated with the amplifier section into the loudspeaker. Cabinets are electrically connected by the CADAC C-Link audio and command interface. The CCP control and prediction software can connect to the array via LAN for command and control, Auto-EQ and to calculate sound prediction on listener areas. With the CMAP (mapping optimization mode), the vertical dispersion can be adjusted and optimized according to the listener area.
The digitally controlled line arrays Ascolto® are equipped with high-quality 3,5” neodymium loudspeakers, capable to spread perfectly voice as well as sound instruments. They can handle higher power applications, delivering great tone at any volume levels. Each Ascolto® digital line array contains a set of custom-designed, fully-programmable 135-MHz, 48-bit DSPs where high precision 76-bit accumulators ensure the bit resolution for a total quality in digital audio processing such as beam filtering and audio equalization.
The Ascolto AH3235 is unique for its acoustic directivity, extremely selective and capable of reaching deep space. The Ascolto AH3235 is particularly suitable to ensure an extended coverage in large environments, where it needs simultaneously a very incisive beam and a bright tone.
Ascolto AH3235
enhances the quality of the sound;
improves environment with acoustically difficult characteristics;
focuses the sound energy directly to the public, minimizing the effects of the sound
reflections of the ceiling and the side walls;
fulfills all aesthetic and architectural requirements;
distributes capably audio in cathedrals, churches, mosques, theaters, auditoriums, airports,
railway stations and in general everywhere it is necessary acoustic precision and reliability.
The digitally controlled line arrays Ascolto® are equipped with high-quality neodymium loudspeakers, capable to spread perfectly voice as well as sound instruments. They can handle higher power applications, delivering great tone at any volume levels. Each Ascolto® digital line array contains a set of custom-designed, fully-programmable 135-MHz, 48-bit DSPs where high precision 76-bit accumulators ensure the bit resolution for a total quality in digital audio processing such as beam filtering and audio equalization.
The Ascolto AH3235 possesses the innovative Anti Reverberation System ARS®, capable of increasing the voice intelligibility in reverberant environments. ARS conveys uniformly acoustic energy on the lower part of the audio beam and reduce drastically the audio emission upwards, attenuating significantly the acoustic reflections related to ceilings.
AVE Line Array User Control® is a sophisticated software application that uses a complex proprietary algorithm to calculate accurately SPL distribution of Ascolto® Digital Line Arrays from their EASE® models. It allows the user to select the appropriate dispersion pattern and transfer aiming and filtering parameters to the digital line array through the dedicated network.
The AVE IRC Infrared Remote Control lets you control the configuration settings even if a host computer is not available.
The AH3235 is optionally available with Dante card. Thus the AH3235 can be integrated in an existing speaker system or in a Dante network.
