YUAN’s AV over IP solutions are designed to support various video and audio transmission protocols. From 1G to 25G, you can find solutions coming in different input interfaces and different number of channels. All product lines are supported with a same SDK package, users can switch their solutions fluently between X86 and ARM based SoC solutions.
MondeF 4-zone network audio server (Dante®) for professionally streaming Dante® audio data. Equipped with 4 Dante® outputs, 8 Dante® inputs. The server is completely pre-configured with MondeF software, drivers and the Audinate Dante® software for use with Dante® audio products.
The installed software includes Internet radio (120 channels max. simultaneously), announcement feature, (programmable) alarms/announcements, scheduling, playlists etc.
Furthermore, the server provides a variety of connection facilities, such as USB (4 x), RJ45 network connection, HDMI™ output and DisplayPort for connecting up to 2 optional monitors or touch screens, thus allowing for a convenient operation of all network components.
MondeF 4-zone network audio server (Dante®)
4 Dante® outputs
8 Dante® inputs
Completely pre-configured, including installed software and drivers
Mini server, slim design, slimline plastic housing
Operating system: Windows 10 Professional, 64-bit version
Intel Celeron 3865U processor, 1.8 GHz, Intel HD610 Graphics, supports 2160p/60 Hz
Wireless LAN 802.11n, internal antenna
Can be mounted as a wall device/desktop device or directly to the rear side of a monitor/touch screen (VESA mount)
Supplied with power supply, supporting feet and VESA mount (75/100 mm)
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
MAGIC ACX Dante WAN Bridge is a Multi-channel PCM audio transmission system connecting Dante networks over wide area networks (WAN).
Up to 32 Dante channels can be transmitted via PCM16 or PCM24 for to for uncompromised signal quality.
The system takes care of the limited maximum latency of Dante in wide area networks and eliminates high jitter as well as possible clock differences between sender and receiver.
This guarantees reliable transmissions even for global connections.
Redundant GbE Interfaces and AES67 compatibility are available in the system.
Features

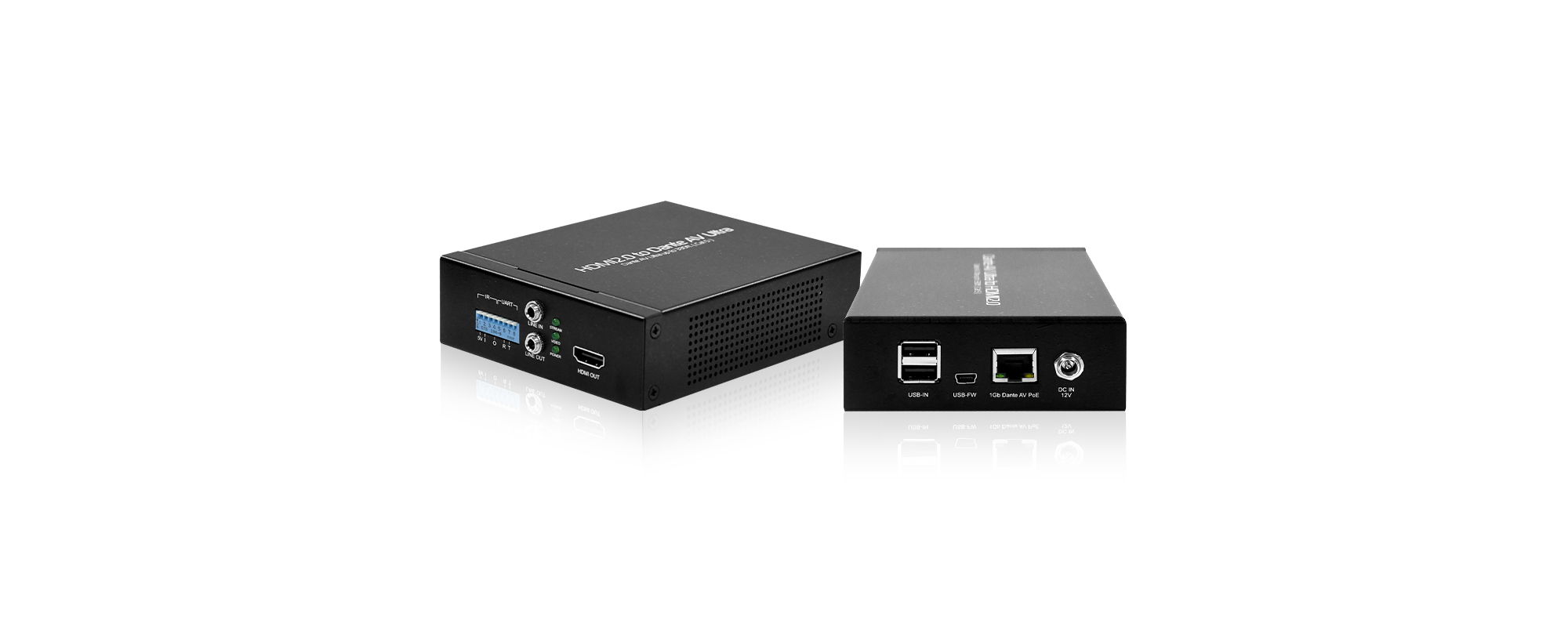

PacketAV® Duet has been nothing short of a paradigm shift for networked AV. True convergence; a single platform to support Dante™/AES67 and Video over IP. Building on their success and wide adoption, the next generation of PacketAV® Duet endpoints continue to provide powerful 4K UHD Video and Dante™/AES67 Audio – now over a single Gigabit Ethernet port, with USB-C connectivity and other enhanced features.
Visionary’s PoE 4K UHD over IP cinema quality, ultra-low latency [~1 frame - visually lossless], encoders and decoders bypass the constraints of traditional switch matrix distribution systems by continuing to harness the flexibility and scalability of converged IP networks.
With the growing demand for 4K UHD video, professional AV designers and IT directors – in an increasingly converged AV/IT environment – have been using Visionary’s products as an alternative to conventional distribution systems.
