CTP Systems – DPM802

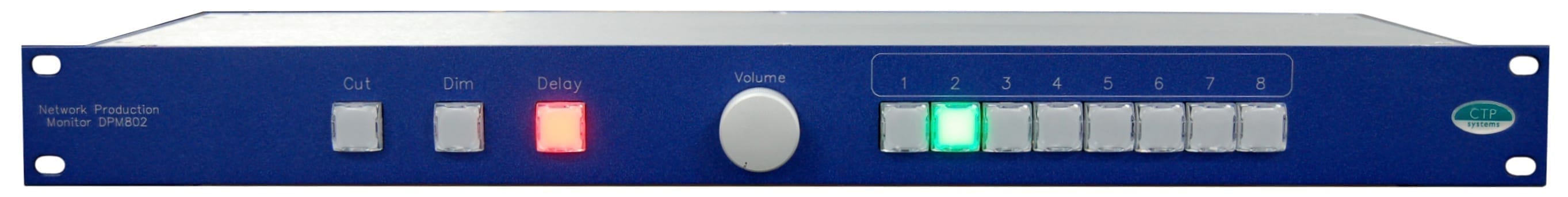

The DPM802 is a Dante enabled PoE Production monitor unit with eight Dante stereo inputs, one analogue stereo input and both Dante and analogue stereo outputs. The unit includes up to eight frames of programmable stereo delay plus cut, dim and a volume control.

The DPM802 is a Dante enabled PoE Production monitor unit with eight Dante stereo inputs, one analogue stereo input and both Dante and analogue stereo outputs. The unit includes up to eight frames of programmable stereo delay plus cut, dim and a volume control.

Long Product Description (150 words or less):

The DPM802 is a Dante enabled PoE Production monitor unit with eight Dante stereo inputs, one analogue stereo input and both Dante and analogue stereo outputs. The unit includes up to eight frames of programmable stereo delay plus cut, dim and a large volume control. There are two GPI inputs for remote control of cut and dim.

The DPM802 has many features that may be programmed via its web page including key colours, delay time, input gains and remote control of functions. For convenience of adjustment the delay time may also be set using just the front panel controls as well as via the web page.

The unit includes a redundant network connection which may alternatively be used as a network switch output. The Dante Outputs Left and Right are mirrored on the rear of the DPM802 as balanced XLR analogue outputs for convenient connection to a power amplifier. The two analogue inputs may be assigned to any of the select switches.

The unit may be powered by mains or PoE or both.
