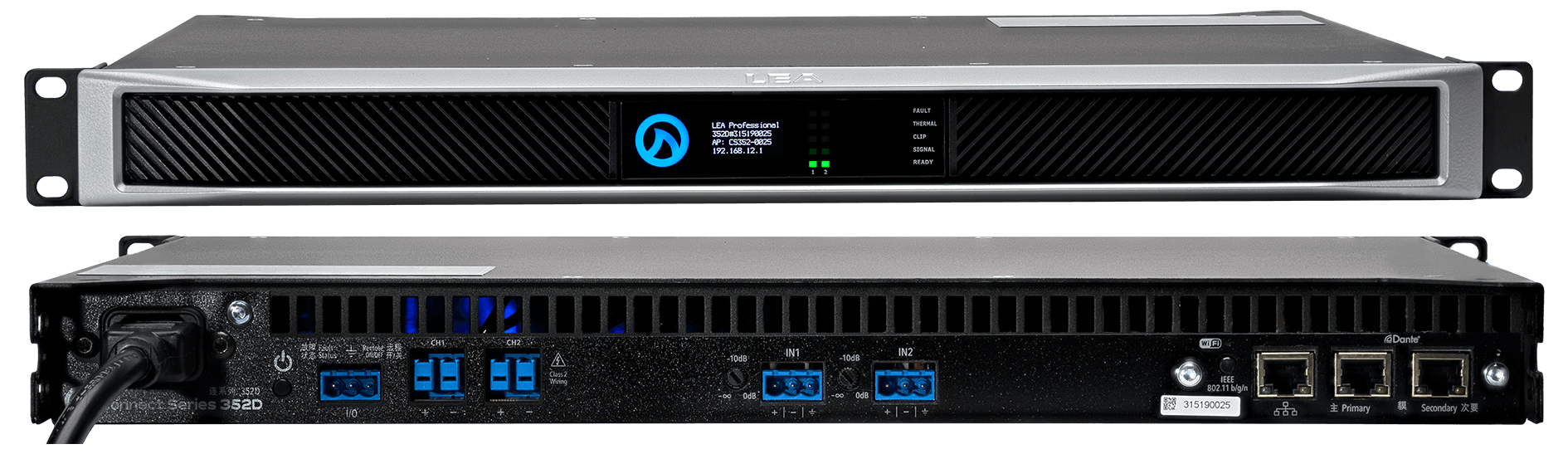

CS352D

Amplifiers

More details

Similar Products

JBL_SDA_7120_Front_Web
  • JBL Synthesis

JBL Synthesis – SDA-7120

The JBL Synthesis SDA-7120 delivers seven channels of dynamic class G amplification with modern networking capability, audiophile sound and exceptional flexibility.

The JBL Synthesis SDA-7120 delivers seven channels of dynamic Class G amplification with modern network capability, audiophile sound and exceptional flexibility. With 100 watts per channel (all channels driven), 0.002% harmonic distortion balanced and single ended inputs, RS232 and IP control as well Dante audio networking, the SDA-7120 is a splendid choice for a broad range of applications.

    Amplifiers
See the product
ashly-nXp-8002_600px
  • Ashly Audio

Ashly – nXp8002d

The nXp8002d is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit has 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
See the product
201982122246
  • BARE

BARE – WD60

    The network audio power amplifier integrates a two-way digital power amplifier module. Signal processing and power amplification are solved on one motherboard, which shortens the signal path and simplifies engineering wiring.

  • Built-in 2x600W / 8Ω (800W / 4Ω) digital power amplifier
  • Professional PC-side control software is easy to use, Ethernet TCP / IP online management, can manage every device in the system at the same time
  • ★ DANTE network audio technology, low latency without interference, without loss of smooth and full sound quality
  • Network dual backup, multiple devices can be connected hand in hand
  • ★ Automatic or manual network IP configuration, can be named independently for easy identification in the network
  • Automatic protection memory function in case of power failure
Output Power
Output power 8 ohms: 2x600W
Output power 4 ohms: 2x800W
Bridge mode 8 ohms: 1600W
Power amplifier
Maximum efficiency of 90% , two-channel digital power amplifier
Frequency Range
20Hz-20kHz
Signal to noise ratio
100dB / 95Db
Sensitivity
26dB / 1.4V / 32dB
Crosstalk
＞90dB
Damping coefficient
＞500
Voltage gain
40dB
Total harmonic distortion
＜ 0.1%
Voltage conversion frequency
＞70
Conversion time
＜1.5
Features
Input: 2 -way DANTE signal input
Protect power
Single channel: short circuit, DC output, low impedance; equipment: ultra low / high voltage, temperature, overload
Operation mode
Stereo, mono, bridged
interface
Input: 2 x RJ45      Output: 2 x XLR (up to)
Unit delay
<1.5ms
sampling
48k
Dimensions ( WxHxD ) mm
485x90x320mm
Weight ( kg )
6.6kg
    Amplifiers
See the product
