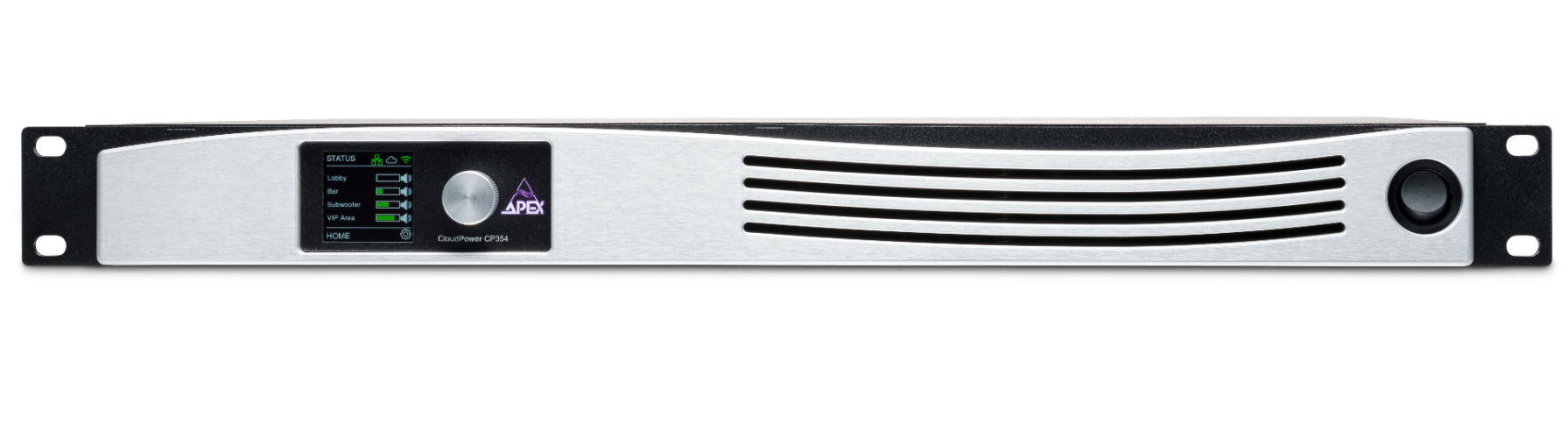

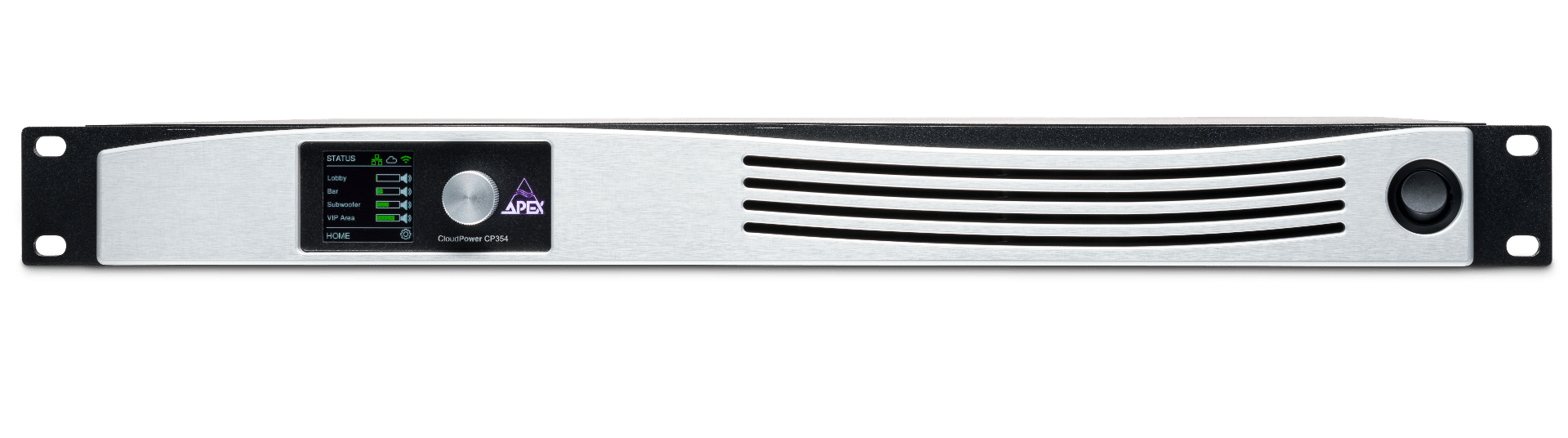

CloudPower CP354D

Amplifiers

More Details

Similar Products

vseries
  • RAM Audio

RAM Audio – V9000

RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).

 These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.

This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!

V9000 Specifications:

Power tableV9000
2 ohm2x4400W
4 ohm2x2300W
8 ohm2x1200W
Bridge 4 ohm1x8800W
Bridge 8 ohm1x4600W
High Z
100Vrms / 140Vpeak2x4400W
V9000
Frequency Response (power bandwidth ±0.25dB)20Hz – 20kHz
Phase Response (@1W 20Hz-20kHz)±15 deg
Total Harmonic Distortion (20Hz-20kHz)<0.05%
Intermodulation Distortion (SMPTE)<0.05%
Damping Factor (@8ohm)>500
Crosstalk (20Hz-1kHz)>80dB
Voltage Gain26 dB to 38 dB (0.5 dB steps)
Sensitivity (rated power 26/32/38dB Gain) 4.9/2.5/1.2V
Signal to noise Ratio (20Hz-20kHz) 115dB
Required
AC Mains		 90 V-265 V AC
Power On Idling (@230V)0.5A
1/8 rated power (@230V min. Z)10A
Dimensions (WxHxD)483×88.9x460mm – 19×3.5×18.1inches
Weight (Net) 12kg – 26.5lb
    Amplifiers
See the product
  • Biamp

Voltera – D-2400-4M

Audio DSP and amplified loudspeaker controller; 4 channels sharing 2400W with Dante and AVB. Key Features
  • Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
  • 4 class D channels sharing 2400 watts
  • Power sharing provides up to 75% of total power or 1800 W through any single channel
  • High peak voltage output capability: 160 Vpk
  • Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
  • Each model supports AVB, Dante, and AES67
  • Accurate raised cosine EQ for the entire frequency band
  • Group-controlled raised cosine EQ making it attractive for tuning large systems
  • Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
  • Processor can be sustained through POE – no main power required and no reboots
  • Support for failover-to-analog from networked audio input operation
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
  • Biamp Workplace Ready
    Amplifiers
  • Dante Ch: 32x32
  • 48kHz-96kHz
See the product
MNS-AMP260AC
  • MONISMS

MONISMS – MNS-AMP260AC

The MONISMS MNS-AMP260AC Dante Audio Amplifier is a compact power amplifier module that drives small 4-8Ω speakers (Ceiling Speaker, In-wall Speaker, Pendant Speaker Column Speaker etc.)  The MONISMS MNS-AMP260AC Dante Audio Amplifier is a compact power amplifier module that drives small 4-8Ω speakers (Ceiling Speaker, In-wall Speaker, Pendant Speaker Column Speaker etc.) The MONISMS Dante Amplifier has two outputs,  each with 30W of power into an 4-8Ω load, This makes the module ideal for powering small areas consisting of only a few low power speakers. The module's audio input is via an Ethernet audio network, allowing the use of the DANTE/ AES67 audio network protocol. MNS-AMP260AC MAX power 2*30W,  Which build-in AC 100-240V power module. Dante Audio Amplifier can be mounted on a DIN rail or screwed onto a panel or wall for easy installation in a remote closet near the speaker area.
    Amplifiers
See the product
