Product Information

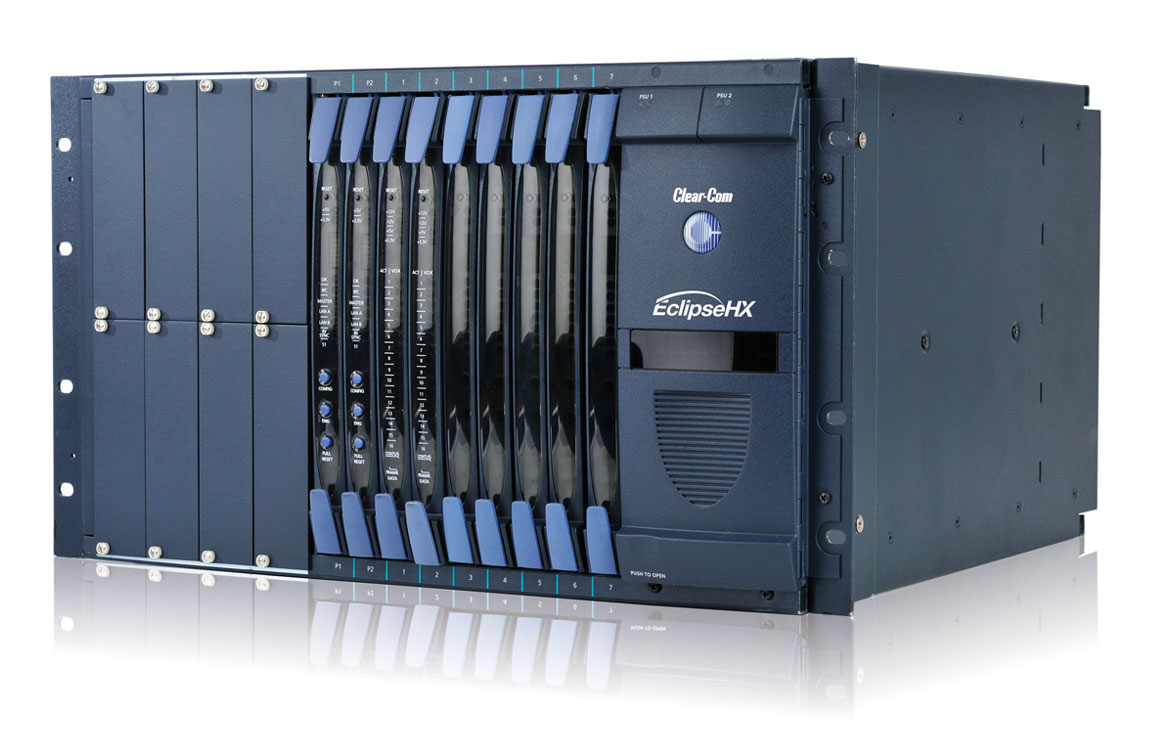

The Eclipse HX-Median is a 6RU frame that houses two CPU, seven interface card and eight interface module slots, uniquely designed for outside broadcast vehicles, mobile flight-case systems, or any production environment where rack space is limited.
The Eclipse HX-Median is a 6RU frame that houses two CPU, seven interface card and eight interface module slots, uniquely designed for outside broadcast vehicles, mobile flight-case systems, or any production environment where rack space is limited. Up to 15 Eclipse HX matrices can be connected to form a single networked platform. Up to 64 Eclipse HX matrices can be connected to form a single networked installation.
Eclipse HX-Median Features:
- 6RU system frame with passive back-plane, seven interface and eight interface module slots
- Up to 448 internal ports
- Dual-redundant CPU-HX fitted; dual-redundant power supplies fitted
- Expandable to become a multi-frame system with redundant non-blocking fiber
- Networking/Linking options include 4-wire, Fiber, IP, MADI, E1/T1, GPIO, DANTE and AES67
- Seamless integration with FreeSpeak II Wireless Intercom and IP Communication Panels
Specifications
- Dante Ch: 64x64
- Bit Depth: 24-bit
- Sample Rate: 44.1kHz, 48kHz, 96kHz
- AES67 Enabled
